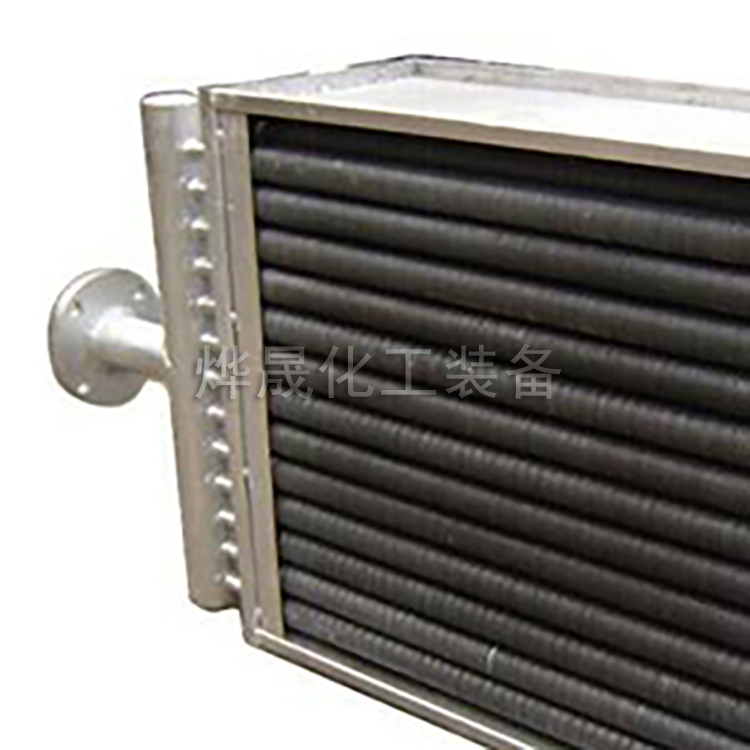

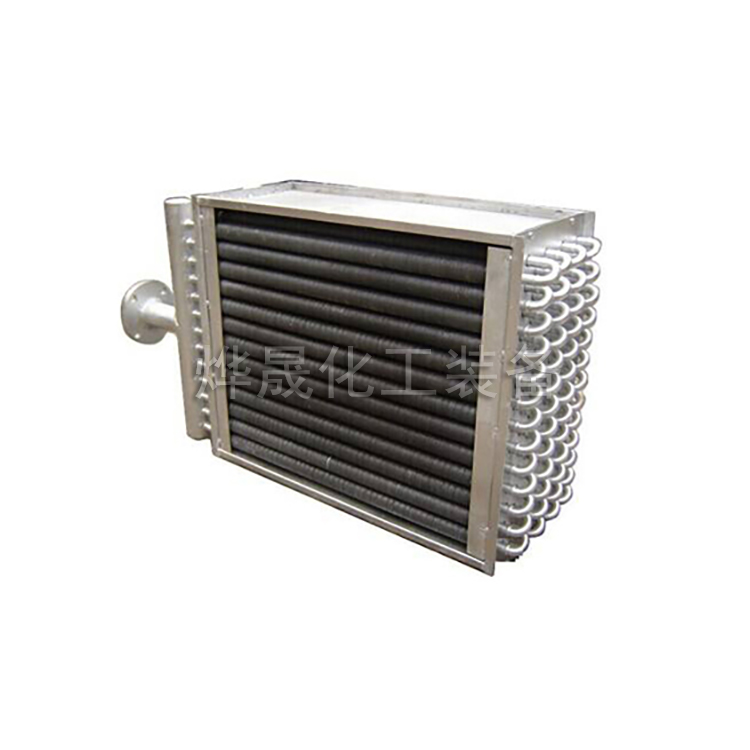

GLⅡ Type Steam Radiator

Product Overview
The GLⅡ type steam radiator is versatile, in other words, it can accommodate various applications for different users. We understand that this radiator serves as an air heater for heating air, suitable for both steam systems and hot water systems.
The GLⅡ type steam radiator is commonly used for air heating in heating, air conditioning systems, and drying equipment. It is a key component in hot air systems and has found extensive application in heating, ventilation systems of various large buildings in industrial and mining enterprises. It boasts a compact structure, attractive appearance, ease of installation, and convenient management. It is suitable not only for centralized air supply heating but also for local heating or other uses. Due to its small heat dissipation tubes and dense fins, it delivers excellent performance.

Features
1. The GLⅡ steam radiator features a steel double-loop (two rows) or multi-loop (four rows, six rows) structure. The heat dissipation tubes are made of Ф18*2mm seamless steel pipes, formed into a spiral shape by a specialized machine using 10*0.3mm corrugated steel strips. The fin spacing is 3.2mm, offering high pressure resistance and corrosion resistance.

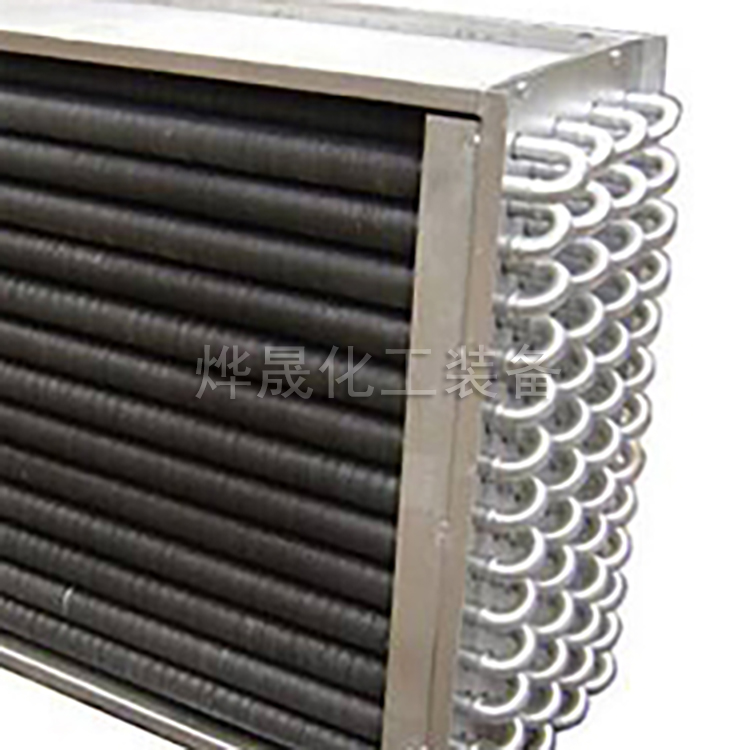

2. The GLⅡ steam radiator features a full cross arrangement of finned tubes, each connected by a separate bend tube.
3. GLⅡ Steam Radiator Tube Characteristics:
Thermal Dissipation Area: 0.64 m²/m
Ribbing Factor: 14.56
Rib Flow Coefficient: 15.8
Net Face Ratio: 0.53

GL II Type Coding Method
Model - Row Count - Number of Surface Tubes - Length of Surface Tubes (inches).
If using four rows, the surface tube count is 10, and the tube length is 42 inches, it would be referred to as GLⅡ-4-10-42.
Basic parameters of the GLⅡ type are shown in the table.

Basic Parameters Table
