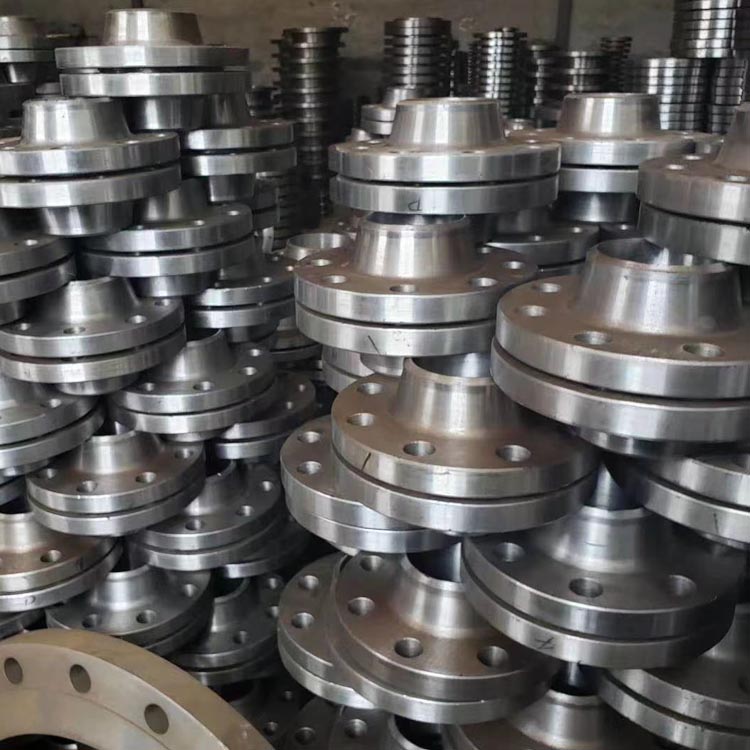

Flange, also known as a flange disk or boss, is a component used for connecting shafts or for joining pipe ends. It is also used at equipment inlets and outlets, such as reducer flanges, for connecting two devices. A flange connection or flange joint refers to a removable connection consisting of a flange, a gasket, and bolts, all interconnected to form a combined sealing structure. Pipe flanges are the flanges used in piping installations, and when used on equipment, they refer to the equipment's inlet and outlet flanges. Flanges have holes, and bolts secure them tightly together. They are sealed with a gasket. Flanges come in threaded (screwed) connections,焊接 (welded) flanges, and clamp flanges. Flanges are always used in pairs; low-pressure piping can use threaded flanges, while those above 4 kg of pressure use焊接 flanges. A sealing pad is placed between the two flange disks, and then bolts are used to tighten them. Flanges of different pressures have different thicknesses and require different bolts. Pumps and valves, when connected to pipes, have locally shaped flanges that correspond to these equipment components, also known as flange connections. Any connection piece that uses bolts to connect two flat surfaces and seal them is generally called a "flange," such as the connection of ventilation pipes. Such components can be referred to as "flange-type parts." However, this type of connection is only a part of a device, like the connection between a flange and a pump, so it's not appropriate to call the pump a "flange-type part." Smaller components like valves can be called "flange-type parts."
