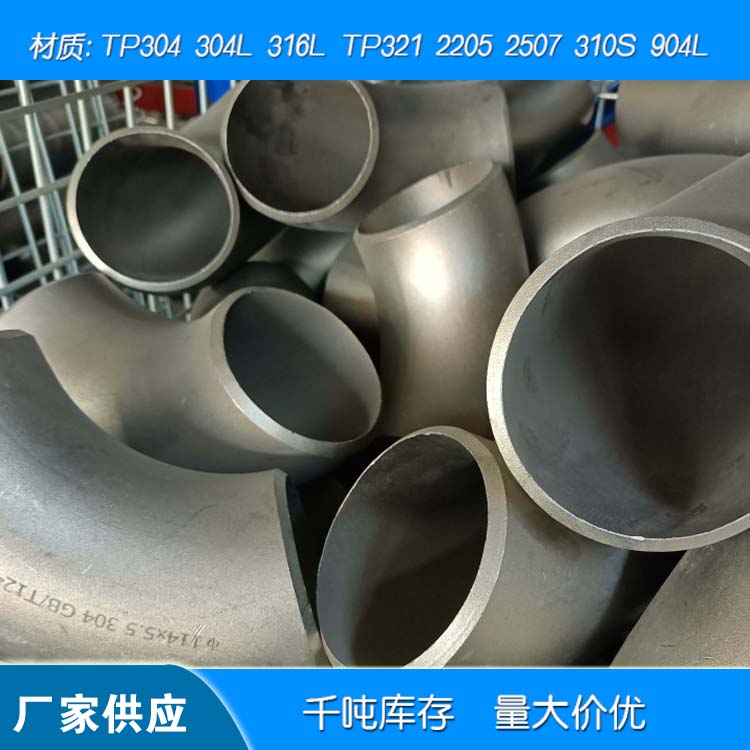

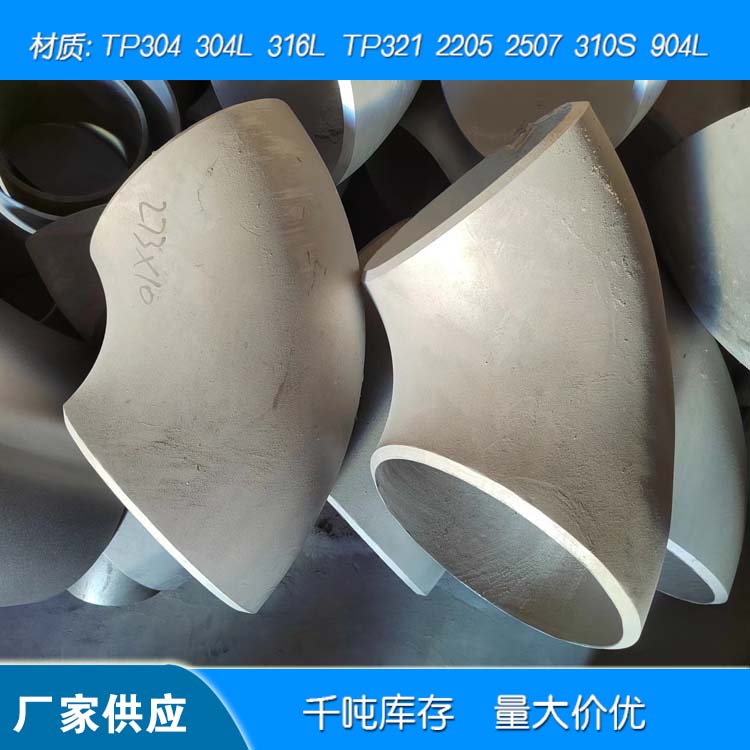

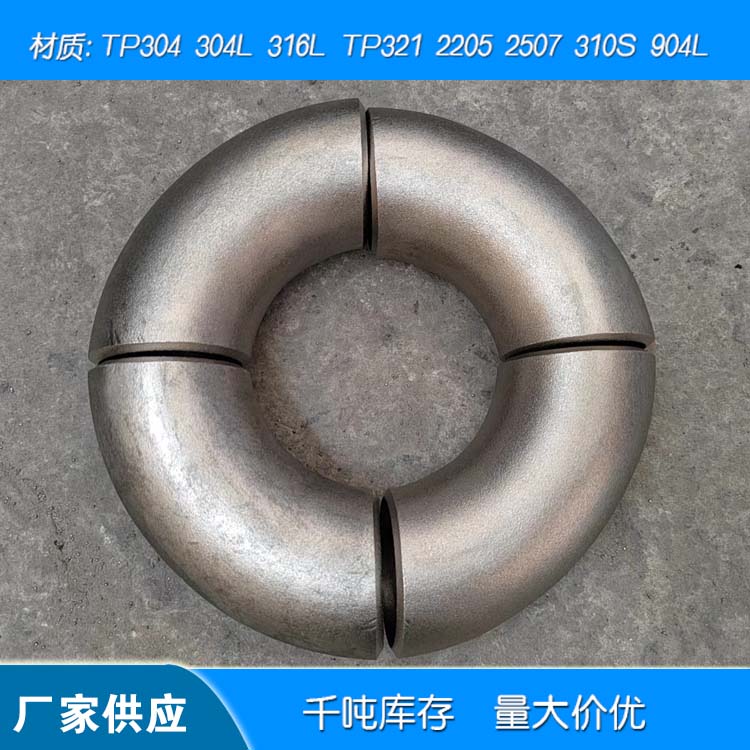

Bend classifications are based on their curvature radius, which can be categorized into long-radius bends and short-radius bends. Long-radius bends refer to those with a curvature radius equal to 1.5 times the pipe's outside diameter, denoted as R=1.5D. Short-radius bends have a curvature radius equal to the pipe's outside diameter, R=D. In the formula, D represents the bend diameter, and R is the curvature radius. In terms of pressure ratings, there are approximately seventeen types, which align with U.S. pipe standards, including: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS, with STD and XS being commonly used. By bend angle, there are 45° bends, 90° bends, and 180° bends. This results in a wide variety of bend types. When placing an order, the order often specifies the type as follows: for example, "LR STD 90° 8" indicates a long-radius bend with a STD pressure rating, a 90° angle, and an 8" diameter; or "SR XS 45° 4" denotes a short-radius bend with an XS pressure rating, a 45° angle, and a 4" diameter. The above outlines the general classification of bends.
