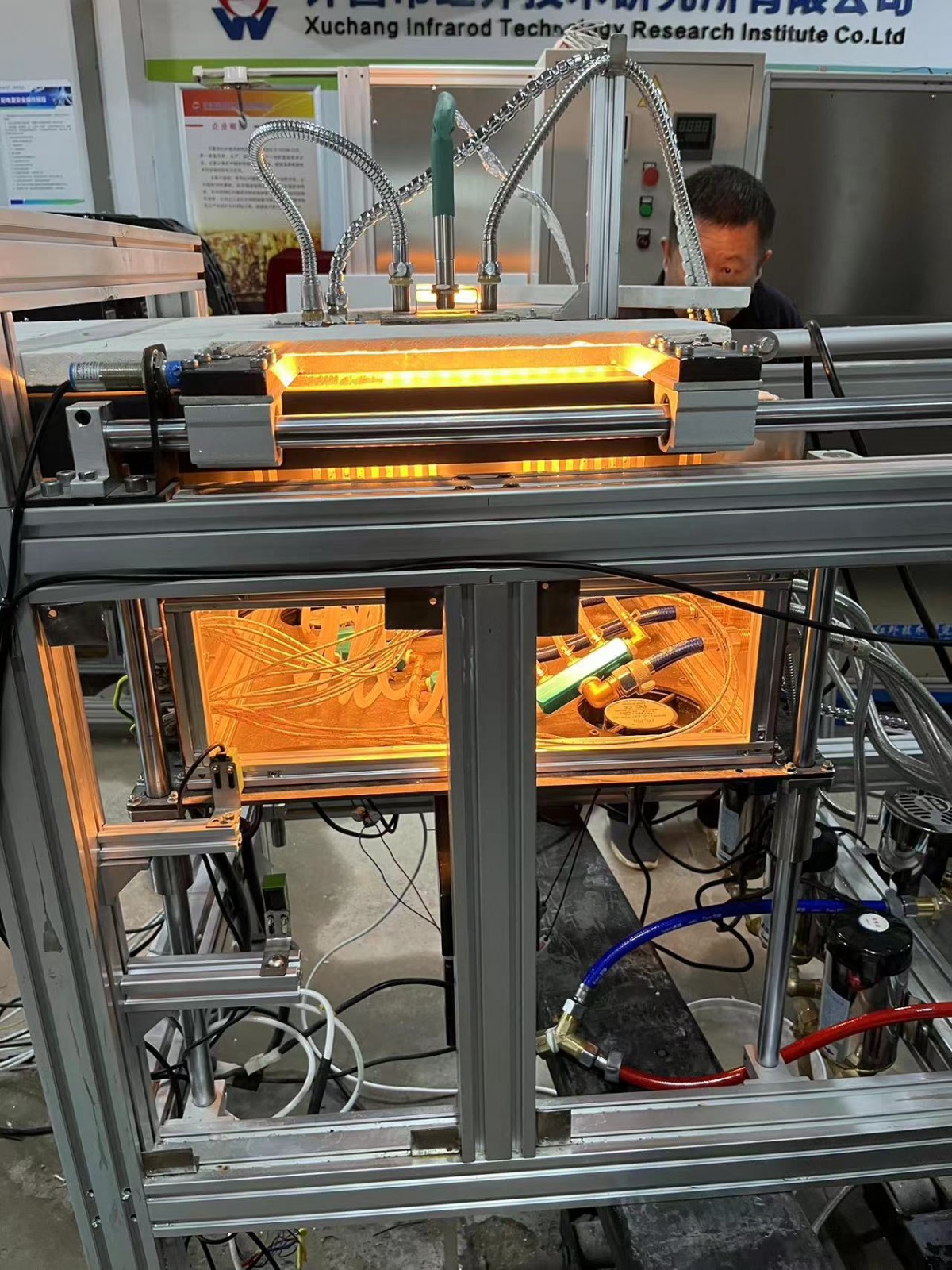

Infrared radiation new material experimental heating equipment

The Xuchang Infrared Technology Research Institute Co., Ltd. is located on Yongxing East Road, Xuchang Economic and Technological Development Zone (Zhongyuan Electrical Valley), Henan Province. Its predecessor was the Xuchang Infrared Technology Research Institute and it is currently one of the influential infrared heating research institutions in China.Infrared Radiation New Material Experimental Heating EquipmentBy utilizing infrared radiation on objects, the objects absorb the infrared radiation and convert it into heat energy, thereby being heated. Infrared is a type of electromagnetic wave. It is located beyond the red end of visible light in the solar spectrum and represents an invisible form of radiant energy. In the electromagnetic spectrum, the wavelength range of infrared radiation is0.75~1000Between micrometers, the frequency range is3×10~4×10In industrial applications, infrared spectroscopy is often divided into several bands.:0.75~3.0Micrometers for near-infrared region;3.0~6.0Micrometers in the mid-infrared region;6.0~15.0Micrometers for the far infrared region;15.0~1000Micrometers represent the far infrared region. Different objects have varying abilities to absorb infrared radiation, and even the same object may have different absorption capabilities for infrared radiation of different wavelengths. Therefore, when using infrared heating, it is necessary to select an appropriate infrared radiation source based on the type of object being heated, ensuring that the radiated energy is concentrated within the absorption wavelength range of the heated object to achieve optimal heating effects.Infrared Radiation New Material Experimental Heating EquipmentInfrared heating is a special form of resistance heating, utilizing materials like tungsten, iron-nickel, or nickel-chromium alloys as radiators to create a radiant source. Once powered on, it generates heat radiation due to its resistive heating. Common electric infrared heating radiators include lamps.(Reflective)Pipe(Quartz tube)With board pattern(Flat type)Three types. The lamp type is an infrared bulb, with a tungsten filament as the radiant body.,Tungsten wire sealed within a glass shell filled with inert gas,Like a standard light bulb. The radiator heats up when powered on.(Lower temperature than standard light bulbs),Thus, emitting a large amount of wavelengths1.2Approximately micrometer-sized infrared radiation. If a reflective layer is applied to the inner wall of the glass shell, the infrared radiation can be focused towards one direction. Therefore, the infrared radiation source in lamp type is also called a reflective infrared emitter. The tube-type infrared radiation source is made of quartz glass, with a tungsten filament in the center, hence also known as a quartz tube infrared emitter. The wavelengths of the infrared radiation emitted by the lamp and tube types are0.7~3Within the micron range, the working temperature is lower, generally used for heating, baking, and drying in light and textile industries. The radiation surface of the plate-type infrared radiation source is a plane, composed of flat resistive plates, with a material with high reflectivity coated on the front side of the plates.,The reverse side is coated with a material of low reflectivity.,So most of the heat is radiated out positively. The working temperature of the plate can reach1450Above 500°C, suitable for annealing welds in steel materials, large-diameter pipes, and containers. Due to the strong penetration ability of infrared rays, they are easily absorbed by objects and, once absorbed, are immediately converted into heat energy.;Infrared heating experiences minimal energy loss before and after heating, allowing for easy temperature control and high-quality heating. As a result, the application and development of infrared heating is advancing rapidly. Xuchang Infrared Institute will continue to maintain its R&D efforts in infrared radiation heating technology to enhance anqEfficiency, reliability, and system lifespan, providing for you,zPure infrared heating technology solutions.
