The Xuchang Infrared Technology Research Institute Co., Ltd. is located on Yongxing East Road, New Technology Development Zone (Zhongyuan Electric Valley) in Xuchang, Henan. It was formerly the Xuchang Infrared Technology Research Institute and is currently one of the influential infrared heating research institutions in China.
I am from1979Year10Since its establishment, adhering to the guiding principle of "highlighting strengths, rigorously focusing on quality, and strengthening services." With strong technical capabilities, a high-quality workforce, and a spirit of innovation, the Xuchang Infrared Institute has developed and produced a series of pioneering infrared products. Main products include: a series of infrared radiation (absorption) coatings, infrared heating elements, infrared radiation heating modules (plates), infrared radiation heating furnaces (boxes), rapid infrared radiation heaters, a series of high-end infrared heating experimental equipment, and a series of infrared heating controllers, etc., and provides customers with24Hourly infrared radiation heating technical services are provided. The company has been honored with titles such as "Excellent Energy-saving Technology Research Center" and "Innovation Leading Unit."
I. Introduction to Xuchang Infrared Ceramic Heating Elements The Xuchang infrared ceramic heating tile assembly uses embedded far-infrared ceramic tiles as the heating source, mounted inside stainless steel plate frames and evenly distributed. The temperature probe is also bonded inside the far-infrared ceramic heating panel for accurate surface temperature measurement during heating. When the far-infrared heater is powered on and operational, it quickly reaches the set temperature in a short time. A layer of zirconia coating烧结 on the surface of the ceramic heating tile, upon heating, undergoes molecular vibration at high temperatures, generating far-infrared waves. These waves' wavelengths enhance the movement of volatile substances and water molecules on various surfaces, leading to rapid decomposition. This results in the surface of the heated material achieving curing and drying effects within a short time frame. It is safe, reliable, and environmentally friendly, widely used in industries such as paint drying, food dehydration, curing of胶质coatings, drying and shaping of vacuum-formed automotive interiors, and more, offering ideal energy-saving effects and usability.

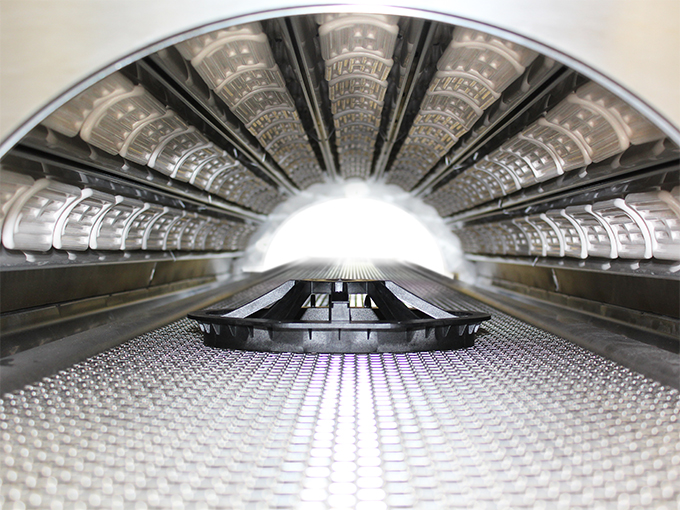

Two, the Xuchang infrared ceramic heating element structural ceramic heating tile device involves installing the far infrared ceramic heating tile in a structure by...7Within a radiation device consisting solely of a reflector housing, several ceramic heating tiles are installed as the heat source, with the total power of the heating tiles being25.2KWHeating tiles are installed in sequence.7Within the reflective cover, the heating element is installed in a ceiling-mounted horizontal manner. The heating element features a hollow structure, meaning its internal structure is hollow. The hollow layer serves to prevent the transfer of heat from the heating element to the base. This design improves the heat efficiency of the heating element compared to a single-piece model, making it more energy-efficient. The reflective cover concentrates the thermal energy emitted by the ceramic heating element and radiates it directly onto the surface of the heated object. This not only achieves the effect of far-infrared heating but also converts the heat emitted by the heating element directly into radiant heat, thereby saving energy and reducing the heating time for the object. To ensure a uniform and safe drying effect on the heated object, the side of the reflective cover is equipped with a set of manually operable baffles. During the warming-up stage and when exceeding the temperature, the baffles can be set to automatically close. Once the required process temperature is reached, the baffles automatically open to heat the object.
Section 3: Main Technical Parameters of Infrared Ceramic Heater1Work surface dimensions:1250x730Please provide the Chinese content you would like translated into American English.xWidemm2Heating Power:25.2KW
3Operating Voltage:380V/220V 50Hz4Ceramic heating element power:400W—800W5Temperature Range: -550℃
6Temperature Control Accuracy: ±2℃7Thermistor: Scale numberK
Four: Usage Instructions and Electrical Control
1The radiation device is integrated with mechanical and electrical control. An external control cabinet is paired with the infrared unit, equipped with a control panel.4Only current meters, two temperature controllers, one intelligent voltage controller, and two temperature control meters: the one on the left is the main temperature measurement and control, and the one on the right is the over-temperature protection temperature measurement and control. This way, when one set of temperature controllers fails and overheats or loses control, the other set will act as a protective measure. This prevents the instrument from affecting production due to temperature loss of control during use.
2When manually controlling the infrared temperature, first turn the selector switch to the manual position, the meter switch, and the damper switch to the off position. Then, turn on the heating switch, and the heating element begins to power up and heat up. Once the set temperature is reached, switch the damper switch to the on position, and the infrared heating device will soon enter operation.
3During automatic infrared control tasks, set the selector switch to the automatic position, adjust the timer relay time inside the control box (this time refers to the time needed when heating to the set temperature in manual control), turn on the meter switch, then turn on the heating switch. You will soon enter the automatic operation program. When the set temperature is reached, the shutter will open automatically and enter the working state.
The Xuchang Infrared Institute will continue to focus on the research and development of infrared radiation heating technology to enhance safety, efficiency, reliability, and system lifespan, providing you with genuine infrared heating solutions.
