Each single-pole disconnect switch consists of a base, two insulating pillars, a terminal block, left and right contact assembly, and a grounding blade, among other components.

2. The connection between the touch fingers and their sockets is via an axis socket, and the wiring board is connected to the touch rod with a copper flexible connection, significantly reducing the main circuit resistance of the product.

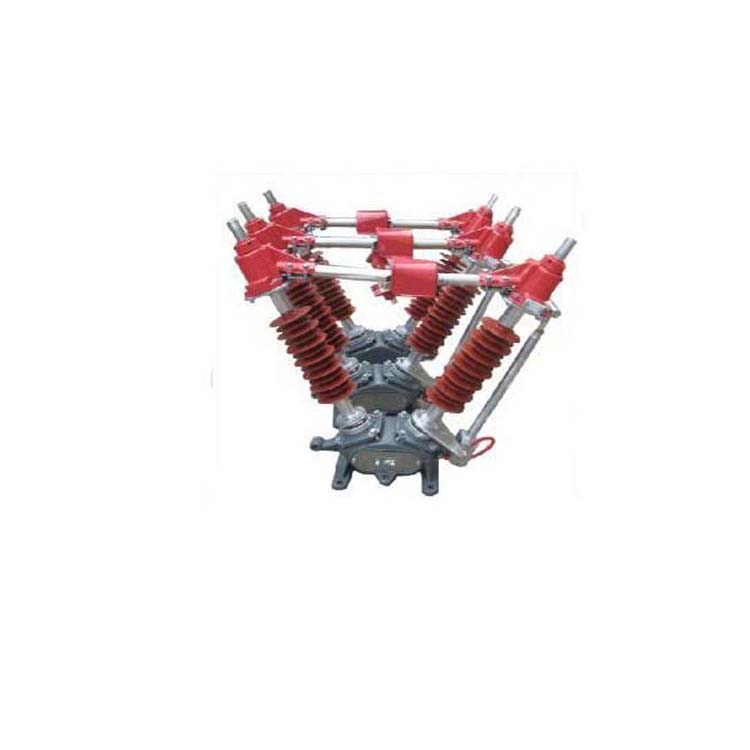

3. The two pillar insulators are installed on the same base in a "V" configuration, offering the advantages of a small footprint and reduced need for metal framework installation.

4. Utilizes a roller shaft drive for effortless operation, smooth rotation, and easy opening and closing.

5. The operation of the two poles' opening and closing is synchronized through the rotation of the bevel gears.

6. The two pillar axes intersect at a 50-degree angle, with a rotating angle of up to 90 degrees. After the switch is separated, there is sufficient insulation isolation gap, thereby enhancing its safety.

7. The driving base of the operating mechanism moves the swing arm and the pull rod, respectively, to synchronize the rotation of the two pillar insulators, thereby achieving the operation of opening and closing the switch.

8. The product features three grounding methods: non-grounded, single grounded, and double grounded. There is a reliable mechanical interlock between the main shaft and the grounding, ensuring its safety.

9. Compatible with CJ2 automatic operation mechanisms or CS-17G manual mechanisms, electromagnetic locks can be attached. The positioning device on the operation mechanism ensures that the contacts are in the correct contact or break position.
