Manufacturer Supplies DZSJ-ABA Type Three-Layer Co-extrusion Twin-Head Blowing Molding Machine

价格￥10000.00

最小起订1 Tai库存999 Tai

Business Card

Your company's名称Zhejiang Deqi Machinery Co., Ltd.
联系人陈用龙（先生）
Your company'sPhone13958877885
Mobile号码13958877885
Company Address785 Weiyi Road, Nanbin Street, Ruian City, Wenzhou, Zhejiang Province

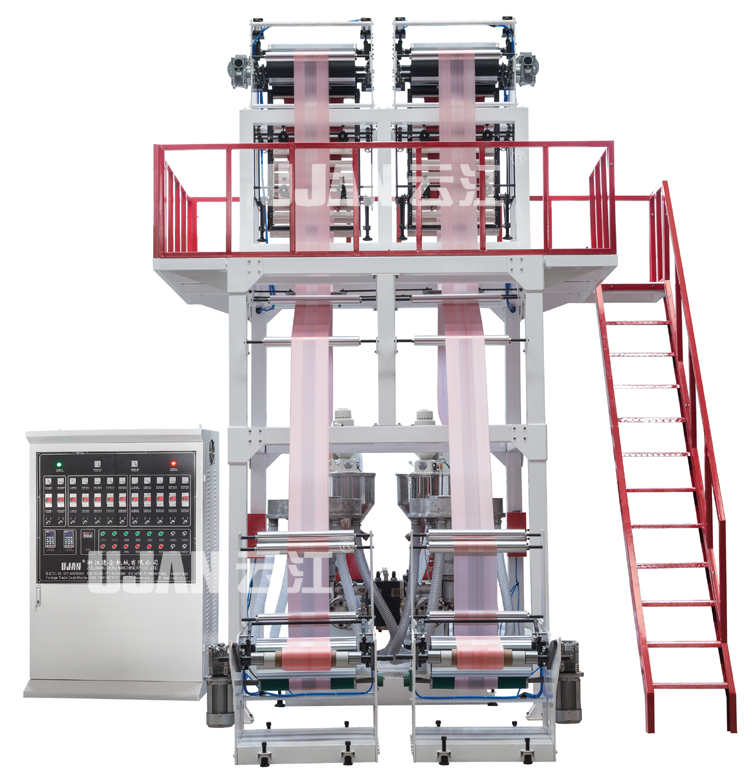

DZSJ-ABA500X2-600X2-700X2 Three-layer Co-extrusion Twin-blade Blowing Molding Machine

Main Technical Parameters:

Specification Model	DZSJ-ABA500x2	DZSJ-ABA600x2	DZSJ-ABA700x2
Applicable Materials	LDPE –LLDPE- HDPE	LDPE- LLDPE- HDPE	LDPE- LLDPE -HDPE
Product Width	400	500	600
Product Thickness	0.015-0.12	0.015-0.12	0.015-0.12
Large extrusion capacity	80kg/hr	90kg/hr	100kg/hr
Extruder
Screw diameter	φ45*2	φ50*2	φ55*2
Leverage ratio of screw thread	30:1	30:1	30:1
Screw material	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
Material Tube	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
Material cylinder cooling	180w×1-2	180w×2-2	180w×2-2
Main Engine Power	15kw-2	18.5kw-2	22kw-2
Barrel temperature control	3x2	3x2	3x2
Average Energy Consumption	40	45	50
Mold head
Mold mouth	φ50x2	φ60x2	φ70x2
Temperature Control	3x2	3x2	3x2
Double-blow wind ring	φ600x2	φ700x2	φ700x2
Fan	3	4	5.5
Traction Unit
Track roller width	φ140×500	φ140×600	φ160×700
Effective membrane width	400mm-2	500mm-2	600mm-2
Towing speed	10-100	10-100	10-100
Traction motor power	1.1kw-2	1.1kw-2	1.5kw-2
Winding Device
Reeling Motor Power	10N.m	16N.m	16N.m
unwind speed	10-100	10-100	10-100
Dimensions	7×4.2×4.4m	7×4.6×4.6m	7.5×4.8×5.2m

Note: The above configuration can be adjusted according to customer requirements.

Size changes will not be notified separately.

Optional accessories:

Automatic Material Absorption Machine

2) Surface Treatment

3) Rotary Molding Head Assembly

4) Air Compressor

5) Quick Change Network Device

6) Micron weight
