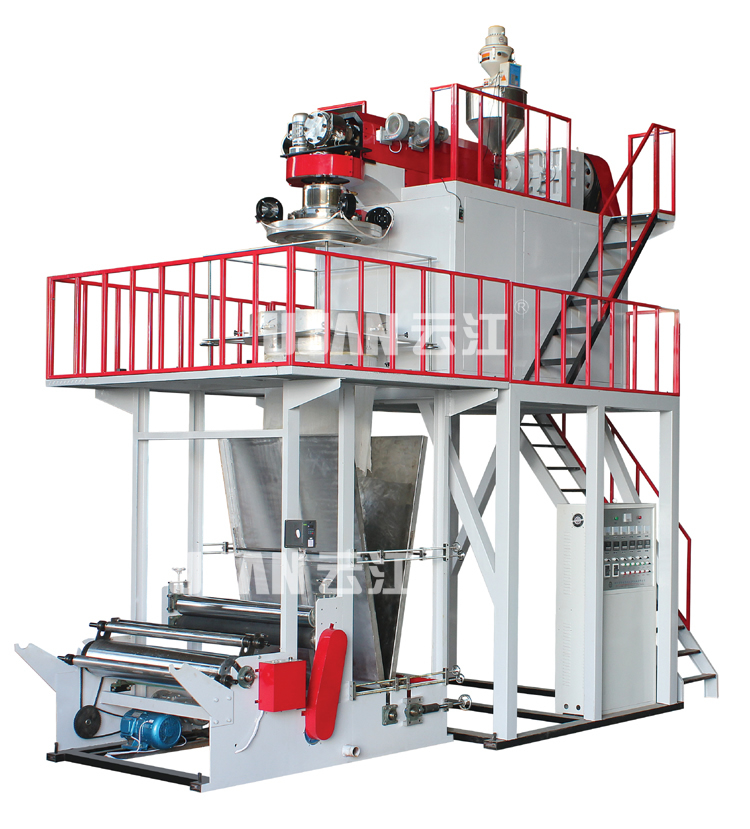

DZPE-900-1100-1300 Downward Blowing Water-Cooled PE Film Blowing Machine Set
Key Technical Parameters:
Specification Model | DZPE-900 | DZPE -1100 | DZPE -1300 |
Applicable Materials | PP-LDPE- LLDPE-MLDPE | PP-LDPE- LLDPE-MLDPE | PP-LDPE- LLDPE-MLDPE |
Product Width | 500-800 | 600-1000 | 700-1200 |
Product Thickness | 0.02-0.08 | 0.02-0.08 | 0.02-0.08 |
High output volume | 40-55kg/hr | 50-65kg/hr | 60-75kg/hr |
Extruder | |||
Screw diameter | φ55 | φ60 | φ65 |
Screw length-to-diameter ratio | 28:1 | 28:1 | 28:1 |
Screw material | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA |
Barrel material | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA |
Material cylinder cooling | 180w×2 | 180w×2 | 180w×2 |
Main Engine Power | 18.5kw | 22kw | 30kw |
Material Tube Temperature Control | 3 | 3 | 4 |
Average power consumption | 40 | 50 | 60 |
Mold head | |||
Mold mouth | φ250 | φ300 | φ350 |
Rotary | 360° | ||
Temperature Control | 1 | 1 | 2 |
Wind Ring | φ700 | φ900 | φ900 |
Fan | 1.1 | 1.5 | 2.2 |
Traction Device | |||
Track roller width | φ160×900 | φ160×1100 | φ200×1300 |
Effective Width of Film | 800mm | 1000mm | 1200mm |
Downhaul Speed | 10-80 | 10-80 | 10-80 |
Down traction motor power | 1.1 | 1.5 | 1.5 |
Coiler Assembly | |||
Coiling Motor Power | 10N.m-2 | 16N.m-2 | 16N.m-2 |
unwind speed | 10-80 | 10-80 | 10-80 |
Dimensions | 6.5×2.2×4.6m | 6.5×2.4×4.8m | 6.5×2.6×5.2m |
Note: The above configuration can be adjusted according to customer requirements.
Size changes will not be announced separately.
Optional Equipment:
1) Automatic Material Absorption Machine
2) Surface Treatment
3) Rotating Molding Head Assembly
4) Air Compressors
5) Quick Change Network Device
