DZSJ/700/900/1100 Triple Co-extrusion Bird's Nest High-Speed Blowing Film Machine

价格￥10000.00

最小起订1 Tai库存999 Tai

Business Card

Your company's名称Zhejiang Deqi Machinery Co., Ltd.
联系人陈用龙（先生）
Your company'sPhone13958877885
Mobile号码13958877885
Company Address785 Weiyi Road, Nanbin Street, Ruian City, Wenzhou, Zhejiang Province

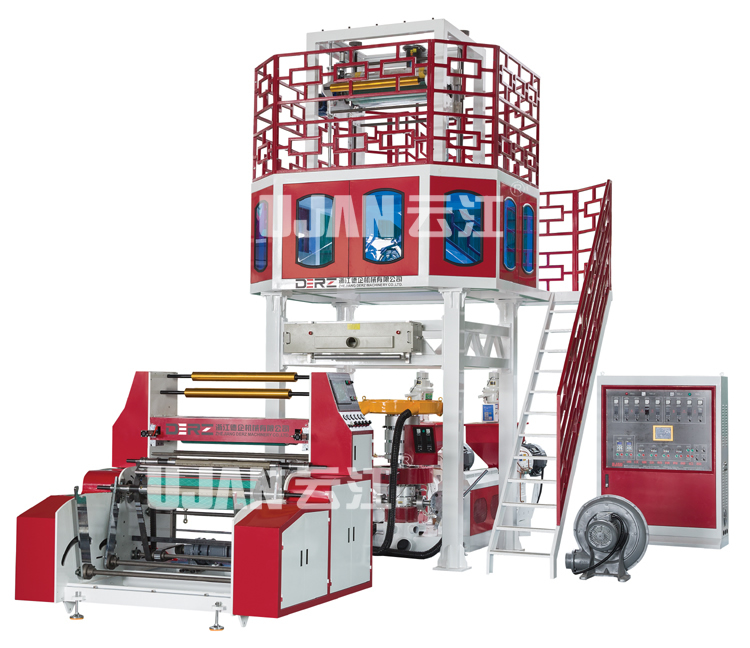

DZSJ-700-900-1100 Three-Layer Co-extrusion Bird's Nest High-Speed Blown Film Machine

Main Technical Parameters:

Model and Specification	DZSJ-700	DZSJ-900	DZSJ-1100
Applicable Materials	LDPE –LLDPE- HDPE	LDPE- LLDPE- HDPE	LDPE- LLDPE -HDPE
Product Width	300-600	500-800	700-1000
Product Thickness	0.015-0.08	0.015-0.08	0.015-0.08
High extrusion capacity	80kg/hr	100kg/hr	150kg/hr
Extruder
Screw diameter	φ45*2	φ50*2	φ55*2
Screw thread length-to-diameter ratio	30:1	30:1	30:1
Screw material	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
Barrel material	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
Barrel cooler	180w×1-2	180w×2-2	180w×2-2
Main Engine Power	15kw	18.5kw	22kw
Barrel temperature control	3	3	3
Average power consumption	39	50	73
Mold Head
Mold cavity	φ60	φ80	φ100
Rotary	360°
Temperature Control	2	2	2
Dual-blow wind ring	φ700	φ800	φ800
Fan	3	4	5.5
Traction Device
Track roller width	φ140×700	φ140×900	φ160×1100
Effective Width of Membrane	600mm	800mm	1000mm
Up and down movement	700mm	700mm	700mm
Towing speed	10-100	10-100	10-100
Traction motor power	1.1	1.1	1.5
Coiling Device
Reeling Motor Power	10N.m	16N.m	16N.m
Rewinding Speed	10-100	10-100	10-100
Dimensions	6.5×2.1×4.4m	7×2.3×4.6m	7.5×2.5×5.2m

Note: The above configuration can be adjusted according to customer requirements.

Dimensions may change without prior notice.

Optional equipment:

Automatic Material Feeding Machine

2) Surface Treatment

3) Rotating Molding Head Assembly

4) Air Compressor

5) Quick Change Net Device

6) Micron weight
