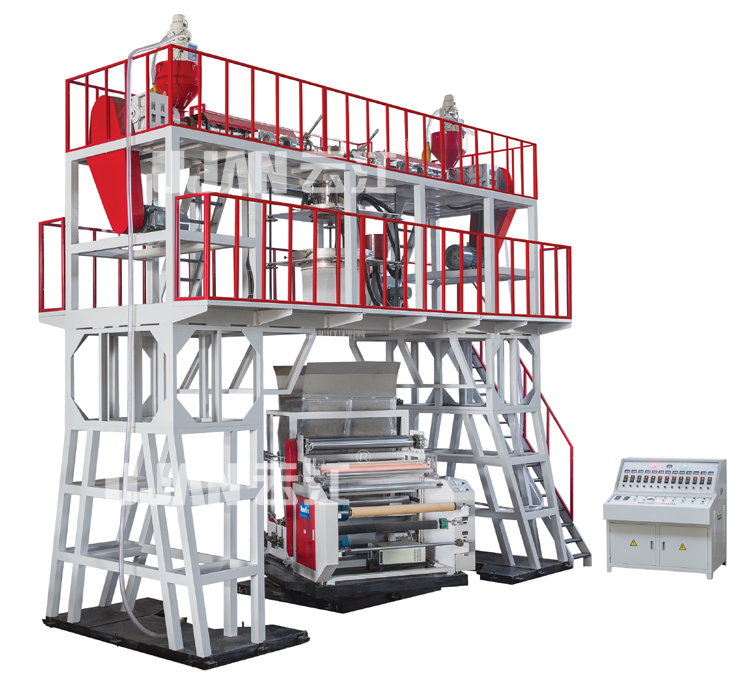

DZPP-2L 900/1100/1300 Two-layer Co-extrusion Downward Blowing Water Cooling Blown Film Unit

Primary Technical Parameters:

Model and Specification	DZPP-2L- 900	DZPP -2L- 1100	DZPP -2L -1300
Applicable Materials	PP- LDPE- LLDPE- MLDPE	PP –LDPE- LLDPE -MLDPE	PP- LDPE- LLDPE -MLDPE
Product Width	500-800	700-1000	900-1200
Product Thickness	0.015-0.08	0.015-0.08	0.015-0.08
High output volume	75kg/hr	85kg/hr	120kg/hr
Extruder
Bolt diameter	φ55/55	φ60/60	φ65/65
Screw length-to-diameter ratio	30:1	30:1	30:1
Screw Material	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
Material for barrel	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
Material cylinder cooling	180w×4	180w×4	180w×4
Main Engine Power	15kw/15kw	18.5kw/18.5kw	22kw/22kw
Barrel temperature control	3	3	4
Average power consumption	40	50	75
Mold Head
Mold cavity	φ280	φ350	φ400
Temperature Control	2	2	2
Wind Ring	φ700	φ700	φ900
Fan	1.5	1.5	2.2
Traction Unit
Track roller width	φ160×900	φ160×1100	φ200×1300
Effective Membrane Width	800mm	1000mm	1200mm
Down牵引旋转	360°
Down牵引速度	10-80	10-80	10-80
Traction motor power	1.5	1.5	2.2
Winding Device
Coiling Power	10N.m-2	16N.m-2	16N.m-2
Rewinding Speed	10-80	10-80	10-80
Dimensions	6.5×2.8×6.5m	6.5×2.8×6.8m	6.5×2.8×7.2m

Note: The above configuration can be adjusted according to customer requirements.

Size changes will not be notified separately.

Optional Equipment:

Automatic Material Feeding Machine

Surface Treatment

3) Air Compressor

4) Quick Change Net Device
