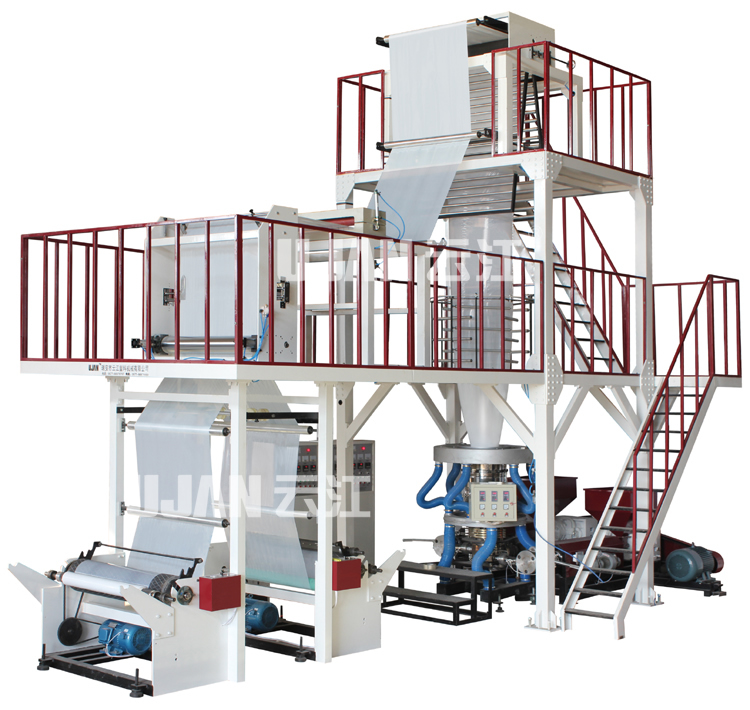

DZSJ-2L 900/1100/1300 Double Layer Co-extrusion Rotating Head Blowing Molding Machine
Main Technical Parameters:
Model and Specification | DZSJ-2L 900 | DZSJ-2L 1100 | DZSJ-2L 1300 |
Applicable Raw Materials | LDPE- LLDPE- HDPE- MLDPE | LDPE- LLDPE- HDPE- MLDPE | LDPE -LLDPE -HDPE -MLDPE |
Product Width | 500-800 | 700-1000 | 800-1200 |
Product Thickness | 0.015-0.08 | 0.015-0.08 | 0.015-0.08 |
High output volume | 50-90kg/hr | 70-110kg/hr | 90-130kg/hr |
Extruder | |||
Screw diameter | φ55/55 | φ60/60 | φ65/65 |
Screw length-to-diameter ratio | 28:1 | 28:1 | 28:1 |
Screw Material | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA |
Material Tube | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA | SACM-645/38 CRMOALA |
Material Cylinder Cooling | 180w×4 | 180w×4 | 180w×4 |
Main Engine Power | 15kw/15kw | 18.5kw/18.5kw | 22kw/22kw |
Material Tube Temperature Control | 3 | 3 | 3 |
Average power consumption | 50 | 60 | 80 |
Mold Head | |||
Mold Mouth | φ200 | φ250 | φ300 |
Temperature Control | 3 | 3 | 3 |
Wind Ring | φ800 | φ800 | φ1000 |
Fan | 3 | 4 | 5.5 |
Traction Device | |||
Track roller width | φ140×900 | φ160×1100 | φ160×1300 |
Effective membrane width | 800mm | 1000mm | 1200mm |
Towing speed | 10-80 | 10-80 | 10-80 |
Traction motor power | 1.1 | 1.5 | 1.5 |
Coiler Assembly | |||
Coiling Motor Power | 10N.m-2 | 16N.m-2 | 16N.m-2 |
unwind speed | 10-80 | 10-80 | 10-80 |
Dimensions | 6.5×2.1×6.3m | 7×2.3×6.5m | 7.2×2.5×7.2m |
Note: The above configuration can be adjusted according to customer requirements.
Size changes will not be announced separately.
Optional Equipment:
Automatic Material Feeding Machine
2) Surface Treatment
3) Air Compressor
4) Quick Change Network Device
