DZPP-3L Three-Layer Co-extrusion Downward Blowing Water-Cooled Blown Film Unit

价格￥10000.00

最小起订1 Tai库存999 Tai

Business Card

Your company's名称Zhejiang Deqi Machinery Co., Ltd.
联系人陈用龙（先生）
Your company'sPhone13958877885
Mobile号码13958877885
Company Address785 Weiyi Road, Nanbin Street, Ruian City, Wenzhou, Zhejiang Province

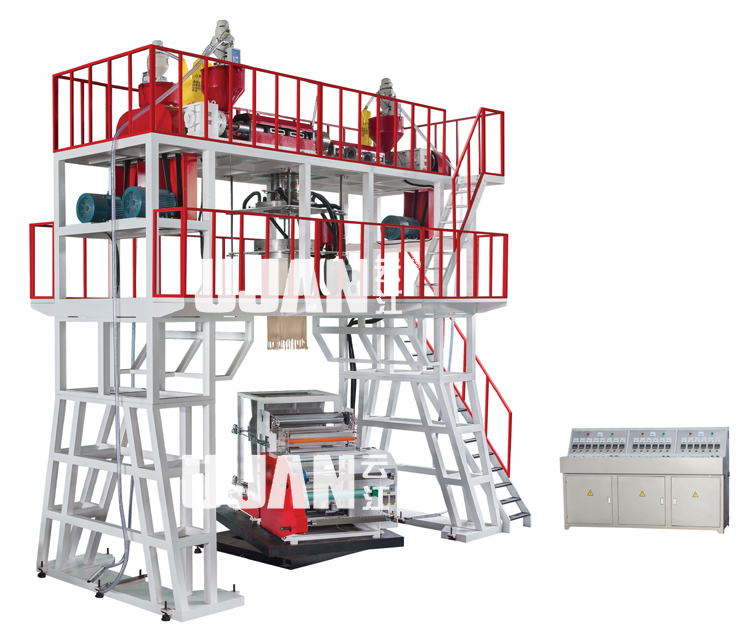

DZPP-3L 900/1100/1300 Three-layer Co-extrusion Down-Blow Water-Cooled Blown Film Line

Key Technical Specifications:

Specification Model	DZCPP -3L-900	DZCPP -3L-1100	DZCPP -3L-1300
Applicable Materials	PP- LDPE- LLDPE	PP- LDPE- LLDPE	PP –LDPE- LLDPE
Product Width	500-800	700-1000	900-1200
Product Thickness	0.02-0.12	0.02-0.12	0.02-0.12
Large extrusion volume	90kg/hr	120kg/hr	150kg/hr
Extruder
Bolster diameter	φ55/60/55	φ60/65/60	φ65/70/65
Screw thread length-to-diameter ratio	30:1	30:1	30:1
Screw material	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
Material Tube	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA	SACM-645/38 CRMOALA
Material Tube Cooling	180w×6	180w×6	180wx4-250x2
Main Engine Power	15kw/18.5kw/15kw	18.5kw/22kw/18.5kw	22kw/30kw/22kw
Material Cylinder Temperature Control	3-3-3	3-3-3	3-4-3
Average power consumption	50	70	90
Mold Head
Mold mouth	φ250	φ350	φ400
Temperature Control	2	2	3
Wind Ring	φ700	φ900	φ900
Fan	1.5	2.2	2.2
Traction Unit
Track roller width	φ160×900	φ160×1100	φ200×1300
Effective Membrane Width	800mm	1000mm	1200mm
Downhaul Speed	10-80	10-80	10-80
Lower traction motor power	1.5	1.5	2.2
Down牵引旋转	360°
Coiler Assembly
Coiling Power	10N.m-2	16N.m-2	16N.m-2
Coiling Speed	10-80	10-80	10-80
Dimensions	6.5×2.8×6.5m	6.5×2.8×6.8m	6.5×2.8×7.2m

Note: The above configuration can be adjusted according to customer requirements.

Size changes will not be announced separately.

Optional equipment:

Automatic Material Absorption Machine

Surface Treatment

3) Air Compressors

4) Quick Change Network Device
