Winner319 Industrial Spray Laser Particle Size Analyzer

Product Introduction:

Winner319A disassembled spray laser particle size analyzer, the instrument employs Mie scattering theory and a typical parallel light path design, equipped with a high-performance, high-power laser, capable of meeting the testing requirements for complex sample environments and large particle size distributions.

Product Features:

Split-body structure design

Split-body structure, adjustable measurement range of 0.1-10m, capable of meeting the needs of fog droplet measurement under various conditions, with advantages such as non-contact with fog droplet particles and no interference with the flow field.

Airflow Protection System

Install an airflow protection system to effectively safeguard the lens and prevent fog droplets from contaminating it during testing.

High test accuracy

Utilizing typical parallel light testing technology and spectral amplification techniques, the test range is significantly expanded, and multiple auxiliary integrated photoelectric detectors are added to effectively collect scattered light at various angles corresponding to the test range, ensuring the accuracy of test data across the entire range.

Stable automatic centering system

Automatically center the optical path with one click, eliminating the difficulty of adjustment caused by the movement of the optical path.

Multiple grain distribution models

Choose from standard mode, RR distribution, and logarithmic normal distribution, allowing for free conversion between volume and count distribution.

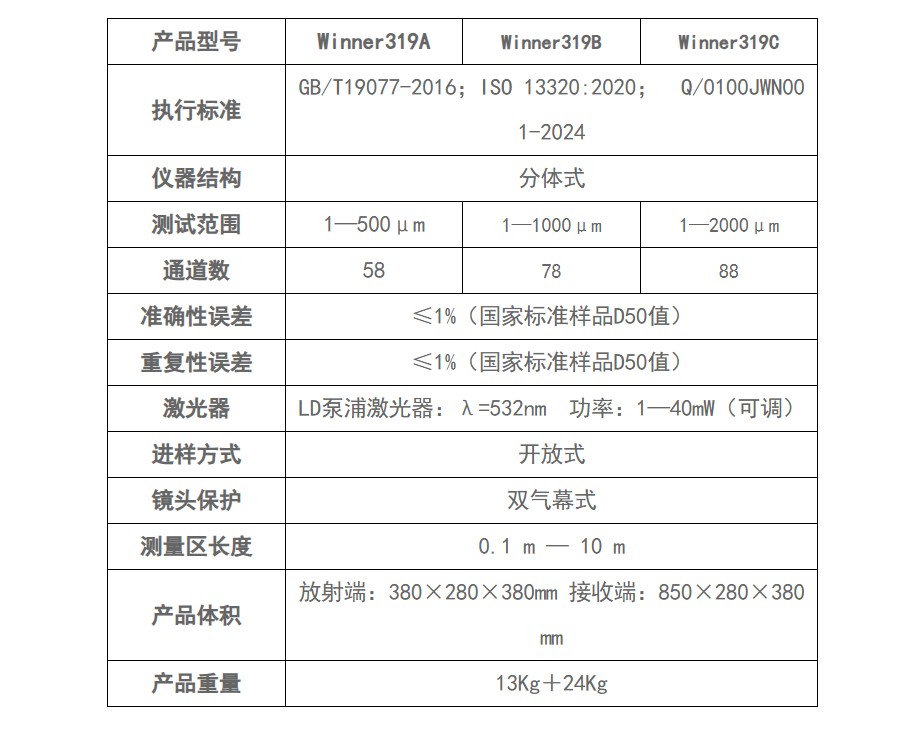

Product Technical Specifications:Application Fields:

Nozzles/Nozzle Research, Firefighting, Atomization Equipment, Engines, Agricultural and Forestry Vegetation, Smoke Aerosols, Aerospace, Spray Granulation, Pesticide Spraying, Fog Cannon Vehicles, Environmental Protection Industry, Aerosols, etc.

Test Site:Winner319 Spray Particle Analyzer is widely used in domestic universities, research institutions, and corporate laboratories. The Winner319 Spray Particle Gauge is also highly regarded by international clients for its early introduction, advanced measurement principle, wide measuring range, and strong environmental adaptability.
