Winner99E Micro Particle Image Analyzer

Product Description:

Winner99E is a particle image analysis equipment that effectively combines computer imaging with particle size and shape analysis theory through an image capture system and analysis software. It presents characteristic values and distributions of particle size and shape parameters such as particle size, sphericity, aspect ratio, bulk density, and surface area, all while providing clear particle images, allowing for a detailed understanding of particles. Additionally, this instrument heralds the era of automation and intelligence, making operations simpler, analysis more intelligent, and results more stable, serving as a partner and capable assistant for particle size testing and shape analysis.

Performance Features:

Directly reflects the particle morphologyDirectly display the surface morphology of the particles on the computer screen, allowing users to intuitively and globally understand the surface and shape properties of the particles.

Effective stitching of multiple imagesImages from multiple fields of view are selected to be stitched together into a single image, increasing the number of particles involved in the analysis and enhancing the representativeness of the test results.

Automatically Split Adhered GranulesUtilizing more advanced particle recognition algorithms, the system can automatically segment particles of various shapes, significantly enhancing the accuracy of particle segmentation, minimizing human involvement, and effectively reducing image processing time.

Adaptive Binary Thresholding FeatureUtilizing an adaptive binarization feature, the image binarization process is unaffected by shooting light, thereby preventing the loss of grainy information due to uneven lighting and other factors, laying a solid foundation for subsequent accurate processing.

Automated Processing of Granule ImagesParticle Image Analysis Software includes an automated toolset with features such as binarization, removal of incomplete particles at boundaries, noise reduction, hole filling, edge smoothing, separation of adhered particles, and calculation of particle parameters. With just one click, it can complete the entire process from particle image processing to the generation of analysis results, offering simple operation and reliable outcomes.

Switch particle size units freelyThe ruler selection supports multiple length units and allows for free switching between nanometers, micrometers, and millimeters, facilitating further processing of particle images obtained through electron microscopy and other methods.

Rapid processing of special-shaped particlesFor spherical particles, a unique processing algorithm is utilized to directly analyze particle size information from the original image without any pre-processing. This ensures that the analysis is unaffected even when particles are粘连 or overlapping, enhancing the efficiency of spherical particle analysis.

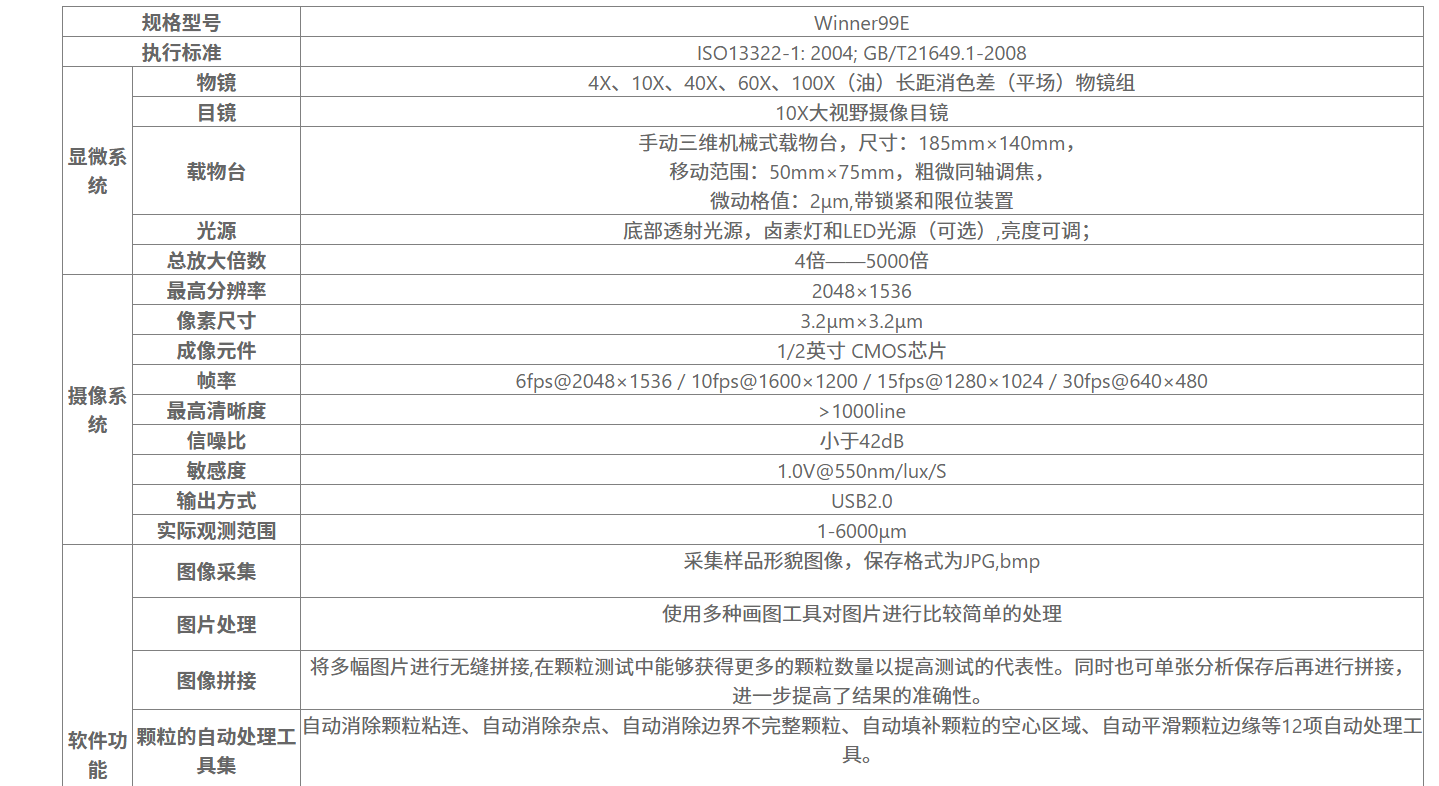

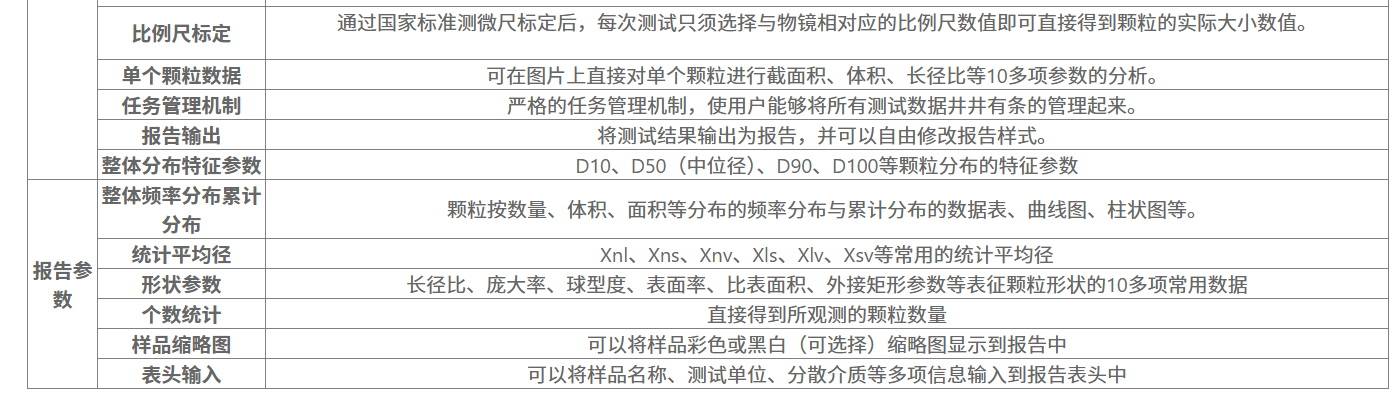

Technical Specifications:Application Scope:

The Winner99E Micro Particle Image Analyzer is suitable not only for irregular particles like rods and needles but also for industries such as cement, ceramics, pharmaceuticals, coatings, resins, dyes, pigments, fillers, chemical products, catalysts, coal powder, mud and sand, dust, flour, food, additives, pesticides, explosives, graphite, photo-sensitive materials, fuels, metal and non-metallic powders, calcium carbonate, kaolin, and other powder industries.

Directly displays particle morphology:

 Better results are achieved when used in conjunction with a dry granule spray disperser:
