Winner2018 Wet Method Laser Particle Size Analyzer (Standard Model)

Product Description:

Winner2018It is a new type of intelligent wet-laser particle size analyzer developed by Jinan Weina Technology. The instrument utilizes Mie scattering theory and employs Weina's unique unconstrained free fitting technology and intelligent control technology. The optical path is automatically centered, ensuring fast testing speed and accurate data.

Product Features:

Unrestricted free fit technology

Particle size analysis is unrestricted by any function, truly reflecting the particle distribution status.

Advanced optical path design

Employing a convergent Fourier transform optical path, it overcomes the limitations imposed by lens aperture on the scattering angle, enhancing the discrimination ability for sub-micrometer particles.

All-in-one Distributed System

Utilizing our independently developed wet granule recycling unit with a national invention patent (Patent No.: ZL.2010 1 0533181.6), which integrates mixing, ultrasonic, recirculation, and drainage functions, ensuring high overall coordination and preventing secondary sedimentation of sample particles during testing.

Automatic testing, one-click completion

Software intelligence supports one-click operation. Click "Auto Test," follow the prompts to add samples, and the rest of the steps will be automatically completed.

Ultrasonic self-cleaning feature

Reduce the frequency of disassembly and cleaning for customer sample windows, ensuring their cleanliness.

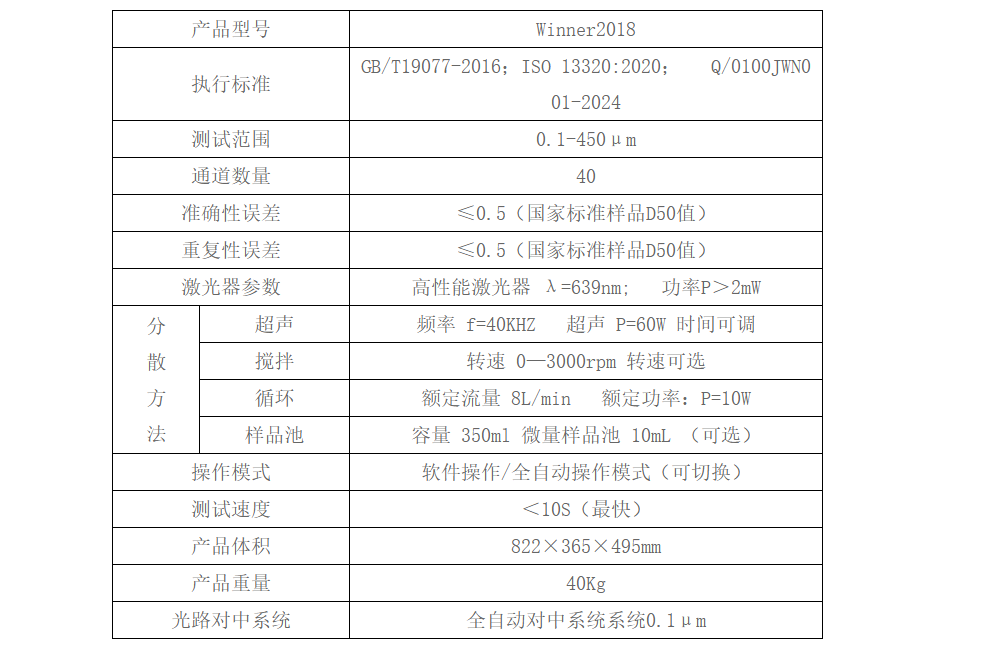

Product Technical Specifications:

Application Fields:

Primarily measures solid particles, suspensions, emulsions, gels, etc., that are not soluble in water or liquid mediums, and is widely used in industries such as universities, research institutions, chemical engineering, metallurgy, building materials, non-mining, pharmaceuticals, abrasives, new materials, new energy, environment, food, petrochemicals, and water conservancy.
