I. Brief Introduction to Biomass Boiler Technical Performance

1. Fully automatic operation with variable frequency control, automatic ignition, and fire retention function; utilizes carbon gas co-combustion + full pre-mixed gas-phase separation biomass pellet fuel combustion technology, combined with fluid dynamics, for automatic combustion. Emissions are smoke and dust-free, achieving energy conservation and environmental protection.

2. Full卧式three-dimensional structure design, incorporating traditional heat transfer principles, operates with energy-saving and electricity-saving, reducing energy consumption. The furnace body requires no ash cleaning during long-term disuse and requires no maintenance; features an extra-large combustion chamber with a large high-temperature heat exchange area, suitable for both wood and biomass pellets, saving operational costs; easy to maintain, with no dead corners.

3. Utilizing centrifugal rotation combustion technology, combined with chemical reaction kinetics, it extends radiation heat exchange time and distance, enhancing the efficiency of heat exchange, and ensures constant temperature with energy-saving.

4. Full intelligent automatic operation with IoT remote variable frequency control technology, automatic ignition, easy and labor-saving, simple to use. Variable frequency control, automatic ignition, and automatic flame retention function.

5. Four-pass design utilizes condensate heat recovery, with low chimney exhaust temperatures; produces high-temperature hot water, offering superior heating quality, and achieves energy savings of approximately 30%.

6. Integrated all-in-one quick assembly structure, ergonomically designed. Easy installation, simple maintenance, and straightforward operation.

7. High-temperature automatic descaling; the waste heat recovery unit reaches about 85℃ for boiling, trapping scale within the waste heat recovery period. This allows clean, scale-free hot water to enter the hot water boiler, achieving rapid hot water production and fuel savings.

8. Dual dust removal design with the induced fan installed after waste heat recovery and dust removal, ensuring the fan is unaffected by high temperatures and dust, thereby preventing resonance. The exhaust undergoes a secondary dust removal process, resulting in smoke and dust-free emissions, compliant with environmental protection standards.

9. 45-degree inclined drop material, ensuring no tempering effect, high-temperature carbon combustion gasification, combustion chamber temperature up to 1200°C, segmented combustion.

10. Exceptional details, quality reflected, multi-protection features including anti-dry-burning and anti-water-shortage, ensuring no accidents occur.

11. Anti-Dry-Run Protection: In the event of low water level in the hot water boiler, the controller automatically shuts off the heating unit and triggers a low-water alarm to prevent damage from dry burning.

12. Water Level Protection: Equipped with real-time water level sensors, the hot water boiler automatically controls the water level to ensure accurate and normal water supply. High and low water level alarms are interconnected for protection, with one in use and one in reserve for easy maintenance and quick repairs.

13. Over-temperature Protection: Prevents dry burning in hot water boilers, initiates emergency response, and promptly activates a cascade control to halt operation.

14. Furnace Explosion Prevention: Designed with the combustion characteristics of biomass pellet hot water boilers in mind, the furnace incorporates explosion-proof relief outlets to ensure stable operation of the hot water boiler.

15. Utilizing high-temperature-resistant wire: high insulation grade, durable and long-lasting.

16. Scientifically designed with an exquisite appearance, the square box biomass hot water boiler shell is coated with electrostatic powder painting, offering an aesthetically pleasing and highly corrosion-resistant finish. The square box shell is formed using CNC cutting and folding techniques for a single molding process, ensuring meticulous craftsmanship. The surface treatment with high-temperature electrostatic powder painting ensures durability and a handsome exterior.

17. This equipment features a compact structure and takes up minimal space. It is produced as a complete integrated unit, with all components undergoing pre-delivery testing and debugging. Each unit and accessory passes rigorous inspections to ensure customer satisfaction and peace of mind.

Section 2: Introduction to Carbon Gas Composite Combustion Technology

Our company utilizes advanced design concepts and biomass pellet combustion technology, developing a constant-temperature combustion method specifically tailored to the characteristics of biomass pellet fuel. This is currently one of the more reasonable and stable biomass pellet combustion methods in China.

For different biomass characteristics, based on fluid dynamics and the laws of conservation of mass, momentum, and energy, a分级 combustion technology for biomass pellets is rationally applied through wind tunnel hydrodynamics. This combustion method fundamentally overturns traditional methods, dividing into ignition, flame, with four types of flames respectively: premixed flame, laminar flame, turbulent flame, and diffusion flame. It undergoes dry distillation, carbonization, carbon combustion, and gasification, manifesting as flames.

Biomass pellet fuel has an initial energy, which is produced at around 325-500 degrees Celsius and ignites rapidly upon reaching a certain concentration. At this point, most homogenous gases, hydrogen, ethylene, and other combustible gases undergo chain-branching combustion reactions. Fluid dynamics (scientific air distribution) plays a crucial role by creating the concentration of active intermediates. The staged combustion technology primarily involves a rapid exothermic and luminous oxidation reaction, where biomass pellets are combusted with oxygen or air through intelligent feeding.

Biomass boilers are designed in a shape of reaction vessels that maintain a stable state for mass and heat transfer. A biomass boiler that improves combustion through the use of high-temperature air.

Fuel is introduced from the bottom feed, and burns from top to bottom sequentially, passing through: 1. the discharge layer, 2. the pyrolysis layer, 3. the carbonization layer, 4. the carbon combustion layer, 5. the gas combustion layer. The biomass pellet fuel is first carbonized at high temperatures and then gasified for combustion, rather than directly adding fuel to an already burning furnace.

Distillation layer:The biomass pellet feed layer, processed through a specially designed lower feed device, is continuously pushed forward by a spiral feeder, with the material continuously rising. As this section is not equipped with air, the temperature radiation from the upper combustion causes the lower part to be in an oxygen-free pyrolysis state. At this point, biomass pyrolysis occurs, generating a premixed flame. The combustible gases and air or oxygen decompose chemically in an oxygen-depleted or oxygen-free state in accordance with the chemical equivalence, producing ethylene, carbon dioxide, and confined to a narrow flame front, forming a flame (also known as a power flame). These gases further decompose to produce liquid aromatic hydrocarbons, tar, and solids.

Carbonized layer:Streamlined flame, formed by the combustion of static or streamline-moving combustible mixtures, increases in temperature, and the resulting liquid continually decomposes and vaporizes. The flame front is torn apart, and during volatilization, it is pyrolyzed into hydrocarbon gases. Carbonization does not include gases produced by combustion.

Carbon fuel layer: Turbulent flame that forms when combustible materials and oxygen or air burn without pre-mixing, characterized by a bright, intense flame and heat-producing reaction interface or space. The biomass particles' microproperties lead to the formation of glowing, incandescent smoke. Steam produced during biomass decomposition is decomposed into oxygen at high temperatures.

Gas layer:Due to the layered combustion technology, which also involves a layered air distribution, it produces diffused flames. As the fuel combines with air and oxygen inside the furnace, carbon oxides are formed, which decompose into low molecular compounds in the high-temperature environment, releasing free carbon particles. When these particles combine with oxygen during combustion, they burn intensely, producing a white, bright flame. This flame can raise the furnace temperature to 1200°C, with peak temperatures reaching up to 1400°C; small boilers can also reach temperatures from 950°C to 1100°C.

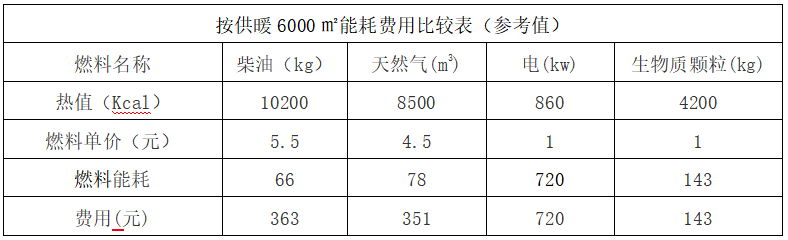

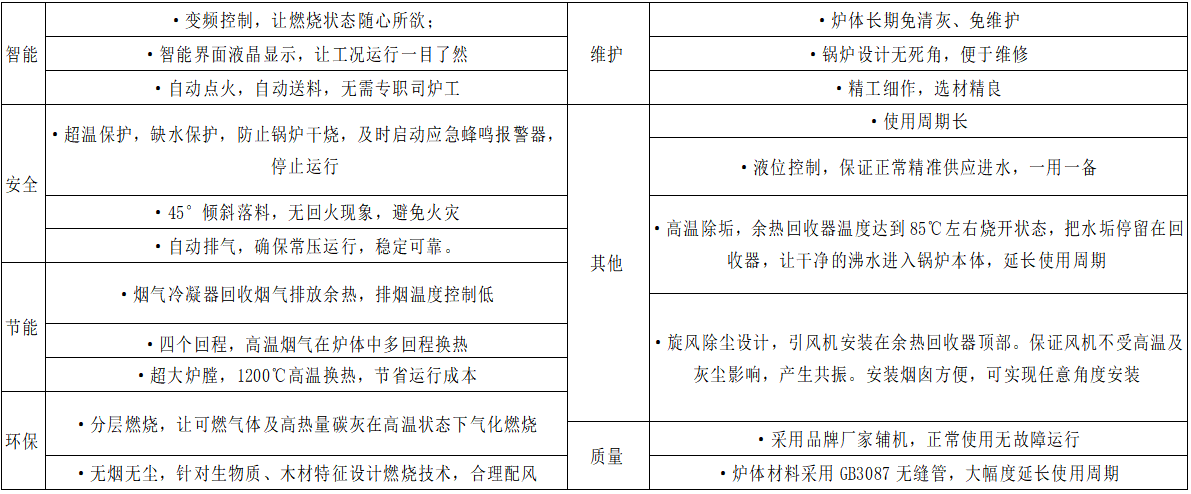

Three: Advanced performance, high level of automationIV. Comparison of Energy Consumption Costs for Various Fuels:

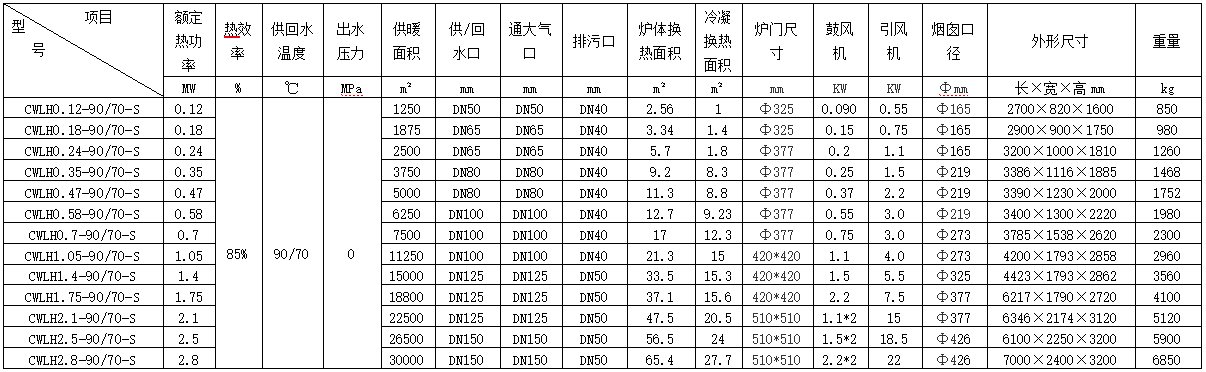

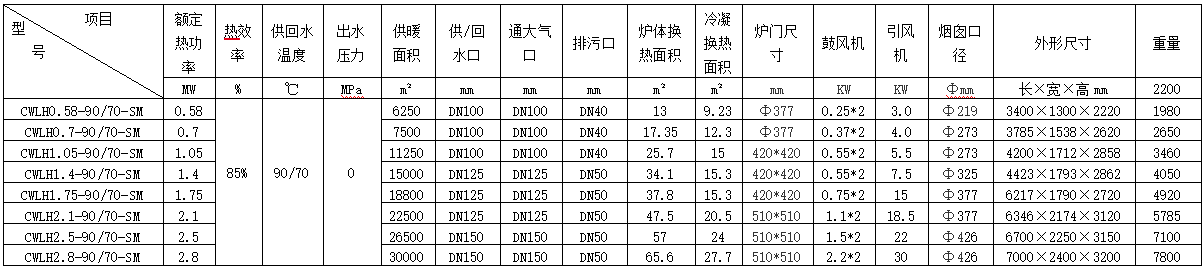

1. Technical Specifications of Fully Automatic Biomass Pellet Atmospheric Pressure Hot Water Boiler (for biomass use only)Section II: Technical Parameters of Full-Automatic Biomass Pellet Atmospheric Pressure Hot Water Boiler (Tri-Fuel: Biomass/Wood/Coal)1. Calorific value is calculated according to the following standard: 4200 kcal/kg

2. Fuel consumption figures are based on full load operation of the boiler. Actual consumption may vary depending on operating conditions.

3. Retain the right to redefine or alter product information without prior notice (including appearance, dimensions, control methods, internal structure, etc.)
