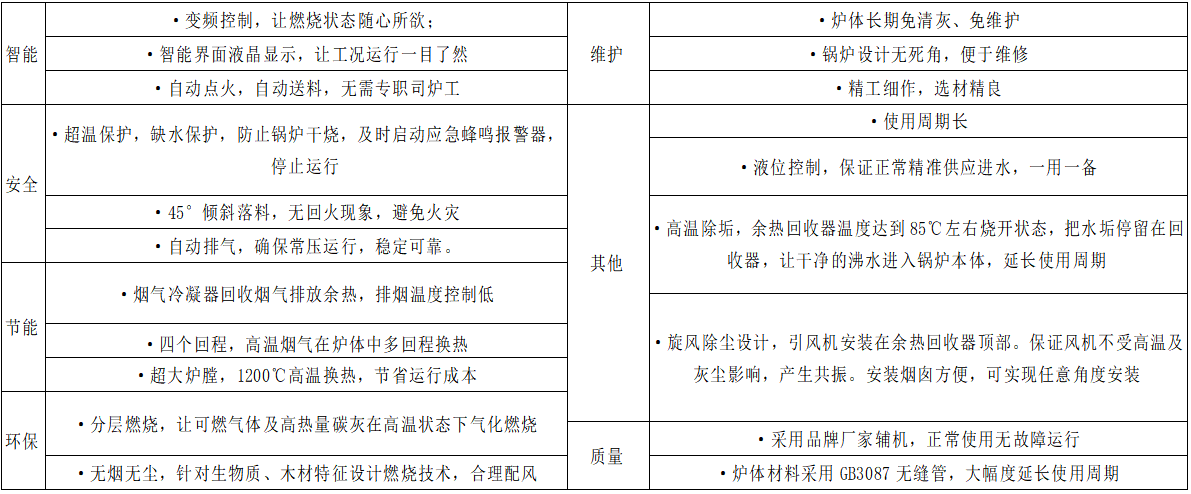

I. Brief Introduction to Biomass Boiler Technical Performance

1. Fully automatic operation with variable frequency control, automatic ignition, and fire retention function; utilizes carbon gas blend combustion + full premixed gas-phase separated biomass pellet fuel combustion technology, combined with fluid dynamics, for automatic combustion. It emits no smoke or dust, is energy-saving, and environmentally friendly.

2. Full-laying three-dimensional structure design, combining traditional heat transfer principles, operates with energy-saving and electricity-saving features, reducing energy consumption. The furnace body requires no ash cleaning for long-term non-use and is maintenance-free; features an extra-large furnace chamber with a large high-temperature heat exchange area, compatible with both wood and biomass pellets, thus saving operational costs; easy to maintain with no blind spots.

3. Utilizes centrifugal rotation combustion technology, integrating chemical reaction kinetics, to enhance radiation heat exchange time, extend radiation distance, improve heat exchange efficiency, and maintain constant temperature while saving energy.

4. Full intelligent automatic operation with IoT remote frequency conversion control technology, automatic ignition, easy and labor-saving, simple to use. Features include frequency conversion control, automatic ignition, and automatic flame retention function.

5. Four-pass design utilizes condensate heat, with low chimney exhaust temperatures; produces high-temperature hot water, ensuring superior heating quality, and achieves energy savings of approximately 30%.

6. Integrated unit with quick assembly structure design, ergonomically friendly. Easy installation, easy maintenance, simple operation.

7. Automatic scale removal at high temperatures; the waste heat recovery unit reaches a boiling state around 85°C, trapping scale within the waste heat recovery period. This allows clean, scale-free hot water to enter the hot water boiler, achieving rapid hot water production and fuel savings.

8. Dual dust removal design, with the fan installed after waste heat recovery and dust removal, ensuring the fan is unaffected by high temperatures and dust. This prevents resonance and further achieves smoke and dust-free emissions through secondary dust removal, complying with environmental protection standards.

9. 45-degree inclined feed, ensuring no tempering phenomena, high-temperature carbon burn gasification, combustion chamber temperature up to 1200°C, segmented combustion.

10. Exceptional details, quality evident, multi-layer protection against dry burning and water shortage, ensuring no accidents occur.

11. Anti-Dry-Run Protection: In case of water shortage in the hot water boiler, the controller automatically shuts off the heating unit and triggers a low-water alarm to prevent damage due to dry burning.

12. Water Level Protection: Utilizes real-time water level sensors to detect water levels, with an automatic water level control system for hot water boilers, ensuring precise and normal water supply. High and low water level alarm and interlock protection, with one in use and one in reserve for easy maintenance and quick repair.

13. Over-temperature Protection: Prevents dry burning of the hot water boiler, initiates emergency response, and promptly activates a连锁 control to stop operation.

14. Furnace Explosion Protection: Designed with the combustion characteristics of biomass pellet hot water boilers in mind, the furnace features explosion-proof venting ports to ensure stable operation of the hot water boiler.

15. Utilize high-temperature-resistant wire: high insulation grade, durable and long-lasting.

16. Scientifically designed with an exquisite appearance, the square box biomass hot water boiler shell is treated with electrostatic powder coating, ensuring a beautiful look and high corrosion resistance. The square box shell is formed through CNC cutting and bending, achieving a precise finish; the surface is treated with high-temperature electrostatic powder coating, making it durable and visually appealing.

17. This equipment features a compact structure and minimal footprint, with the entire unit being integrated and factory-assembled. Both the whole unit and all accessories undergo pre-delivery testing and debugging, passing rigorous inspections to ensure customer satisfaction and peace of mind.

Section II: Introduction to Carbon Gas Composite Combustion Technology

Our company employs advanced design concepts and biomass pellet combustion technology, developing a constant-temperature combustion method specifically tailored to the characteristics of biomass pellet fuel. This method is currently one of the more reasonable and stable biomass pellet combustion methods in China.

Based on the characteristics of different biomass, combined with fluid dynamics, and utilizing the laws of conservation of mass, momentum, and energy, a分级 combustion technology for biomass pellet boilers is reasonably applied through wind tunnel fluidics. This combustion method fundamentally revolutionizes traditional methods, dividing the process into ignition, flame, and further into four types of flames: premixed flame, laminar flame, turbulent flame, and diffusion flame. It undergoes pyrolysis, carbonization, carbon combustion, and gasification, manifesting as flames.

Biomass pellet fuel has an initial energy that is produced around 325-500 degrees Celsius and ignites rapidly when the concentration reaches a certain equivalence. At this point, most homogenous gases, hydrogen, ethylene, and other combustible gases undergo a chain-branching combustion reaction. Fluid dynamics (scientific air distribution) plays a key role by maintaining the concentration of active intermediates. The staged combustion technology involves a rapid exothermic and luminous oxidation reaction, where biomass pellets are combined with oxygen or air through intelligent feeding.

Biomass boilers are designed with a shape of the reaction vessel that maintains a stable state in mass and heat transfer. A biomass boiler that improves combustion by using high-temperature air.

Fuel is introduced from the bottom, and it burns from top to bottom, sequentially passing through: 1. the discharge layer, 2. the pyrolysis layer, 3. the carbonization layer, 4. the carbon combustion layer, and 5. the gas combustion layer. The biomass pellet fuel is first高温 carbonized and then gasified for combustion, rather than directly adding it to a burning furnace.

Pyrolysis Layer: The biomass granule raw material layer, fed continuously by a screw feeder through a specially designed lower feeding device, moves upwards. As this section is not supplied with air, the upper combustion temperature radiates down, causing the lower part to undergo anaerobic pyrolysis. At this point, biomass pyrolyzes, producing a premixed flame, and combustible gases and air or oxygen decompose chemically in an anaerobic or oxygen-free state, yielding ethylene, carbon dioxide. The chemical reaction is confined to a narrow flame front, forming a flame (also known as a power flame). These gases further decompose to produce liquid aromatics, tar, and solids.

Carbon layer: A flame formed during the combustion of a combustible mixture in a laminar flow, stationary, or in a laminar motion, with increasing temperature. The liquid produced undergoes decomposition and vaporization, causing the flame front to be torn apart and, during the volatilization process, it is converted into hydrocarbon gas through dry distillation. The carbon layer does not include gases produced by combustion.

Carbon combustion layer: A turbulent flame produced by the combustion of unpremixed combustible materials and oxygen or air, characterized by a highly energetic interface or space with intense luminous and heat-releasing reactions, and the emission of glowing flue gases due to the pyrolytic properties of biomass particles. Steam produced during biomass decomposition is decomposed into oxygen at high temperatures.

Gas Combustion Layer: Due to the stratified nature of the layer combustion technology, it generates a diffused flame. As the fuel combines with air and oxygen inside the furnace, carbon oxides are formed, which decompose into low molecular compounds in the high-temperature environment, producing free carbon particles. When these particles combine with oxygen during combustion, they burn intensely, creating a white, luminous flame. This flame can raise the furnace temperature to 1200°C, with peak temperatures reaching up to 1400°C; small boilers can also reach temperatures between 950°C and 1100°C.

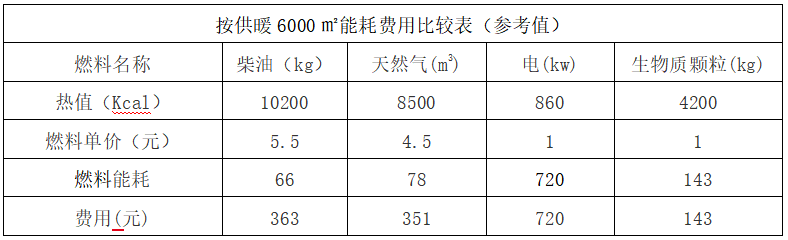

Advanced performance, high degree of automationSection 4: Comparison of Energy Consumption Costs for Various Fuels:

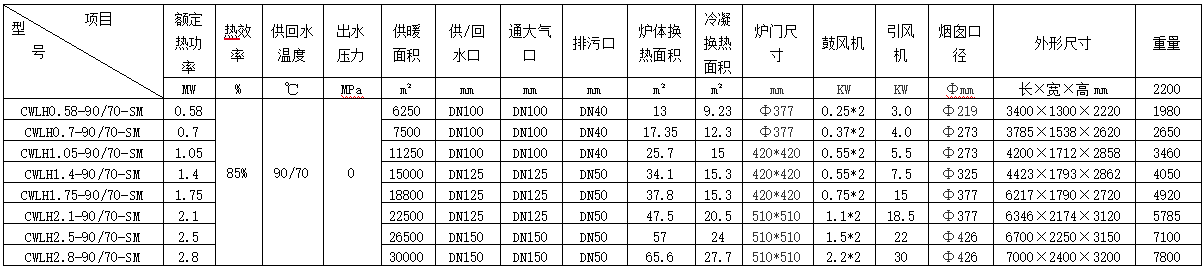

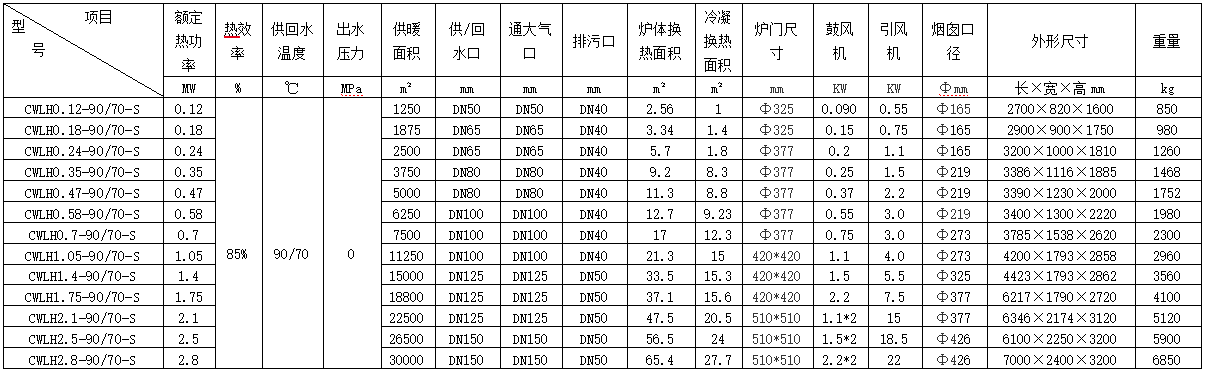

1. Technical Specifications of Full-Automatic Biomass Pellet Atmospheric Pressure Hot Water Boiler (Biomass-Specific)Section 2: Technical Specifications of Full-Automatic Biomass Pellet Atmospheric Pressure Hot Water Boiler (Tri-Fuel: Biomass/Wood/Coal)1. The calorific value is calculated according to the following standard: 4200 kcal/kg

2. Fuel consumption figures are based on full load operation of the boiler. Actual consumption may vary depending on operating conditions.

3. Retain the right to redefine or modify product information without prior notice (including appearance, dimensions, control methods, internal structure, etc.)
