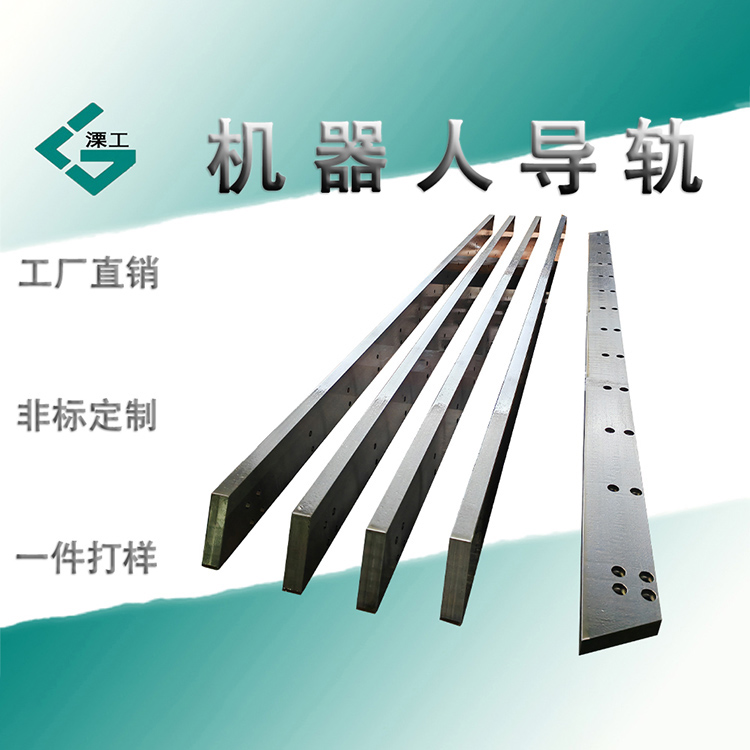

Robot guide rails are linear guidance devices specifically designed to meet the motion requirements of industrial and collaborative robots. Their core function is to provide high-precision and high-stability linear motion support for the robot's end effector or the robot itself, serving as a crucial component for enabling wide-range operations of robots in automated production lines.
Key Features
High rigidity and overturning resistance
Robots generate load impacts and torques during operation, so the guideways must be sufficiently rigid to prevent deformation that affects positioning accuracy. Heavy-duty robot guideways often feature reinforced cross-section designs, paired with high-tensile bolts for secure fixation, effectively resisting overturning torques.
High precision and repeatable positioning
For precision tasks such as sorting, assembly, and welding, the robot guide rail achieves a repeatable positioning accuracy of ±0.01mm, meeting the precise switching needs of robots between different workstations.
Compliant with robotic motion characteristics
Interlinks with robotic servo systems, supporting high-speed start/stop and smooth directional changes, to prevent vibration or creeping during operation, ensuring efficiency and quality of work.
Modular design
Guide rail lengths can be customized for assembly, and are compatible with accessories such as slides, drag chains, and protective covers, fitting various robot brands' installation interfaces for easy integration into automated production lines.
Key Components and Maintenance
Accessories
Drive System: Mated with servo motors + ball screw/synchronous belt, for precise speed and position control.
Protective Device: Add an expandable steel plate shield or accordion shield to prevent iron chips and dust from entering the guide rail assembly.
Lubrication System: Equipped with an automatic lubricator, regularly replenished with specialized lubricant to minimize guide rail wear.
Maintenance Points
Regularly clean the guide rail surface to prevent accumulation of debris.
Check the tightness of the guide rail bolts to prevent loosening due to long-term vibration.
Monitor guide rail operation noise and temperature rise, and promptly investigate and troubleshoot any anomalies.
