Guides are devices used to guide moving mechanisms or equipment while reducing friction. Below is a detailed introduction to guides:

Definition and Composition

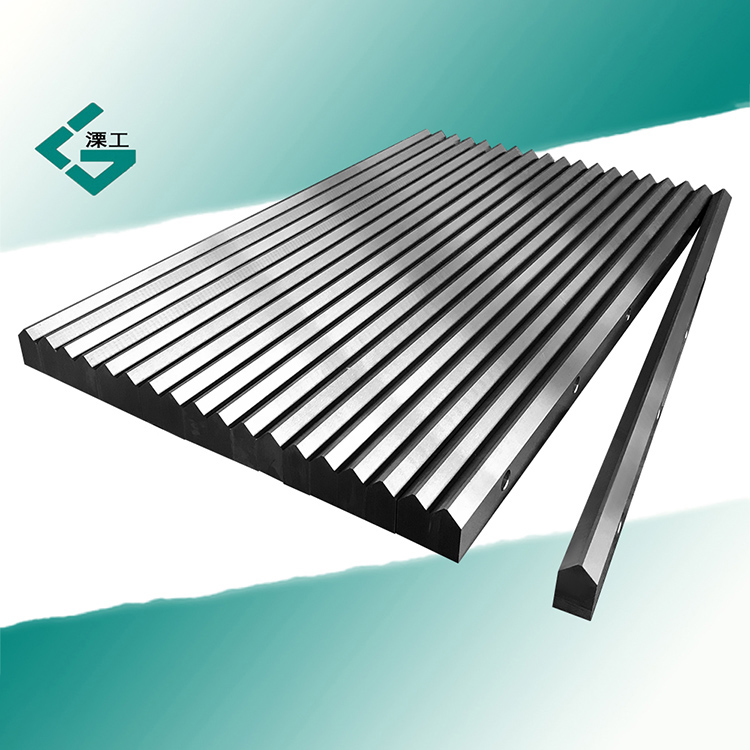

Guideways are typically made of metal or other materials, featuring longitudinal grooves or ribs on their surface for guiding, securing machine components, specialized equipment, instruments, and more. Guideways consist of moving parts and supporting elements, forming a guide pair that ensures the correct movement path of the actuating parts.

Performance Requirements

Guidance Accuracy: The precision of the guide rail motion path, affected by factors such as the geometric accuracy of the guide rail, contact accuracy, and structural form.

Accuracy Retention: Primarily determined by the wear resistance of the guide rail, which is related to the guide rail material, friction properties, pressure, and its distribution pattern.

Stiffness: Includes the inherent stiffness of the guide rail and the contact stiffness, which depends on the shape, size, connection method with the supporting components, and load conditions of the guide rail.

Low-speed motion stability: To avoid creeping during low-speed movement or minor displacement of the linear guide rail, ensuring positioning accuracy and surface quality of the workpiece.

Categories

Rolling Guides: Achieve motion through rolling elements like balls and cylinders, featuring low friction coefficients and high precision. For instance, ball guides offer sensitive motion and high precision, commonly used in CNC machines; roller guides, with strong load-bearing capacity, are suitable for heavy-duty CNC machines.

Slide Rails: Direct sliding contact between the rail surface and slider, relying on lubrication to reduce friction, with a simple structure and low cost. Like common slide rails, where metal contacts metal directly, often used in general-purpose lathes; plastic-coated slide rails, with a wear-resistant plastic layer adhered to the rail surface, have strong shock absorption, commonly used in general-purpose milling machines.

Hydrostatic Guideways: Lifts moving parts by high-pressure oil or air film, achieving contactless motion with extremely low friction coefficient. Liquid hydrostatic guideways offer high precision and no wear, suitable for ultra-precision machine tools; gas hydrostatic guideways are clean and pollution-free, ideal for semiconductor lithography machines.

Materials and Processing

Material: Common guide rail materials include high-strength steel, cast iron, and aluminum alloy. High-strength steel is suitable for guide rails that bear heavy loads; cast iron guide rails have good shock absorption, suitable for high-load and low-speed applications; aluminum alloy guide rails are lightweight and have excellent corrosion resistance, ideal for light-load and fast-moving equipment.

Processing: Typically, precision machining is performed using CNC machines, requiring strict control over guide rail flatness, surface roughness, and dimensional tolerances to ensure precise size requirements are met.

Application Fields

Guide rail applications are extremely versatile, covering all mechanical equipment requiring linear motion, such as CNC machine tools, industrial robots, automated production lines, transportation systems, and precision instruments, among others. They are an indispensable key component in many automated equipment and mechanical systems.

Lubrication and Protection

 Lubrication: Guide rail lubricants reduce friction resistance, minimize wear, prevent creeping, and decrease thermal deformation. When selecting machine tool guide rail lubricants, factors such as the type of guide rail, hydraulic system requirements, sliding speed, and average pressure should be considered.

Protection: The protection of the guide rail can prevent or reduce the wear of the guide rail pair, extending the life of the guide rail. Common protective devices include steel plate telescopic guards, etc.
