Final interpretation of the module belongs to the manufacturer. Our company specializes in the sales, repair, and testing services for various charging modules of DC screen simulation screens.

Shanghai Ren Automation Technology Co., Ltd. has been dedicated to the exploration, learning, and innovation of DC power technology since its establishment. We don't offer a wide range of products; we specialize in just one type of DC power screen.

We are one of the few companies capable of repairing DC screen charging module mainboards and can service the majority of DC power module models on the market.

We have always adhered to the belief that owning technology is the key to owning the market.

Our DC power panels passed the inspection by the National Relay Protection and Automation Equipment Quality Supervision and Inspection Center in 2012, as well as the Xuchang Kaipu Electric Inspection and Research Institute (Certificate No. JW120747).

Years of technical accumulation, stemming from our passion and interest in the DC power supply industry!

We are committed to providing our clients with high-quality, stable, and reliable DC power technology. Our charging modules incorporate the following technologies:

Resonant Voltage Control Power Converter - Full-Switching Soft-Switching Technology

"Soft Switched Resonant DC-AC Inverter Circuit" technology

Resonant Voltage-Controlled Power Converter Technology

Active Power Factor Correction Step-Up Transformer Technology

Good quality and excellent quality are essential for better service to customers and creating value for them.

After 10 years of trials and tribulations, we remain true to our original vision: producing high-quality domestic DC screens. We continuously learn, improve ourselves, engage in healthy competition, appreciate each other, and offer mutual support. Welcome friends to call for inquiries and discuss cooperation opportunities.

Which DC screen is the best? Shanghai Jurun offers high quality at competitive prices!

This product is highly automated, requiring minimal specialized knowledge from the operator for routine operations. Following the instructions in this user manual ensures easy operation.

Second usage environment

2.1 Altitude not exceeding 2,000 meters.

2.2 Environmental Temperature: -10 to +50℃.

2.3 The average relative humidity on the 2nd and 3rd days does not exceed 95%, and the monthly average relative humidity does not exceed 90%.

2.4 No severe vibration or impact, no strong electromagnetic field interference.

2.5 No serious dust, explosive hazardous medium, corrosive metals, harmful gases that damage insulation, conductive particles, or severe mold is present around the 2.5.

2.6 The vertical inclination is not greater than 5 degrees.

III. Technical Specifications

3.1 Three-phase AC input voltage: 380V (±15%, -10%), frequency: 50 Hz ±0.5.

3.2 Control busbar DC output voltage: 220V / 24V / 48V / 110V

3.3 Rated DC output current of busbars: 40A.

3.4 The rated capacity for maintenance-free, fully-sealed lead-acid batteries applies to: 40AH-500AH (in this case, 120AH).

3.5 Bus voltage stability control ≤ ±0.2%.

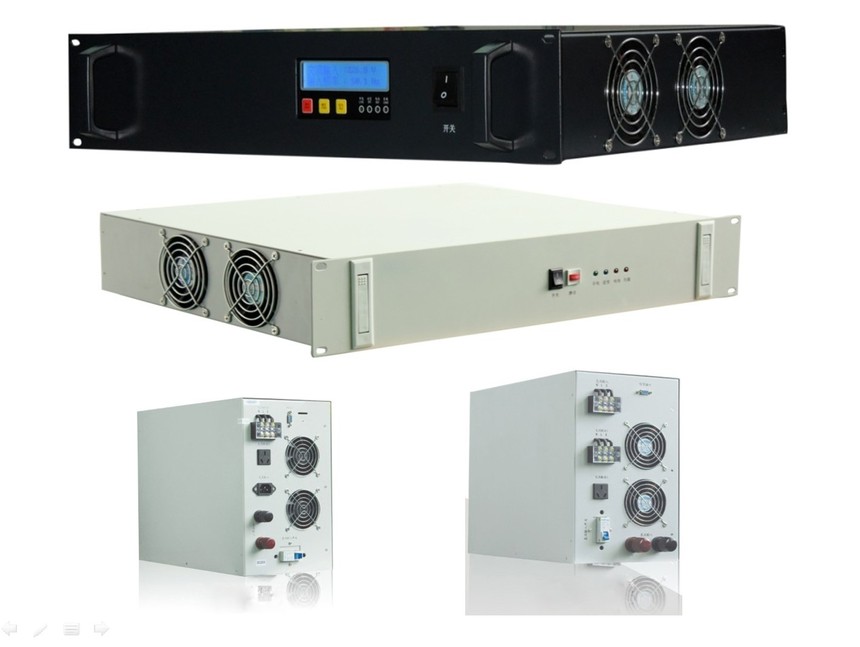

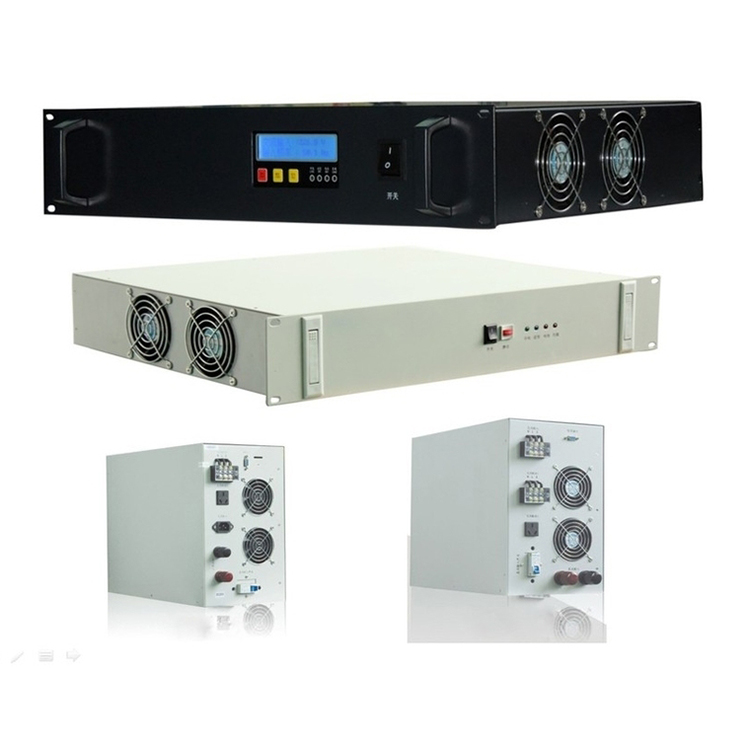

Section 1: Overview of CT6000 Series Models

The CT6000 series sine wave inverter is designed to meet the actual needs of the power system and the postal and telecommunications industry, taking into account the size and space requirements for installation.ITInverters specifically designed and produced to meet the era's demand for automated and networked inverter management, as well as the impact of noise on office or server room staff.

This series of inverters utilizes advanced SPWM technology andCPUControl technology, precision, input/output isolation, safe and efficient, high reliability. This series is compact, lightweight, aesthetically pleasing, easy to install and maintain, simple to operate, low noise, and has low back-feeding noise, non-polluting, with real-time data collection and remote communication capabilities. It offers convenience for system users to implement network management and remote monitoring. The inverter is not only suitable for power systems and communication industries but also for other applications that demand high power quality, making it an ideal power source for office automation.

Section 2: CT6000 Series Model Descriptions

CT  XX/220-XXXX W/L

CT……Company Trademark

XX……….Nominal Input DC Voltage

220……..Nominal Output Sinusoidal Voltage

XXXX…….Rated Output Power VA

W………..19-inch standard rack-mountable

L…………Desk-type

Section 3: Overview of CT6000 Series Models

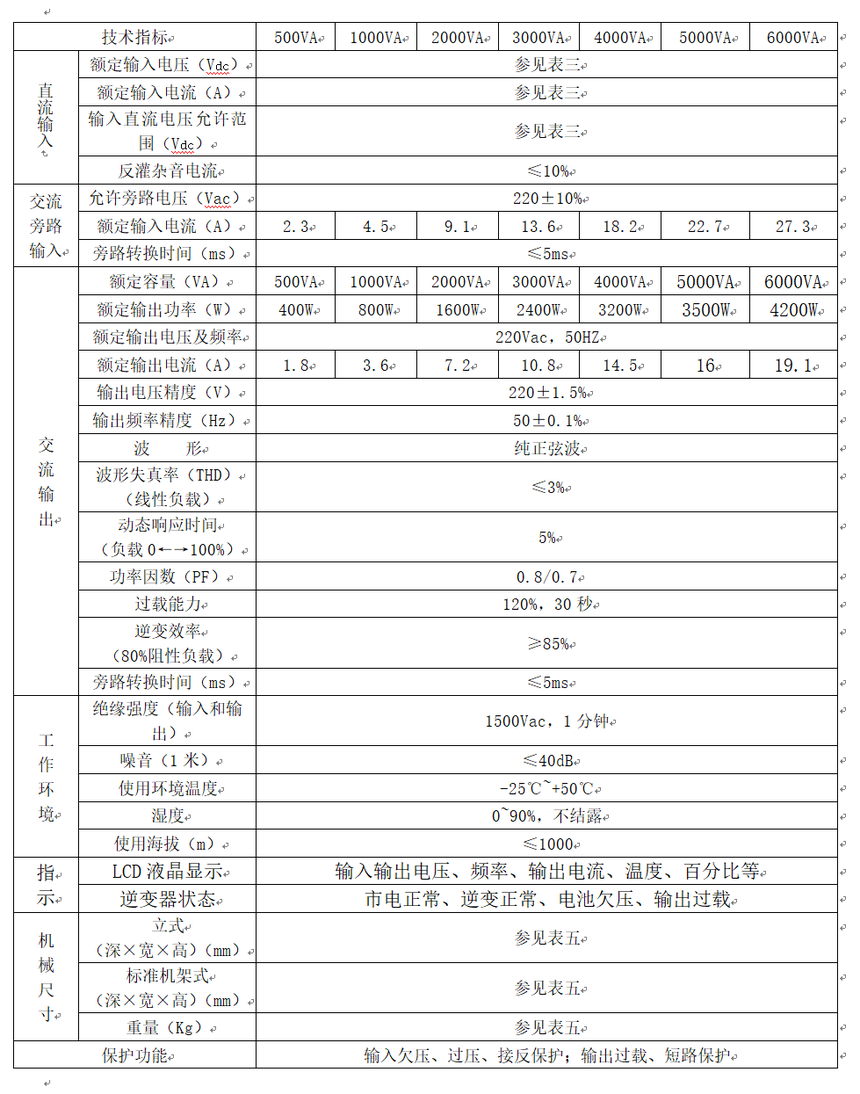

Table 1: CT6000Model Overview
