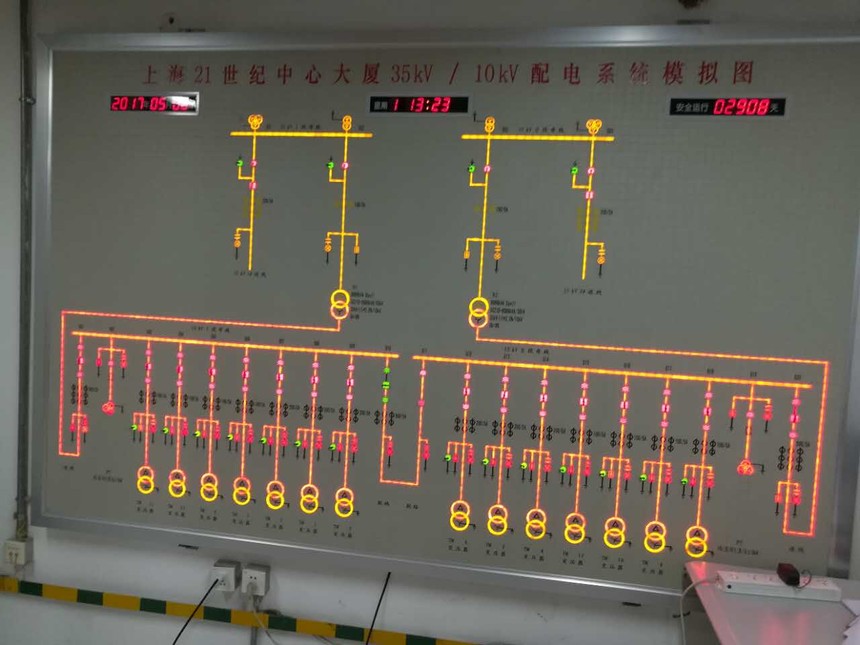

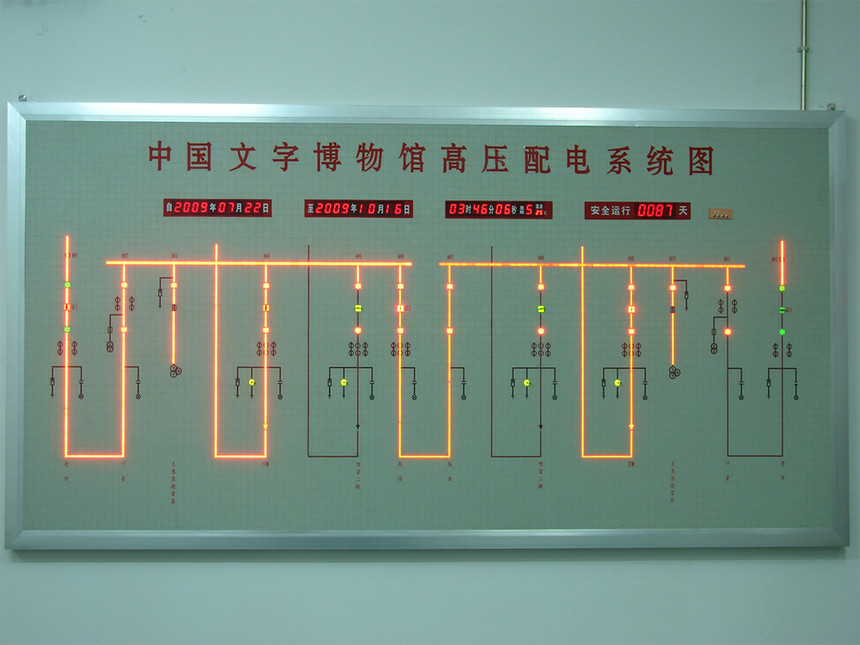

One: Wall-mounted LED Strip Display Screen Body
1. Screen body utilizes44*76Aluminum alloy assembled.
2. Frame constructed25*38Aluminum alloy connections, between the panel and the frame50mm×8mmDual-head cymbal bolts for connection and fixation, adjustable front and rear.
2. Wall-mounted LED Strip Simulated Screen Panel
1. Panel is made of25mm×25mmModular assembly.
2. Modular materials are made from imported raw materials.ABSInjection-molded, with10Year-round color retention, antistatic properties, etc.
3. Individual module flatness tolerance ≤0.1mm；
4. Gap between adjacent modules ≤0.1mm；
5. Flatness tolerance of adjacent modules ≤0.2mm；
6. Module colors are in international gray (or as provided by the customer) and are consistent, without any reflections or scratches.
7. Flame Retardant Oxygen Index: ≥27；
8. Graphics symbols are made using die-casting, screen printing, and engraving techniques.
9. Wire Symbol Width6-9mmLine symbol width3-5mm；
10. Line Width Tolerance ≤0.05mm；
11. Linearity of the line is within1000mmWithin the scope ≤2mm；
12. The large characters are made of red acrylic.
Section 3: Wall-mounted LED Strip Display Original Components
Lighting:
(1) Switches and circuit breakers are indicated with bi-color lights,Red and green states;
(2) LED Display Lifespan ≥20000Hour(s)
(3) Rated DC Voltage24V± Allowable deviation5%；
(4) Harmonic Content <5%；
(5) Uniform Brightness ≥80cdm2；
(6) All pre-shipment tests exceed72hMeets technical requirements.
2. Light-up Tape
(1) LED strips are displayed in single-color lighting, voltage graded.
(2) LED Strip Display Lifespan ≥20000Hour(s)
(3) Rated Direct Current Voltage24V± Allowable deviation5%；
(4) Harmonic Content <5%；
(5) Uniform Brightness ≥80cdm2；
(6) All pre-shipment tests exceed72hMeets technical requirements.
3. Safe Operation:
(1) Light display lifespan ≥20000Hour(s)
(2) Rated DC Voltage220V± Allowable deviation5%；
(3) Harmonic Content <5%；
(4) Uniform Brightness ≥80cdm2；
(5) The perpetual calendar automatically recovers from power loss.
Four: Wall-mounted LED Strip Cable Simulated Screen Cable
1. Utilizing2Core-screen shielded cable
2. Solderless connection
3. Wire bonding method
4. Strong tensile strength; internal fibers are not prone to breakage.
