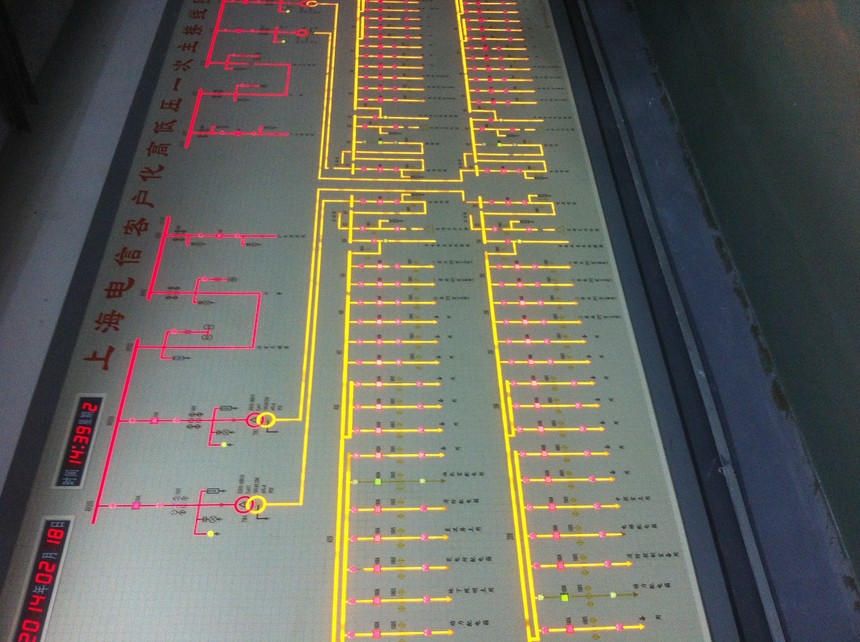

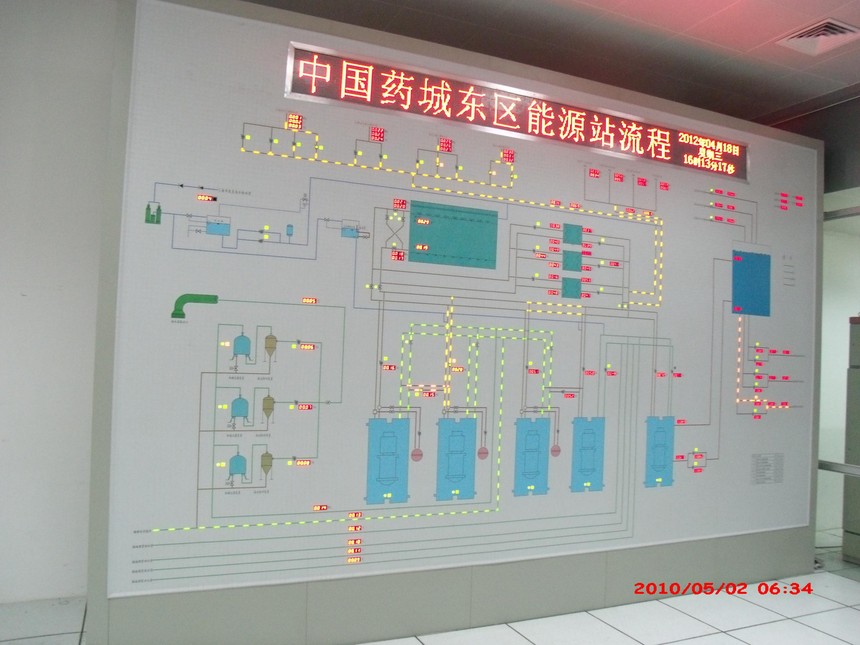

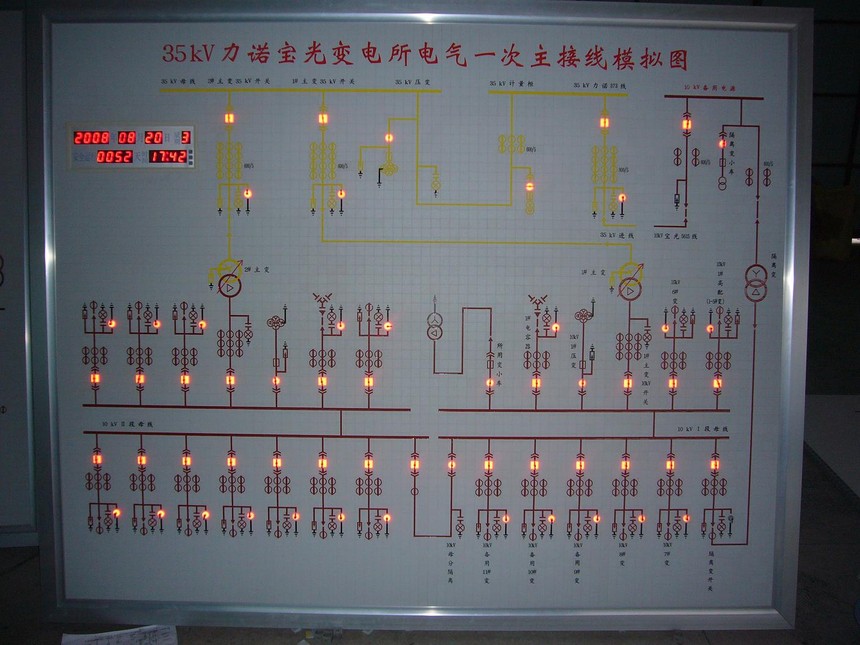

One: False Alarm Prevention Simulation Screen Panel

1. Display body utilizes44*76Aluminum alloy assembled.

2. Frame construction25*38Aluminum alloy connections, between the panel and the frame50mm×8mmDual-head gong lock for connection and fixation, adjustable front and back.

Section 2: False Alarm Prevention Simulation Screen Panel

1. Panel material used25mm×25mmModular assembly;

2. Modular materials are made from imported raw materials.ABSInjection molded, with10Year-round colorfast, antistatic features;

3. Individual module flatness tolerance value ≤0.1mm；

4. Gap between adjacent modules ≤0.1mm；

5. Adjacent module flatness tolerance ≤0.2mm；

6. Module colors are uniform and consistent in international gray (or as provided by the customer), free of reflections and scratches.

7. Flame Retardant Oxygen Index ≥27；

8. Graphics symbols are manufactured using die casting, screen printing, and engraving techniques.

9. Line Symbol Width6-9mmLine symbol width3-5mm；

10. Line Width Tolerance ≤0.05mm；

11. The straightness of the lines at any point1000mmWithin the scope ≤2mm；

12. Large characters are in bold Song style in red.

Section 3: Original Components for False Alarm Prevention Simulation Screen Display

Luminaires:

(1) Switches and circuit breakers are indicated with bi-color lights,Red and green states;

(2) LED Display Lifespan ≥20000Hour(s)

(3) Rated DC Voltage24V± Allowable deviation5%；

(4) Harmonic Content <5%；

(5) Uniform Brightness ≥80cdm2；

(6) All pre-shipment tests exceed72hMeets technical requirements.

2. Safe Operation:

(1) Lifespan of lighting display ≥20000Hour(s)

(2) Rated Direct Current Voltage220V± Allowable deviation5%；

(3) Harmonic Content <5%；

(4) Uniform Brightness ≥80cdm2；

(5) The perpetual calendar automatically recovers power-down memory.

Four: False Alarm Simulation Screen for Preventing Misoperation and Alarm on Simulation Disk

Develop operational error prevention procedures in accordance with the safety operation regulations of the State Grid Corporation.

(2) Upon operation errors, an audio alarm will prompt "Incorrect step operation."

(3) High capacityCPUProcessor

(4) Maintenance-free, long service life10Over one year.

V. False Alarm Prevention Simulated Screen Cable

1. Utilize2Core-screen shielded cable

2. Weldless connection

3. Overline connection method

4. High tensile strength with strong elasticity, minimizing the risk of internal line breakage.
