I. Product Introduction：

The pct high-pressure aging box is suitable for testing the sealing performance of products in industries such as defense, aerospace, automotive components, electronic accessories, plastics, magnets, pharmaceutical circuit boards, multi-layer circuit boards, ICs, LCDs, magnets, lighting fixtures, and lighting products. It is used for accelerated life tests of related products, applicable in the product design phase to quickly expose product defects and weaknesses. It tests the resistance and airtightness of the products.

II. Product Features:

The inner lining is designed with a double-arc structure to prevent condensation droplets during testing, thereby avoiding direct impact of overheated steam on the product, which could affect the test results.

② Utilizing an efficient vacuum pump to achieve the optimal pure saturated steam state inside the chamber.

③Equipped with a 7-inch true-color touch screen, features 250 sets of 12,500-program segments, with USB curve data download function, and RS-485 communication interface.

④Automotive-grade silicone overall sealing strip, excellent airtightness and durability.

⑤ Fully automatic water refilling function, front-mounted water level confirmation.

⑥ Directly measures using a dry-wet bulb sensor (control modes include: dry-wet bulb, unsaturated, moist-saturated, etc., with 3 modes).

⑦ Case pressure resistance (140℃): 2.65 kg, meets water pressure test of 6 kg.

⑧ Safety relief button, two-stage automatic pressure relief button for emergency safety device.

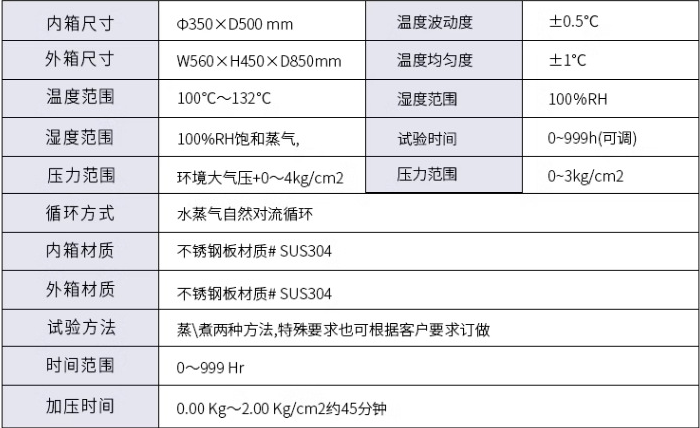

III. Product Specifications:
