I. Product Features:
UV Aging Box Equipment featuring sun UV simulation, low cost of maintenance, ease of use, automatic operation with control, high degree of automation in testing cycles, good light stability, and high reproducibility of test results.
Section 3: Overview of UV Aging Test Chamber
Utilizing a fluorescent ultraviolet lamp that mimics the UV spectrum segment in sunlight, combined with temperature control and humidity supply devices to simulate the material treatment process.Sunlight (UV spectrum) with high temperature, high humidity, and condensation causing discoloration, brightness, intensity decline, cracking, flaking, powdering, and oxidation damagesExposure to factors such as rain, darkness, and the wet cycle, while also leveraging the synergistic effect between ultraviolet light and moisture, enables the material to possess a single photoenergy resistance.Single moisture resistance weakened or失效，widely used for evaluating the material's resistance to climatic conditions, the equipment has the capability to provideUV Simulation Only, low cost of maintenance and easy to use, equipment with automatic operation control, high degree of automation in the testing cycleHigh, good light stability, and high reproducibility of test results.

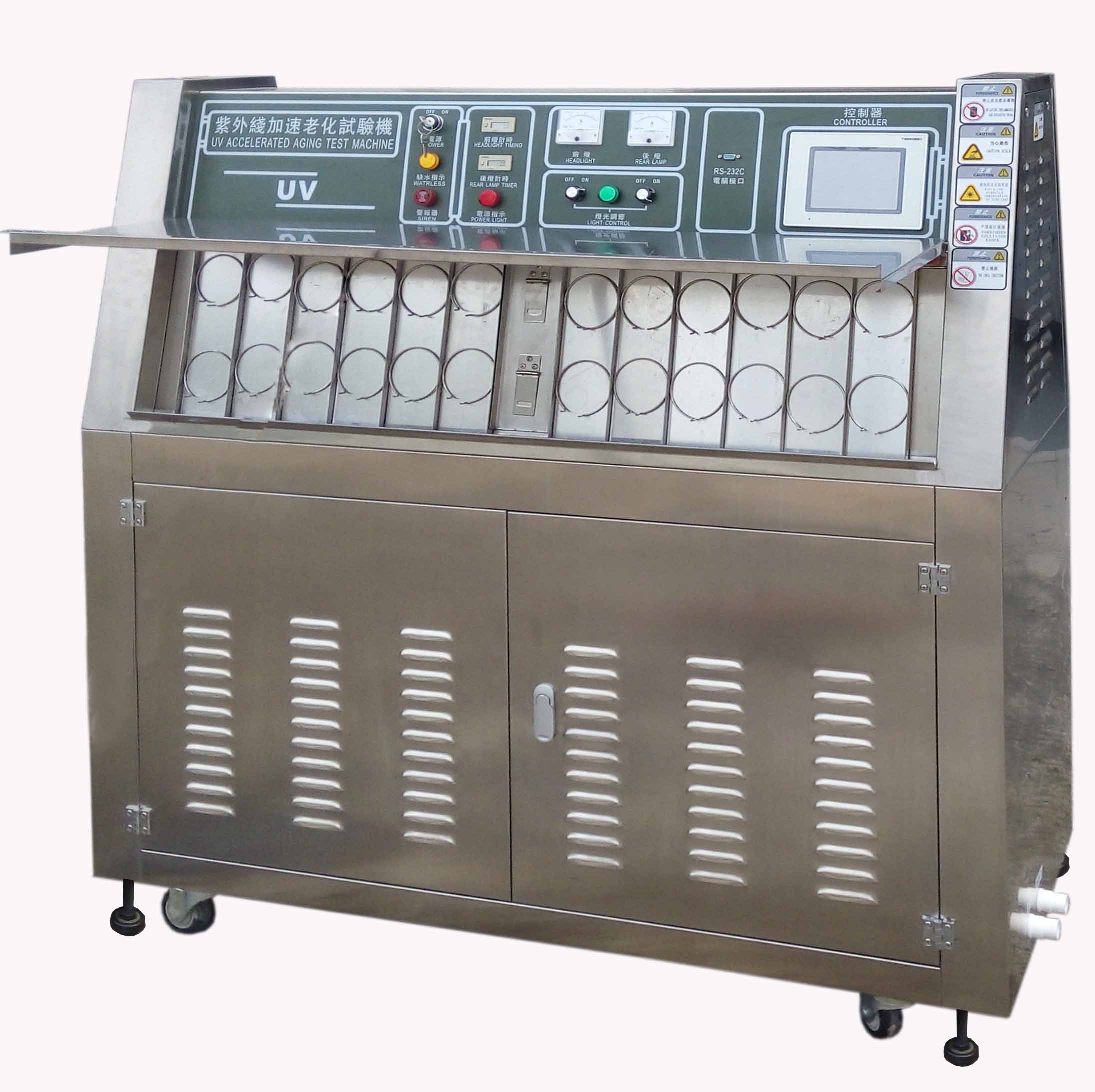

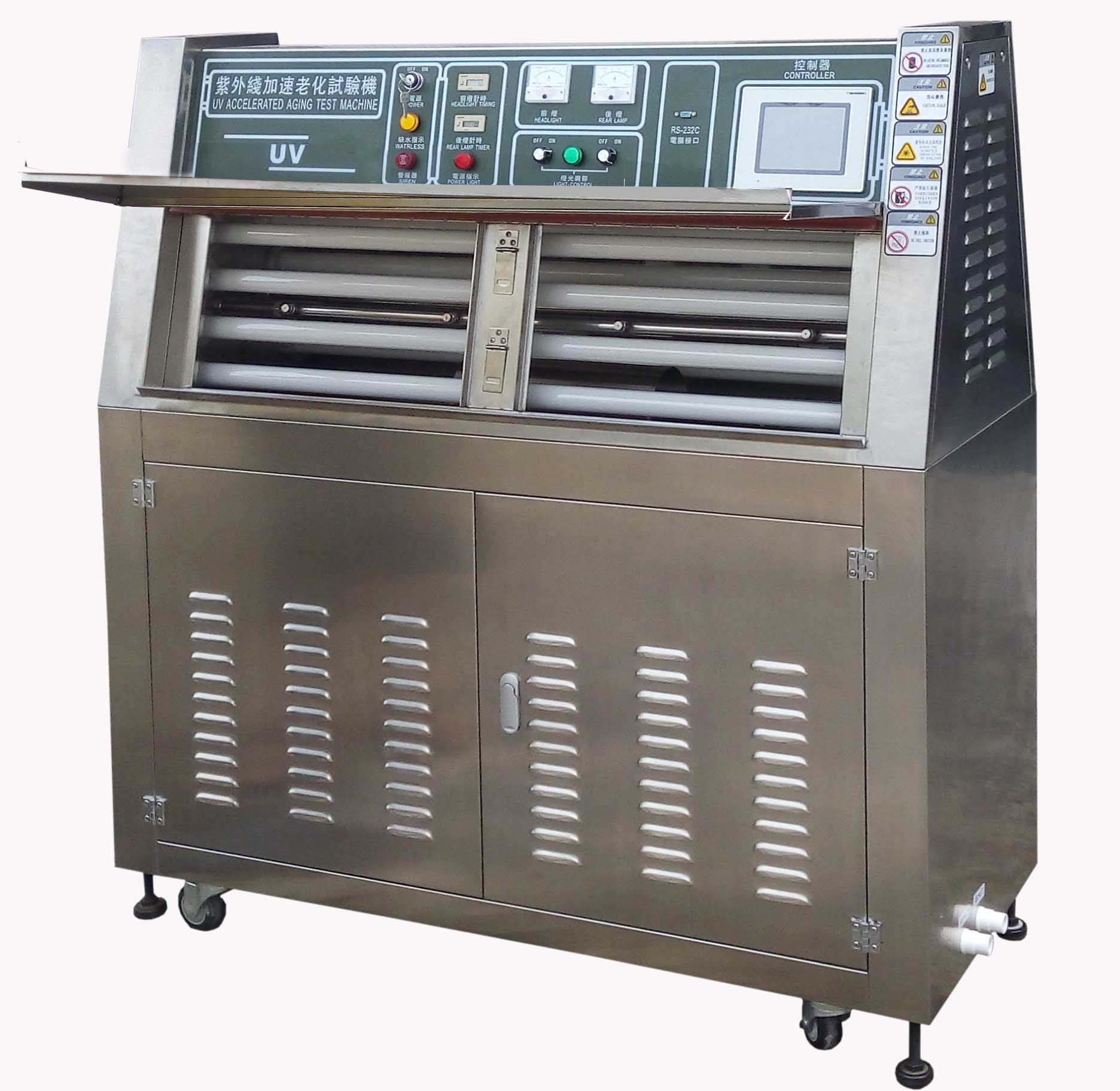

FourModel: ZT-UV-50A
Five: UV Aging Resistance BoxStructural Materials:
1. Inner box dimensions: W1170 x H500 x D450 (Custom sizes available)
2. Dimensions: W1480 x H1300 x D550 (Custom sizes available)
3. Body Material: SUS304# stainless steel plate.
4. Sample Rack: Aluminum alloy framed base with a viewing panel
5. Control Instrument: Imported Color Touch Screen Intelligent Program Controller
6. Irradiation Tube: UVA-340 or UVB-313, 8 tubes (optional), 4 tubes per side, total of 2 sides
7. Radiometer: UVA/UVB Ultraviolet Radiometer (optional)
8. Capable of bi-directional online connectivity (RS232 communication interface, optional)
9. Overload and short-circuit alarm, over-temperature alarm, and water shortage protection for power supply leakage circuit breaker control loop
Six.Technical Specifications:
Temperature Range: RT (Room Temperature) to +70℃
2. Light cycle temperature: 45~+70℃
3. Condensation cycle temperature: 40~+60℃
4. Humidity Range: 90%RH or above
5. Temperature Uniformity: ±2℃
6. Temperature fluctuation: ±0.5℃
7. Tube Center Distance: 70mm
8. Center distance between the test sample and the lamp tube: 50mm ± 3mm
9. Irradiance: 1.5W/m² (adjustable)
10. Adjust the test cycles for light, condensation, and spray testing.
Tube: L=1200/40W, 8 pcs (UVA-340/UVB-313 lifespan over 1600h)
Control Instrument: Color TouchCanada（RUERSI3861PSmart Control Instrument。
13. Temperature Control Method: PID Auto-Tuning SSR Control
14. Standard Sample Size: 75x290mm (Special specifications must be stated)
15. Sink Water Depth: 25mm Auto-Controlled
16. Effective Irradiation Area: 900x210mm
17. UV wavelength range:The UVA-340 range simulates short-wave ultraviolet light from 290 to 400 nm, up to the cutoff point of sunlight.
UVB-313, with a range of 280~315nm, is primarily used for quality control research and development, or for testing the weather resistance* of materials.
18. Test Duration: 0~999H
19. Irradiated Blackboard Temperature: +50℃ ~ +70℃
20. Standard Sample Racks: 24 Sets
21. The unit features an automatic sprinkler system.
