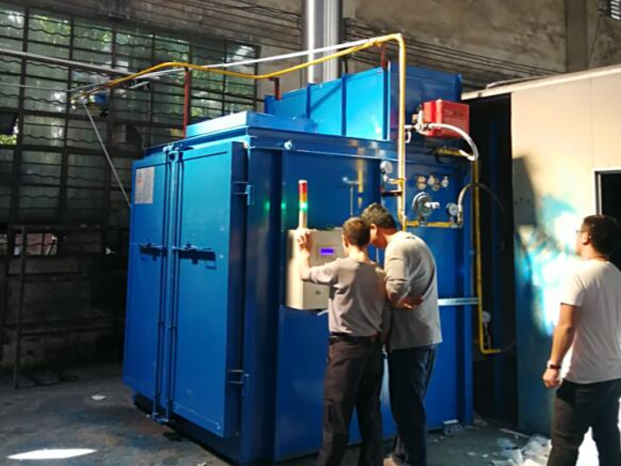

The Hot Cleaning Furnace is a new type of specialized equipment designed for cleaning paint return parts and fixtures on painting lines. It is widely used in industries such as air conditioners, refrigerators, microwave ovens, electric fans, computers, and home appliances, as well as in motorcycle, bicycle, automotive, steel furniture, telecommunications, and power transmission industries, achieving comprehensive performance at standard levels. The equipment boasts excellent environmental performance and high economic benefits. After inspection by the environmental protection department, the emissions of pollutants like SO2 and NO are only 1/10 of the national standard, and its operating cost is merely 1/8 of paint strippers.
I. Product Application

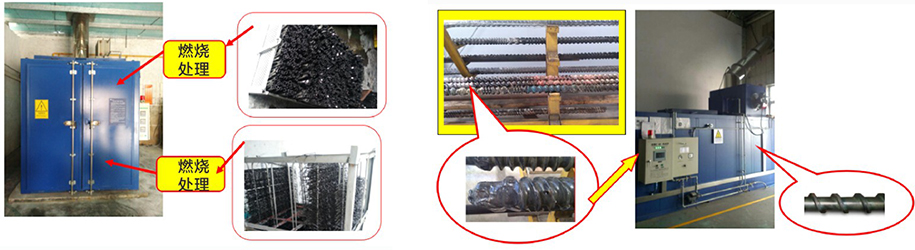

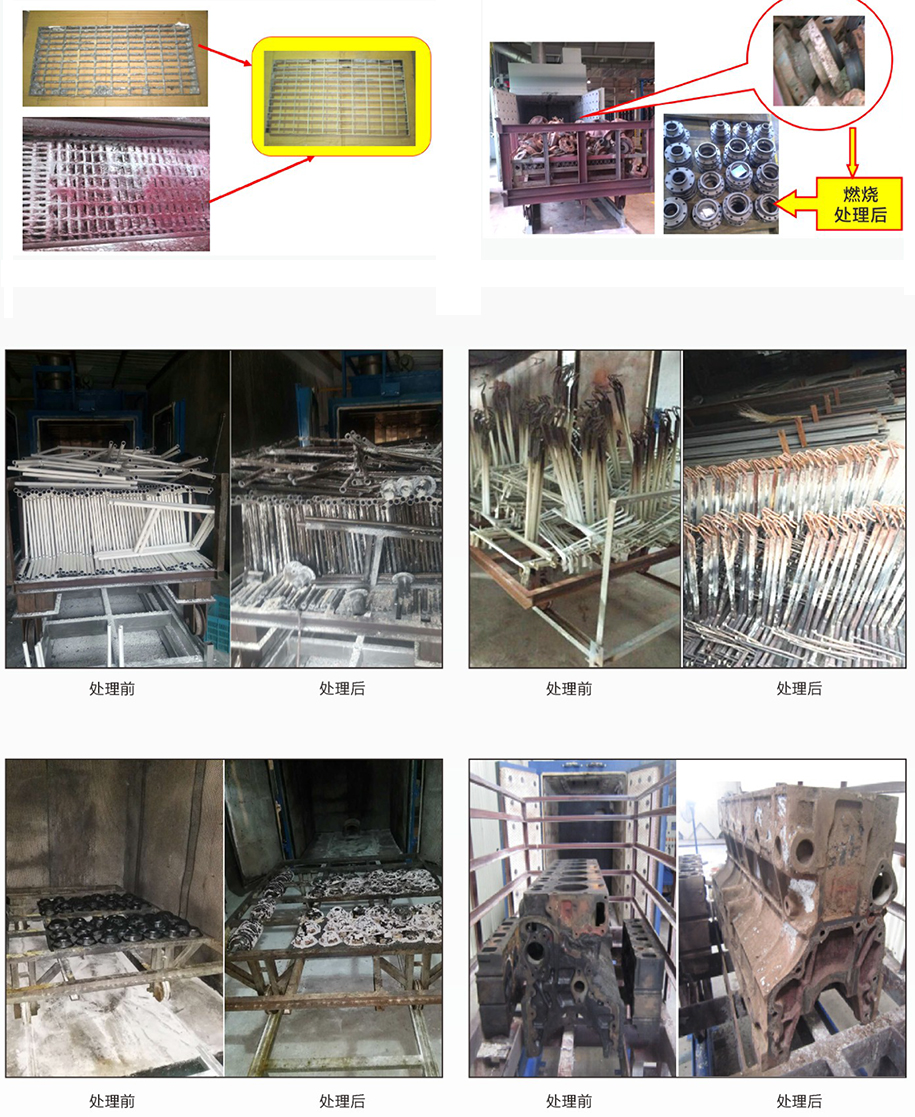

1. Remove the continuously thickening coating from the spraying fixtures and clamps without altering the mechanical properties of the fixtures.
2. Complete and thorough stripping of non-conforming paint or powder coatings from the surface of metal components, with no damage to the workpiece.
3. Clean the paint layer adhered to the filter mesh and fan impeller of the water curtain cabinet.
4. Clean and remove winding and adhered organic substances from wires, cables, transformers, motors, and printing rollers.
5. Clean and remove oils, grease, and other organic substances from components such as the engine, crankshaft, housing, piston rings, etc.

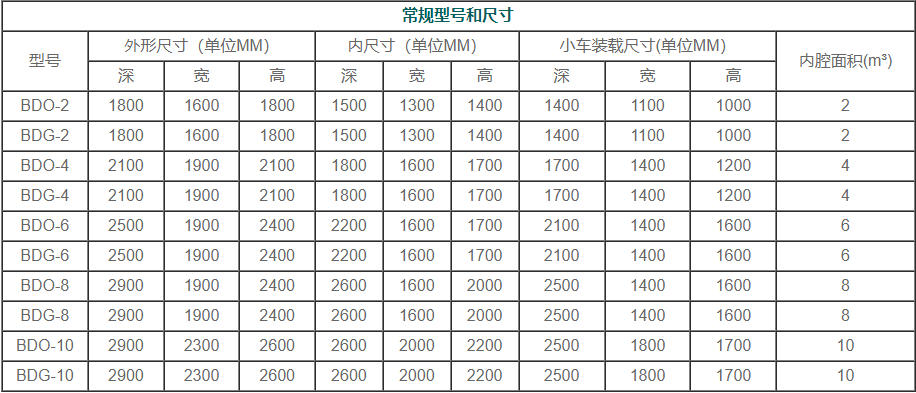

Section 2: Specifications and Data

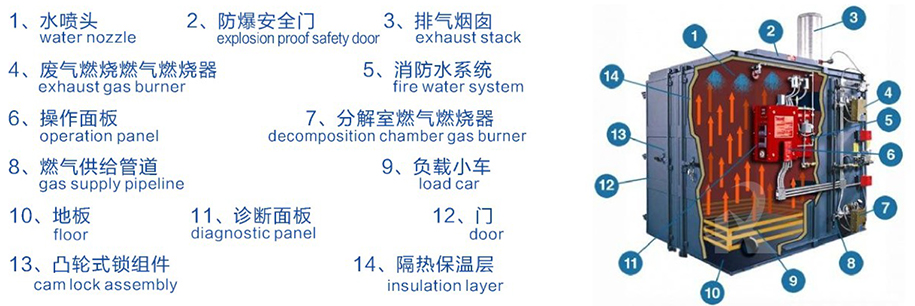

Cabinet: Heavy-duty steel structural steel, supported by square steel and channel steel. Full welded construction with sealed contacts to prevent fuel loss due to leaks.
Floor: Rigid refractory castable, 4"-5" (10-13cm) thick, reinforced with steel structural channels. Easy to remove ash.
Door: Equipped with snap-locking components and high-strength seals. The door can open over 180 degrees, ensuring safety and reliability with ease of use and durability.
Explosion-proof: Unique gravity-sealed top automatically releases excess pressure, then closes to prevent air from contacting flammable materials.
Adjacent Insulation: The furnace wall, roof, and door are covered with 2-3 layers of lightweight ceramic fiber blanket (10-15cm thick), secured with stainless steel pins and stainless steel mesh inserts without asbestos. Metal sleeves prevent mechanical injury to the operator from the insulation panels. Clean the furnace insulation up to 2300°F (1275°C).
Exhaust:natural gas(Gas pressure requirement: 5-8KPa), or light diesel.
Power Supply: 220-250V, 50Hz, Single Phase, 5-10A
Water Supply: Minimum pressure 40 psi, maximum pressure 100 psi. Minimum flow rate 5 gpm (15 liters/minute).
Normal Cycle: 3-5 hours (including cooling time) with automatic control.
Normal Cycle Temperature: 750-800°F (400-430°C)
Pollution Standards: Compliant with new environmental protection standards.
Safety and Health Standards: Compliant with new OSHA standards. Meets NFPA 86 requirements.
Insurance Standards: Compliant with most national and local regulations.
Corrosion-resistant vapor barrier: Prevents corrosive vapors from condensing in the furnace. Significantly extends the lifespan of the blast furnace.
Combustion Chamber Protection: Heavy-duty steel barriers are installed around the upper and lower combustion chambers to prevent accidental or careless collisions.
Multiple models of trolleys: Various models of trolleys are available to meet your diverse load requirements (standard containers).
Gas burner: Designed specifically for furnace use. Features include an excellent non-clogging nozzle design, ease of maintenance, and heavy-duty construction. The burner's automatic cooling system suppresses nozzle damage.
