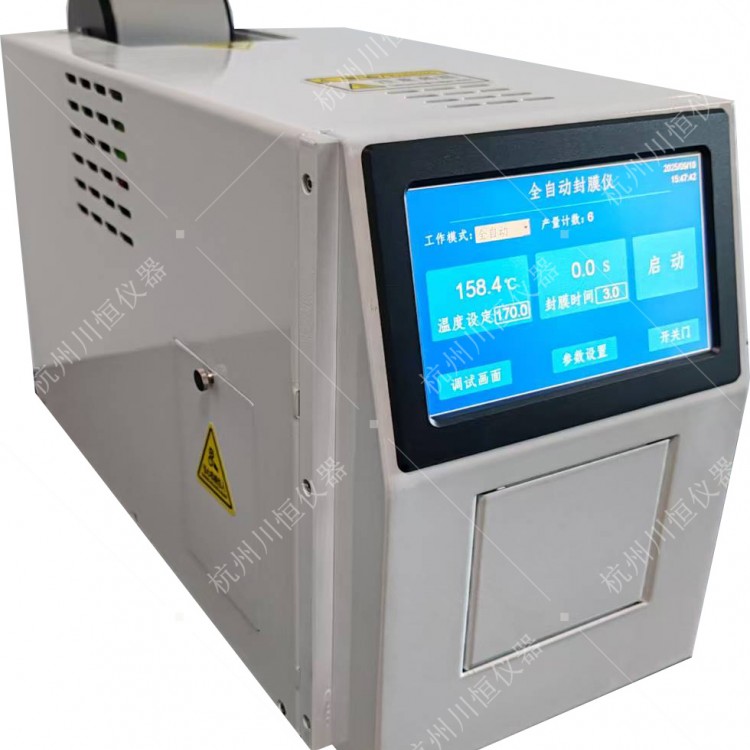

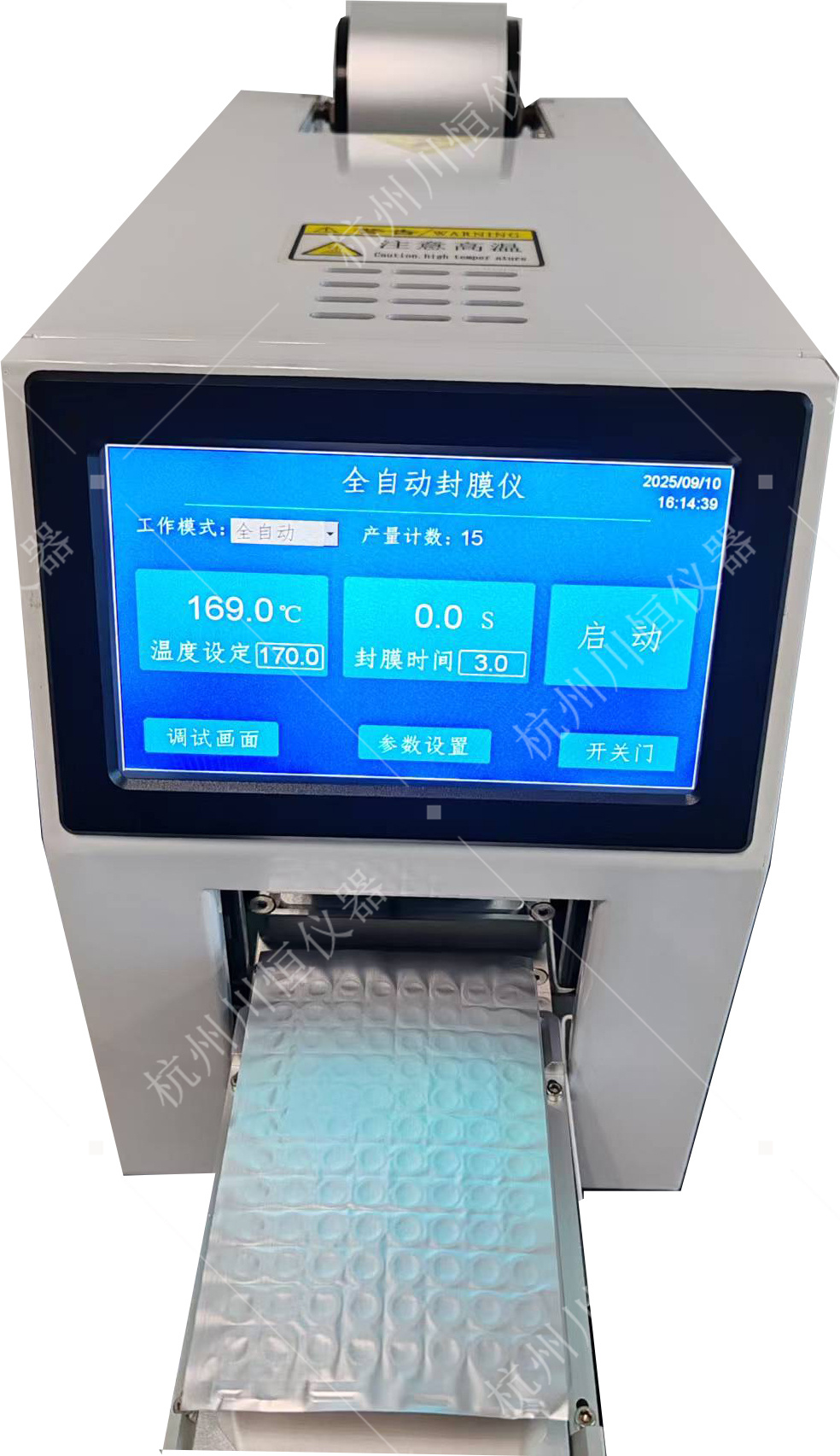

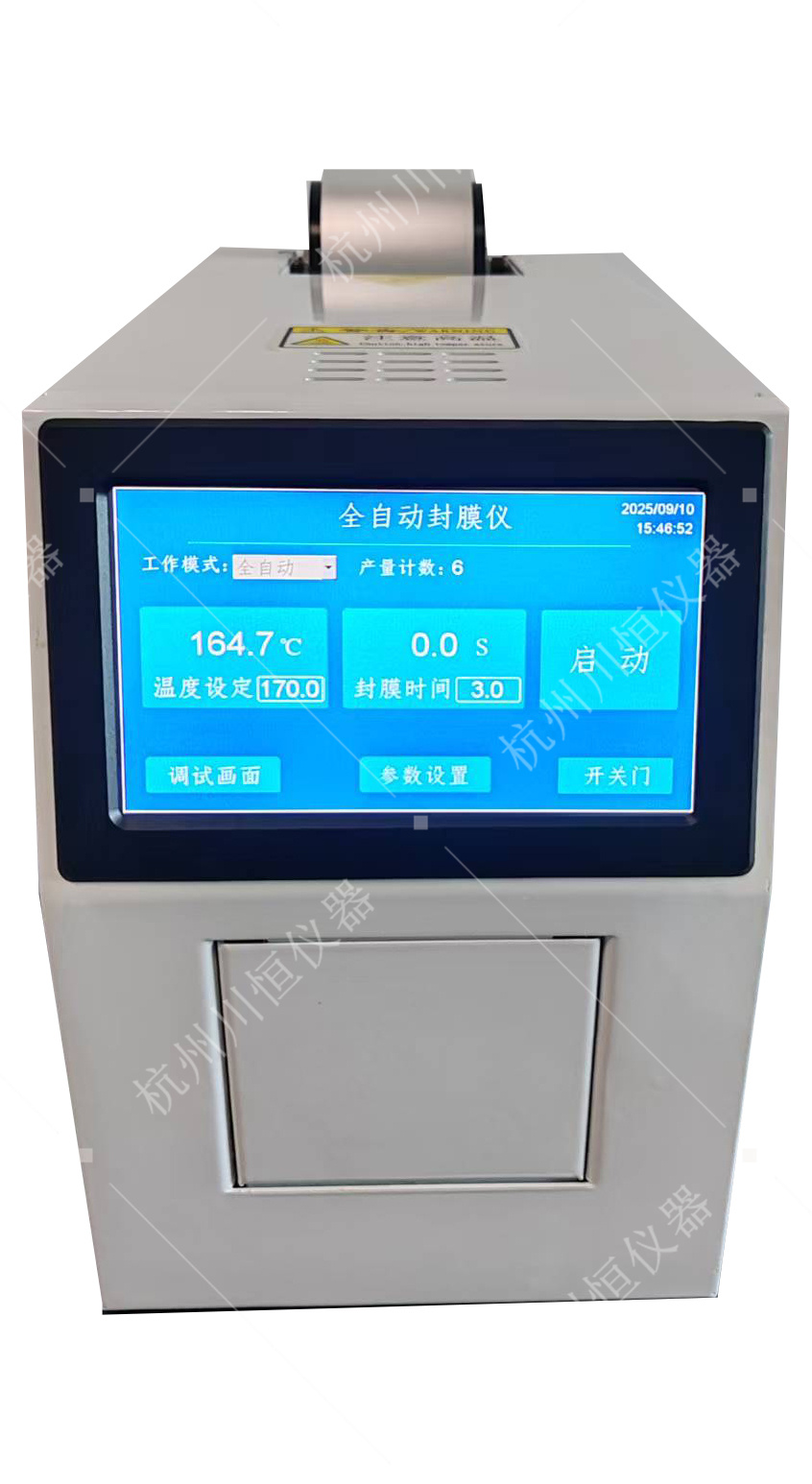

All-in-One Sealing Machine CNZFM-2000 Compatible with QPCR Cold Sealing FilmExtremely useful, it completely resolves the core pain points of traditional manual sealing, such as low efficiency and unstable sealing quality. Simply place the microporous plate inside, press a button, and the machine will automatically complete the entire process of precise alignment, film pressing, and heat sealing (or bonding). Its biggest benefit is the significant increase in efficiency, especially suitable for high-throughput screening, clinical testing, and other scenarios that require processing large numbers of samples. It can complete what was once a time-consuming and tedious task in just a few seconds, greatly freeing up human resources.
What's more, it excels in ensuring experimental quality. Full automation eliminates issues like uneven sealing, bubble formation, or poor sealing caused by human error, effectively preventing sample evaporation and cross-contamination, significantly enhancing the repeatability and reliability of experimental results. The intelligent touch panel usually saves multiple programs, is compatible with different plate types and film materials, operates simply, and maintains excellent consistency. In summary, it is a reliable tool that can significantly enhance the automation level and data quality of a laboratory.
Fully Automatic Sealing Film Machine CNZFM-2000, Compatible with QPCR Cold Sealing FilmKey Features:
1. Coated and compatible with QPCR cold-seal films; users can freely set and choose to use.
2. The software design features an easy-to-understand, learn, and operate color screen human-machine interface, with one-touch start-up and real-time display of the operation process.
3. Compatible with various sizes of microplate, deep-well plate, 384, 48, 96 PCR plates, 8-tube strips, PCR plates, enzyme-linked plates, cell culture plates, etc.
4. Utilizes roll film feeding for continuous heat sealing.
5. Microprocessor-controlled temperature with precise accuracy, a balanced sealing plate structure ensures consistent sealing film effect.
7. Adapter Options: Equipped with various types of adapters, offering a wider range of compatible consumables and broader application of the instrument.
8. Can be set for automatic entry into deep sleep mode at specified times.
Full-Automatic Sealing Film Machine CNZFM-2000, Compatible with QPCR Cold Sealing FilmTechnical Specifications:
Model: CNZFM-2000
2. Applicable Range: Various sizes of deep well plates, 384, 48, 96 PCR plates, 8-tube PCR plates, enzyme-linked plates, cell culture plates, etc.
3. Laminating Material: Piercing Film/Aluminum Foil Film/High-Temperature Sealing Film/Transparent Film
4. Board Material: PP (Polypropylene) / PS (Polystyrene) / PE (Polyethylene)
5. Film Type: 78mm-80mm Roll Film, compatible with Sheet Film Sealing Film
6. Seal Height: Automatically recognizes height; no adjustment required.
7. Heat Sealing Height: Adaptive Height Auto-Adjustment
8.升温 Rate: 60 seconds to 100℃, 300 seconds to reach 280℃
9. Automatic In/Out Hopper: Smart motor control for automatic in/out hopper door
10. Seal Time: adjustable from 0.1 to 10 seconds
11. Heat-sealing temperature: adjustable from room temperature to 280℃
12. Temperature Control Accuracy: ±1℃
13. Seal Time: Adjustable from 0.3 to 10 seconds
14. Gas Source: Built-in Gas Supply
15. Counting function, real-time display of shrink-wrap quantity, automatic tally
16. Capacity Reset: The sealing film statistics can be reset to zero with one click at any time.
17. External Interface: Capable of integrating with other automated equipment
18. Dimensions: 500*220*300mm
