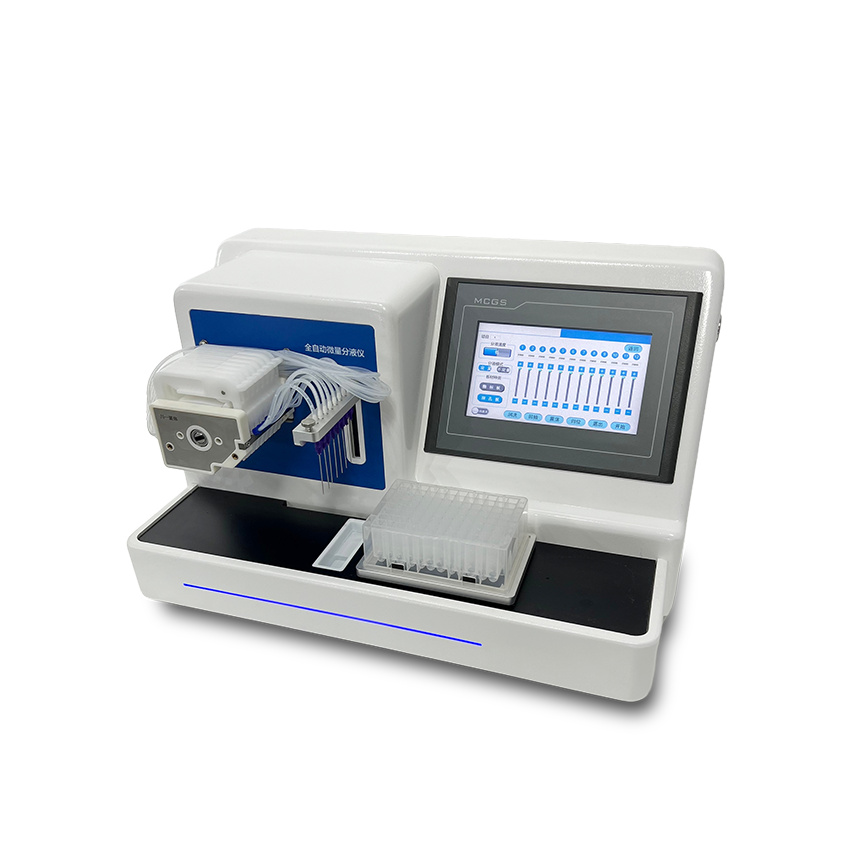

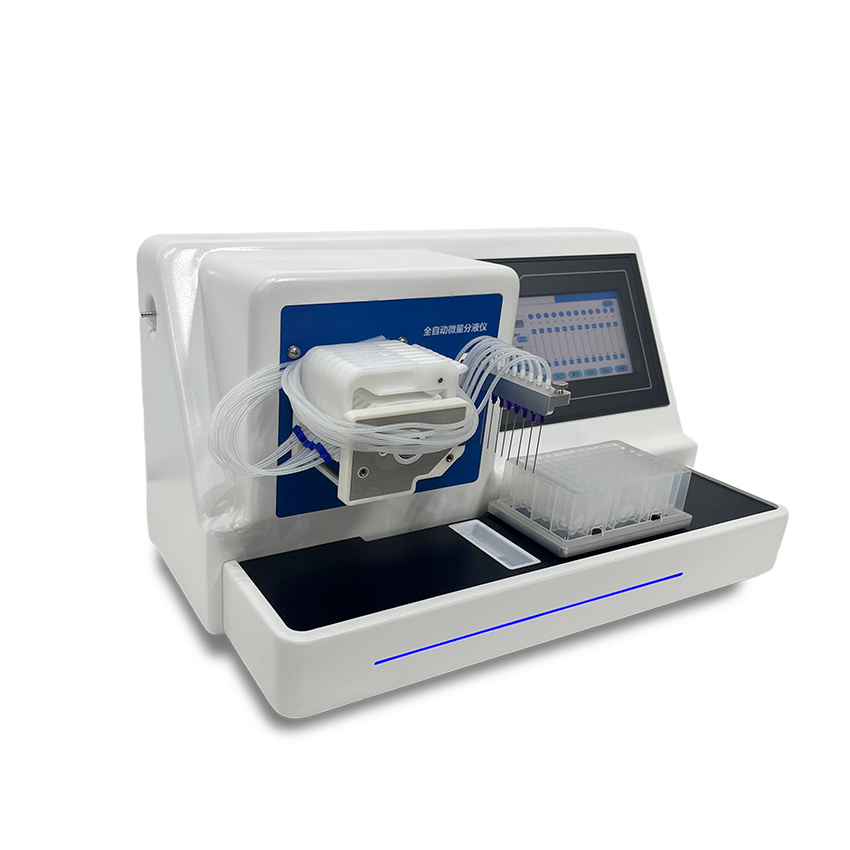

Automatic Liquid Separation Instrument CNFY-800 Precise and Fast 8-Channel SeparatorWith its efficient 8-channel parallel dispensing design, it significantly enhances the speed and scale of liquid handling. The device can simultaneously control eight independent pipetting channels, allowing for the dispensing of an entire row of microplates or a large number of sample tubes in a single run, transforming previously tedious and repetitive manual steps into a one-touch automatic process. This greatly reduces the time required for experiment preparation, making it particularly suitable for high-throughput sample processing applications such as large-scale screening, genomics, or clinical testing.

While achieving high-speed liquid separation, the CNFY-800 also ensures precision and stability in the process. Each channel utilizes high-precision syringe pumps and piston-driven technology, combined with intelligent liquid level detection and anti-drip design, guaranteeing excellent accuracy and repeatability in liquid distribution from micro-liter to milliliter scales. This precise control capability effectively reduces data deviation caused by human operation or instrument errors, laying a solid foundation for the reliability of downstream experimental results.

In summary, the fully automatic liquid separator CNFY-800 seamlessly combines the rapid parallel processing capability of 8 channels with exceptional separation accuracy. It not only effortlessly meets the efficiency challenges of handling large volumes of samples but also satisfies the stringent accuracy requirements for liquid operations in fields such as life sciences and drug development. It has become an indispensable automated core equipment in modern laboratories for enhancing work efficiency and ensuring data quality.

Fully Automatic Fractionating Apparatus CNFY-800 - Precise and Fast 8-Channel FractionationKey Features:

1. The equipment employs a precise peristaltic pump for non-contact liquid separation, featuring a compact and exquisite design, suitable for use in a clean bench.

2. Equipped with a 7-inch color LCD touch screen, simple to operate; offers both fixed and variable volume splitting methods; allows for the addition of liquid in full sheets or any selected column.

3. High liquid separation accuracy, achieving less than 1.5% error within a 100µL volume on a 96-well plate, with the minimum liquid volume as low as 5µL, and a 100µL addition time of 12 seconds for a 96-well plate.

4. The liquid separation intensity has two adjustable levels, high and low, suitable for various experimental requirements.

5. Mobile waste liquid tanks for easy waste discharge, with the bottom of the tank capable of connecting to pipelines for automatic recycling of waste into waste bottles.

6. After decanting, the liquid can be subjected to shaking, retraction, and rinsing functions.

7. Compatible with 96-well plates, 48-well plates, 384-well plates, 8-tube PCR tubes, 96 PCR plates, enzyme-linked plates, various test tubes, centrifuge tubes, EP tubes (compatible with corresponding racks)

Fully Automatic Fractionating Instrument CNFY-800 - Precise and Fast 8-Channel FractionationTechnical Specifications:
