Temperature fluctuation5。
Product Details:
Product Introduction:

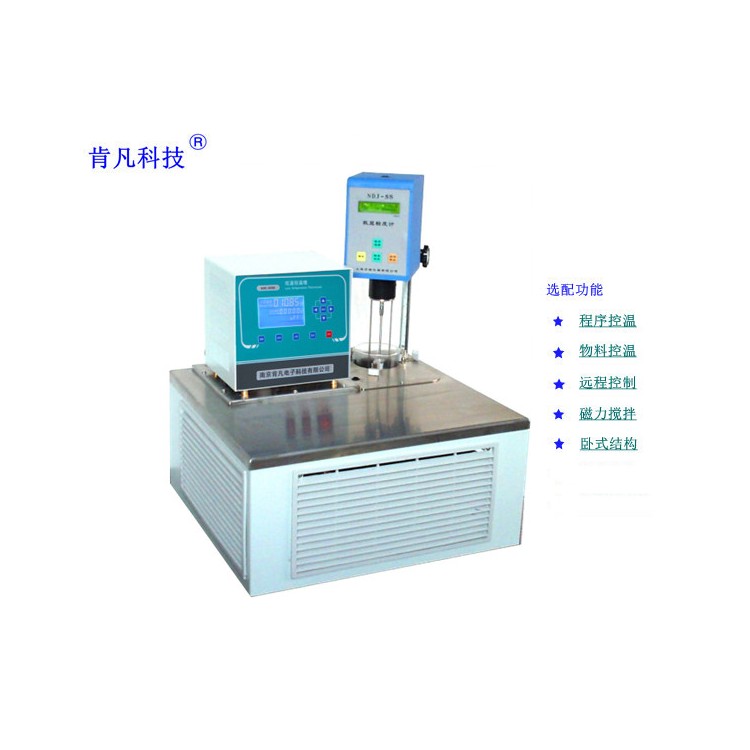

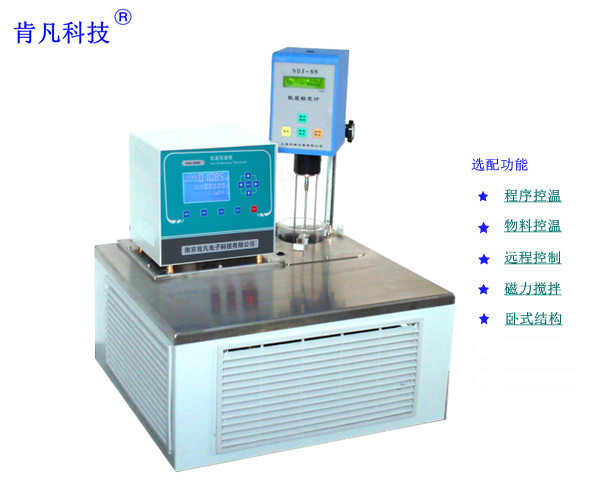

The Kenfan Technology viscometer temperature bath is widely used for the viscosity measurement of various liquids such as oils, paints, food, medicines, cosmetics, and adhesives. It is an excellent companion for rotational viscometers and an indispensable precision instrument in quality control and testing analysis for product quality.
Product Features:
Control System:
♦ Large screen LCD display with digital resolution of 0.01°C. Equipped with drainage valve, optional with casters upon customer's request.
♦ The newly developed temperature control technology for specialized software, featuring high-performance temperature sensors and all imported electronic components.
♦ The software system conveniently corrects the error between displayed and actual temperature, with a temperature correction resolution up to 0.01℃, ensuring accurate and error-free temperature readings.
♦ Over-temperature protection and alarm with audible buzzer, temperature for over-temperature alarm can be set, and load will automatically disconnect upon over-temperature.
♦ The intelligent software boasts strong temperature stability, with PID that can automatically adjust and optimize parameters according to different mediums. Special users can manually re-adjust the parameters.
♦ Utilize software digital lockout control systems to set values, preventing unauthorized personnel from performing erroneous operations, ensuring accurate and error-free data during the experimental process.
♦ Optional RS232 or RS485 communication interface for long-distance data transmission and control.
♦ Precise temperature control ensures rapid and stable temperature in the work槽. Press the "Power" button to turn off all functions of the instrument.
♦ Safety Protection Device
1. Features power failure protection
2. Features upper and lower temperature alarm settings
3. Low-water Level Protection and Alarm Function
4. Temperature失控protection and alarm function
5. The heating unit features low-water-level dry-burn prevention and explosion-proof capabilities.
Refrigeration System:
♦ High-efficiency fully enclosed compressor unit with rapid cooling, featuring multiple protections such as overheat and overcurrent.
Recirculation System:
♦ Advanced internal and external circulation systems; the internal circulation ensures uniform and stable temperature, while the external circulation pump outputs a constant temperature liquid flow of 6L/min or 13L/min to establish an external constant temperature field. It can also serve as a cooling source to cool external experimental containers.
Interior and exterior materials:
♦ The inner lining and countertop are made of full stainless steel, while the housing is cold-rolled steel with powder coating, ensuring cleanliness, hygiene, beauty, and corrosion resistance.
