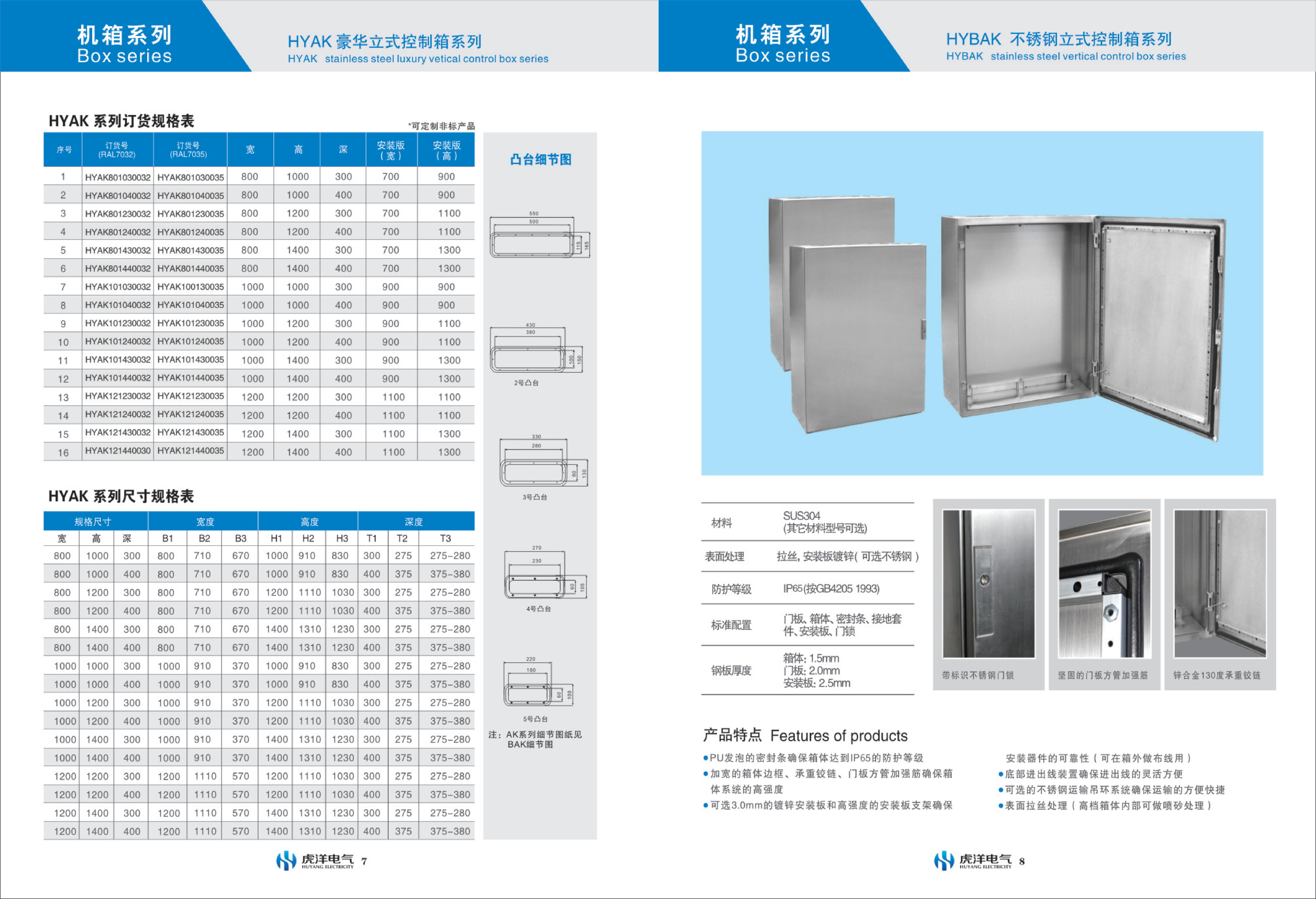

BAK Control Box Process Features and Performance:

●PU foam sealing strips ensure the case reaches IP56 protection level

● Wider body frame, bearing hinges, and door panel rib reinforcement ensure high strength of the container system

● Optional 3.0mm galvanized installation panel and high-strength mounting bracket ensure the reliability of installed components (can be used for wiring outside the box)

● The bottom line in/out device ensures flexible and convenient line in/out operations

● Optional stainless steel lifting ring system ensures convenient and quick transportation

●Surface brushed finish (high-end cabinets can be sandblasted inside)

Material: (Other material models available)

Surface Treatment: Brushed finish, zinc plated for mounting plate

Protection Grade: IP56 (as per GB4205-1993)

Standard Configuration: Door Panel, Body, Seal Strip, Grounding Kit, Installation Plate, Door Lock

Steel Plate Thickness:

Box: 1.5mm (optional 2.0mm)

Door Panel: 2.0mm

Installation Plate: 2.5mm (optional 3.0mm)
