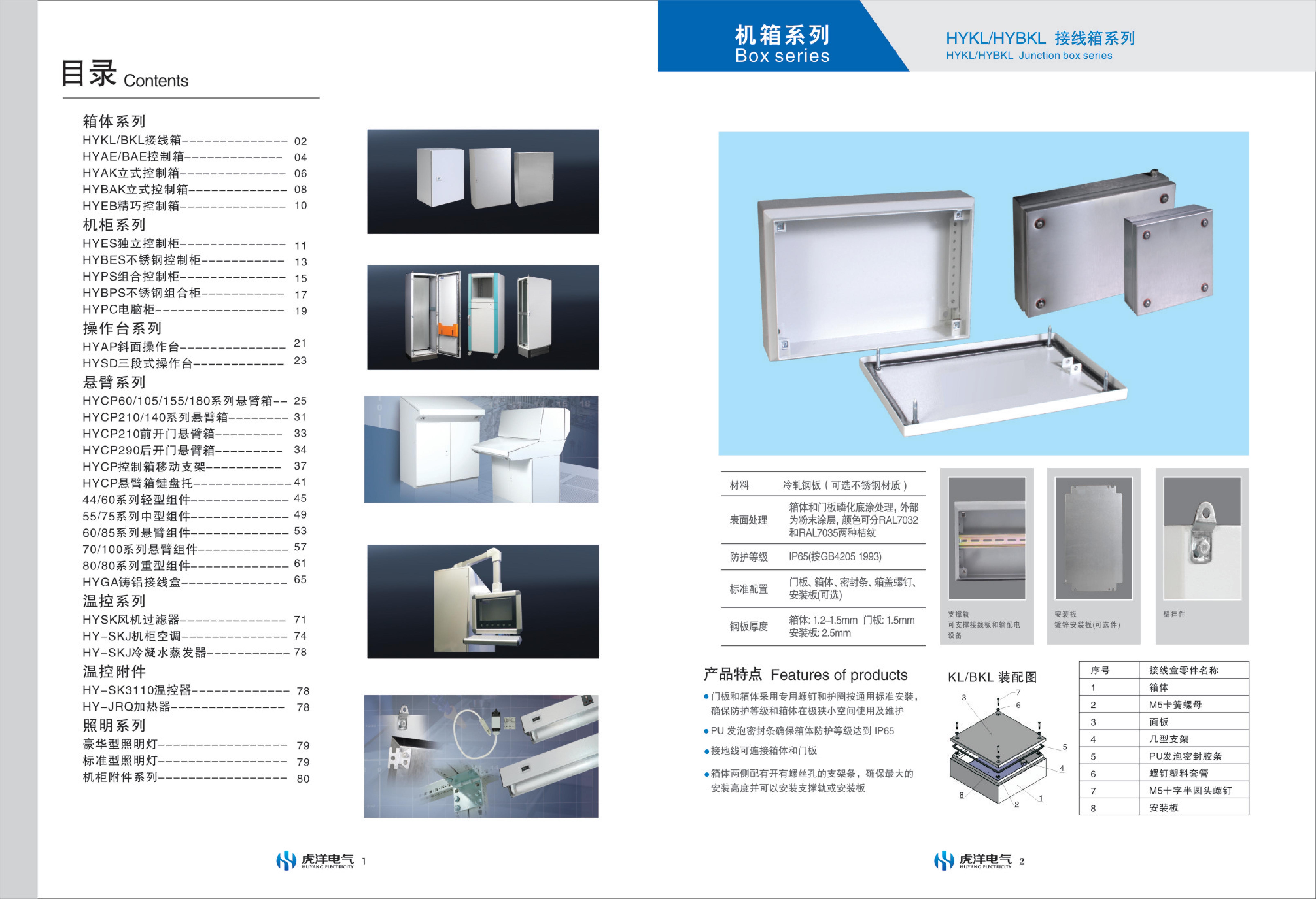

Control Box Craftsmanship and Performance Features:
●PU foam sealed strips ensure the housing achieves an IP56 protection level
● Wider body frame, load-bearing hinges, and door panel rib reinforcement ensure high strength of the body system
● Optional 3.0mm galvanized mounting plate and high-strength mounting bracket ensure the reliability of installed components (can be used for wiring outside the box)
● Bottom entry-exit line device ensures flexible and convenient entry-exit lines
● Optional stainless steel transport lifting ring systems ensure convenient and quick transportation
●Surface brushed finish (High-end enclosures can be sandblasted internally)
Material: (Other material models available)
Surface Treatment: Brushed finish, zinc-plated for mounting plates.
Protection Level: IP56 (According to GB4205-1993)
Standard Configuration: Door panel, cabinet, seal strip, grounding kit, mounting plate, door lock
Steel Plate Thickness:
Box: 1.5mm (optional 2.0mm)
Door panel: 2.0mm
Installation Plate: 2.5mm (optional 3.0mm)
