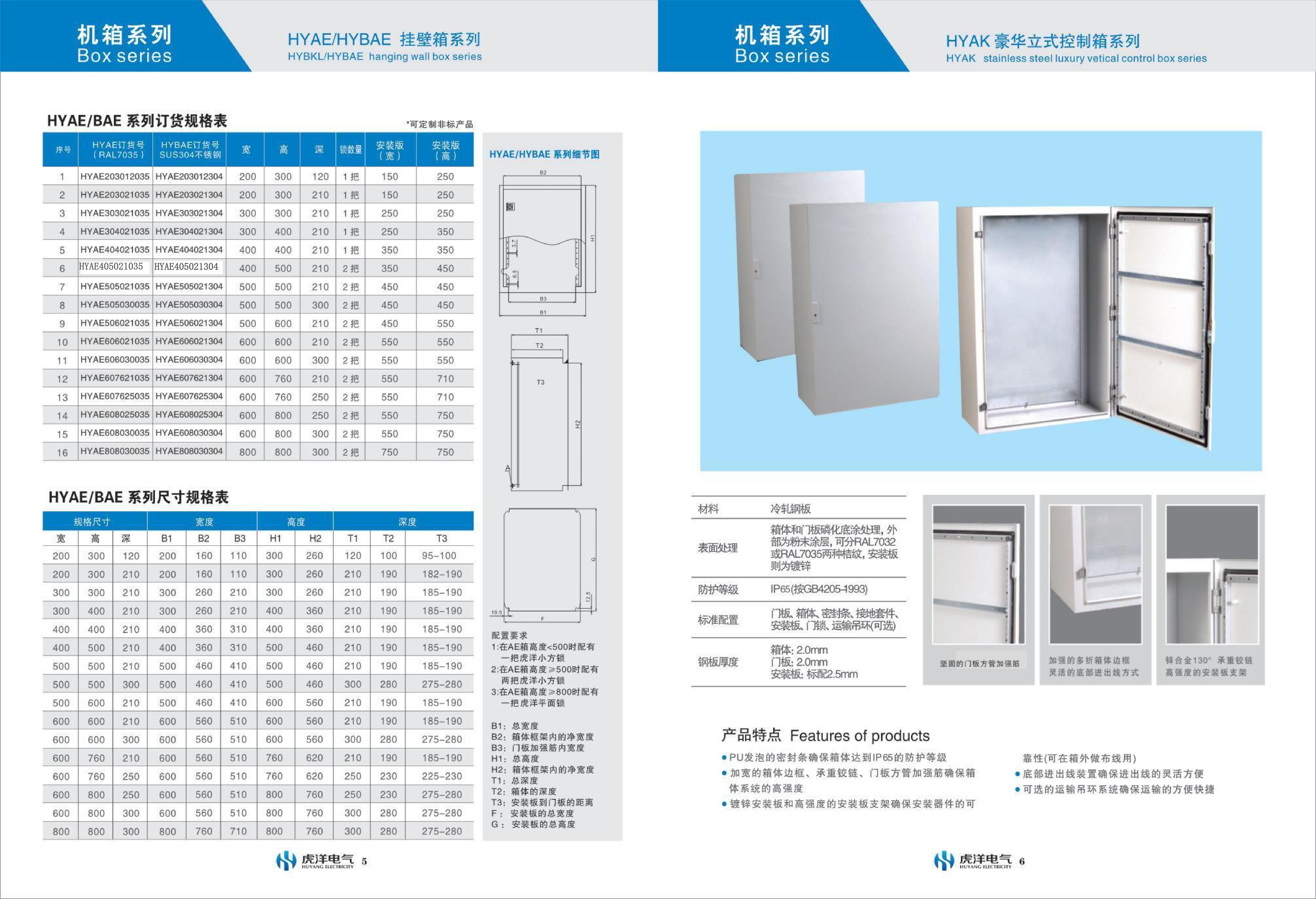

Control Box Craftsmanship and Performance Features:

●PU foam sealed strips ensure the housing reaches IP56 protection level

● Wider box body frame, load-bearing hinges, and door panel reinforcing ribs ensure high strength of the box system.

● Optional 3.0mm galvanized mounting plate and high-strength mounting bracket ensure the reliability of the installed components (can be used for wiring outside the box)

● The bottom entry-exit line device ensures flexible and convenient entry and exit lines

● Optional stainless steel transport lifting ring systems ensure convenient and quick transportation

● Surface brushed finish (High-end cabinets can be sandblasted internally)

Material: (Other material models available)

Surface Treatment: Brushed finish, zinc-plated for mounting plate

Protection Level: IP56 (as per GB4205-1993)

Standard Configuration: Door Panel, Cabinet, Seal Strip, Grounding Kit, Installation Plate, Door Lock

Steel Plate Thickness:

Case: 1.5mm (optional 2.0mm)

Door Panel: 2.0mm

Mounting Plate: 2.5mm (optional 3.0mm)
