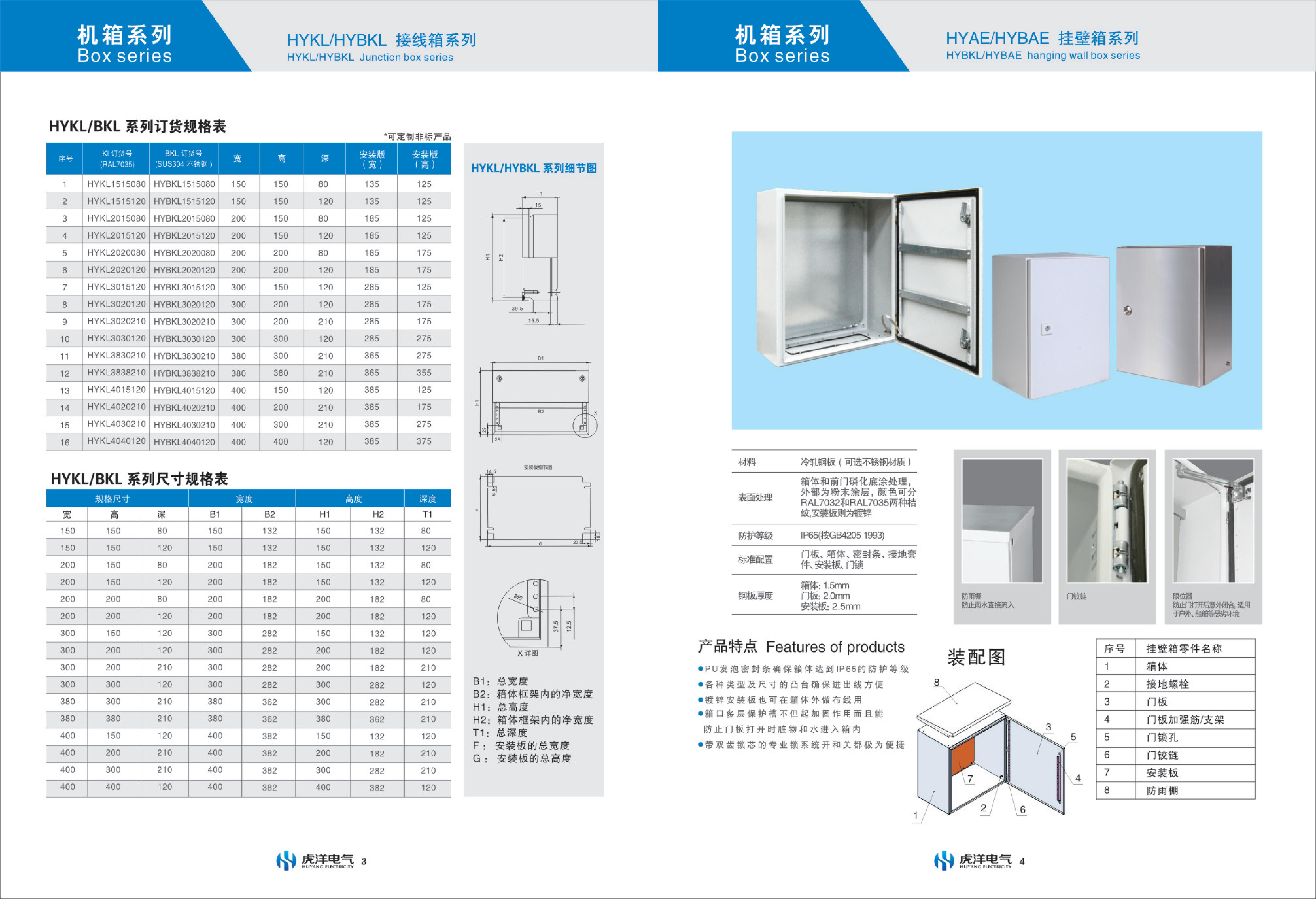

Control Box Craftsmanship and Performance Features:

● Polyurethane foam sealed strips ensure the cabinet reaches IP56 protection level

● Wider cabinet frame, load-bearing hinges, and door panel rib reinforcement ensure high strength of the cabinet system

● Optional 3.0mm galvanized mounting plate and high-strength mounting bracket ensure reliable installation of components (can be used for wiring outside the box)

● The bottom in/out line device ensures the flexibility and convenience of the in/out lines

Optional stainless steel transport lifting ring systems ensure easy and quick transportation.

●Surface brushed finish (high-end cabinets can be sandblasted internally)

Material: (Other material models are available)

Surface Treatment: Brushed finish, zinc plated for mounting panels.

Protection Grade: IP56 (as per GB4205-1993)

Standard Configuration: Door panel, cabinet, sealing strip, grounding kit, mounting plate, door lock

Steel Plate Thickness:

Case: 1.5mm (optional 2.0mm)

Door panel: 2.0mm

Installation Plate: 2.5mm (optional 3.0mm)
