Description

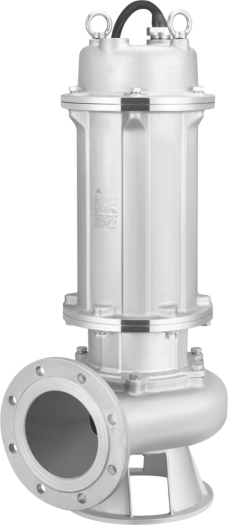

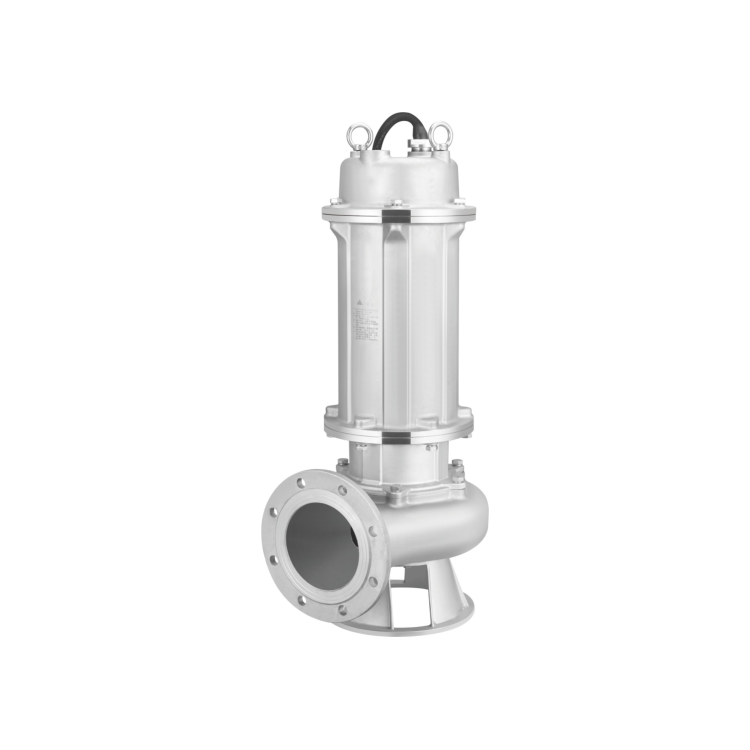

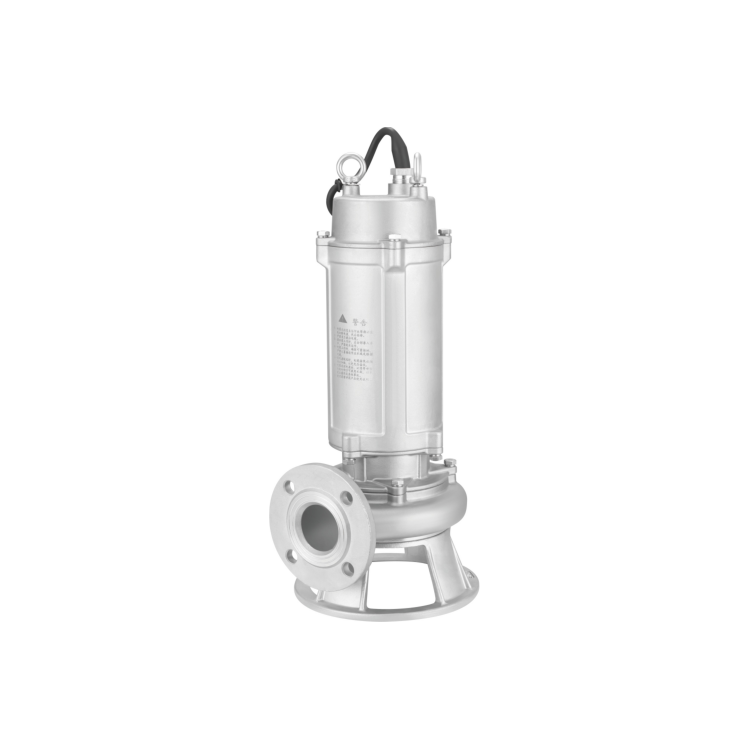

WQ(D)-S Series Full Stainless Steel Submersible Sewage Waste Pump <International Flange Series> (High-Density Medium Temperature Wax Casting)
Serial Number	Model	Rated Flow Rate	Rated Head	Power	Voltage	RPM	Bore
Serial Number	Model	（m³/h）	( m )	(kW)	（ V ）	（r/min）	(mm)
1	50WQD10-10-0.75S	10	10	0.75	220	2860	50
2	65WQD15-6-0.75S	15	6	0.75	220	2860	65
3	50WQD15-10-1.1S	15	10	1.1	220	2860	50
4	65WQD20-6-1.1S	20	6	1.1	220	2860	65
5	50WQD15-15-1.5S	15	15	1.5	220	2860	50
6	65WQD25-7-1.5S	25	7	1.5	220	2860	65
7	50WQD15-20-2.2S	15	20	2.2	220	2860	50
8	65WQD25-15-2.2S	25	15	2.2	220	2860	65
9	80WQD40-9-2.2S	40	9	2.2	220	2860	80
10	100WQD50-7-2.2S	50	7	2.2	220	2860	100
11	50WQ10-10-0.75S	10	10	0.75	380	2900	50
12	65WQ15-6-0.75S	15	6	0.75	380	2900	65
13	50WQ15-10-1.1S	15	10	1.1	380	2900	50
14	65WQ20-6-1.1S	20	6	1.1	380	2900	65
15	50WQ15-15-1.5S	15	15	1.5	380	2900	50
16	65WQ25-7-1.5S	25	7	1.5	380	2900	65
17	50WQ15-20-2.2S	15	20	2.2	380	2900	50
18	65WQ25-15-2.2S	25	15	2.2	380	2900	65
19	80WQ40-9-2.2S	40	9	2.2	380	2900	80
20	100WQ50-7-2.2S	50	7	2.2	380	2900	100
21	50WQ15-25-3S	15	25	3	380	2900	50
22	65WQ25-20-3S	25	20	3	380	2900	65
23	80WQ40-15-3S	40	15	3	380	2900	80
24	100WQ50-10-3S	50	10	3	380	2900	100
25	50WQ15-32-4S	15	32	4	380	2900	50
26	65WQ25-25-4S	25	25	4	380	2900	65
27	80WQ40-18-4S	40	18	4	380	2900	80
28	100WQ50-15-4S	50	15	4	380	2900	100
29	50WQ20-32-5.5S	20	32	5.5	380	2900	50
30	65WQ30-25-5.5S	30	25	5.5	380	2900	65
31	80WQ50-18-5.5S	50	18	5.5	380	2900	80
32	100WQ80-10-5.5S	80	10	5.5	380	2900	100
33	150WQ100-7-5.5S	100	7	5.5	380	2900	150
34	50WQ20-40-7.5S	20	40	7.5	380	2900	50
35	65WQ30-32-7.5S	30	32	7.5	380	2900	65
36	80WQ45-22-7.5S	45	22	7.5	380	2900	80
37	100WQ80-15-7.5S	80	15	7.5	380	2900	100
38	150WQ100-10-7.5	100	15	7.5	380	2900	150
39	65WQ30-50-11S	30	50	11	380	2900	65
40	80WQ45-42-11S	45	42	11	380	2900	80
41	100WQ100-20-11S	100	20	11	380	2900	100
42	150WQ180-11-11S	180	11	11	380	2900	150
43	200WQ250-7-11S	250	7	11	380	2900	200
44	65WQ30-60-15S	30	60	15	380	2900	65
45	80WQ45-52-15S	45	52	15	380	2900	80
46	100WQ100-25-15S	100	25	15	380	2900	100
47	150WQ180-15-15S	180	15	15	380	2900	150
48	200WQ250-11-15S	250	11	15	380	2900	200
49	80WQ45-62-18.5S	45	62	18.5	380	2900	80
50	100WQ100-35-18.5S	100	35	18.5	380	2900	100
51	150WQ180-20-18.5	180	20	18.5	380	2900	150
52	200WQ250-15-18.5	250	15	18.5	380	2900	200
53	80WQ45-72-22S	45	72	22	380	2900	80
54	100WQ100-40-22S	100	40	22	380	2900	100
55	150WQ180-25-22S	180	25	22	380	2900	150
56	200WQ250-20-22S	250	20	22	380	2900	200

Note: 1. This series comes standard with 8-meter acid and corrosion-resistant cables. 2. The double mechanical seal design provides enhanced protection against leakage in pump mechanical seals, with "O" rings made of fluororubber, which are resistant to acids, alkalis, and high temperatures.

Unit Price	Negotiable
Inquiry	None
Delivery	ZhejiangTaizhou
Stock	99999UnitMOQ1Unit
Brand	Create Beauty
Shipment Origin	Zhejiang
Color	See image
Parameters	See attached.
Expiry	Long Valid
Update	2025-06-17 14:56
