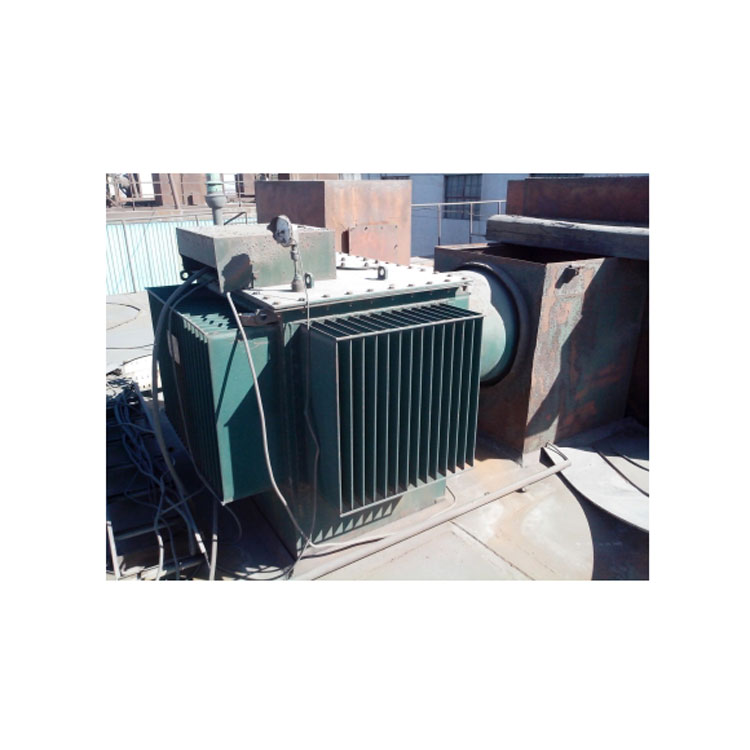

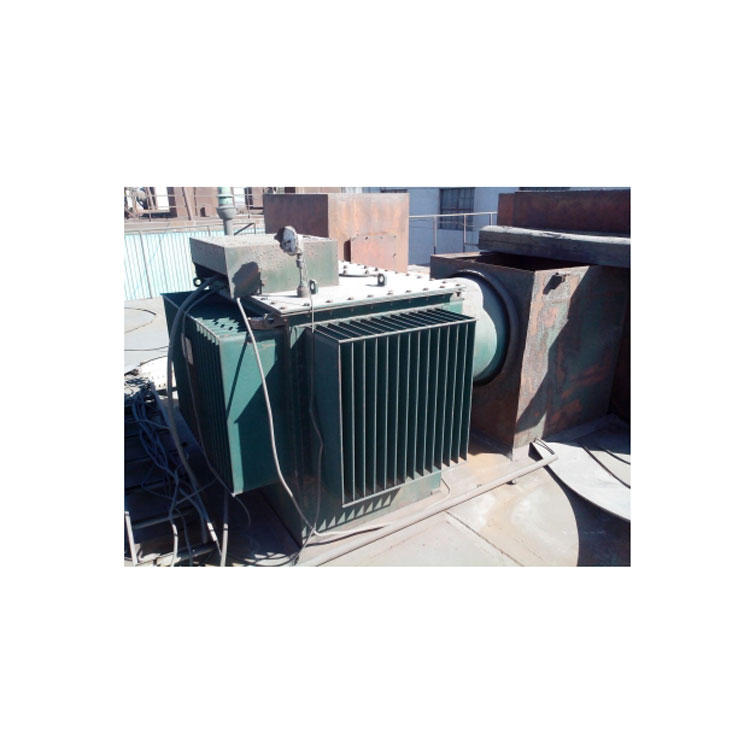

GGaj04 Series High-Voltage Silicon Rectifier Transformer

Product Advantages

Utilizing dual火花 detection and control technology with both hardware and software.

       Automatically and rapidly generate a series of dynamic voltage-current curves for electric fields.

       Capture and store voltage and current waveforms.

       Features power reduction impact control function;

       Features anti-corona control function;

       Robust network system control, forming a powerful subsystem.

       The human-machine interface is user-friendly.

Multiple control methods

       Spark Trace Control

       Average voltage control

       Spark Rate Setting Control

       Critical Spark Control

       Dual Half-Wave Intermittent Power Supply Control

       Single half-wave intermittent power supply control.

Special protective features

       Overcurrent protection

       Overload short-circuit protection

       Open Circuit Protection

       Hazardous Oil Temperature Protection

       SCR Short Circuit Protection

       Overexcitation protection

       Under-voltage protection

       Features special overvoltage voltage limiting and overcurrent limiting measures.

Product Features

       The operating temperature for transformers should not exceed +40°C and should not be lower than the freezing point specified for transformer oil.

       2. Relative humidity of air shall not exceed 90% (when air temperature is 20±5℃).

       3. There should be no conductive dust or gases containing corrosive metals or insulating materials present around the equipment.

       4. Explosive hazard-free in accordance with the following specifications: sine wave pattern, frequency of 50Hz, fluctuation range not exceeding ±2%, voltage of 380V, amplitude variation not exceeding ±55, and instantaneous fluctuation range not exceeding ±10%.

       5. The dust collector's grounding resistance value is less than 2Ω.
