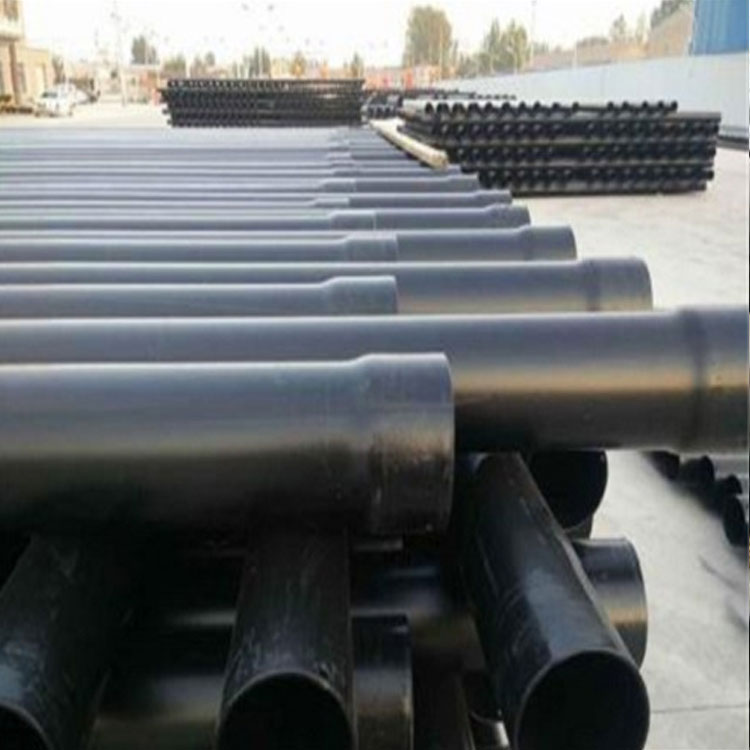

Fusion-bonded epoxy coated steel pipes, also known as fusion-bonded plastic pipes, steel-plastic composite pipes, and coated steel pipes, are steel pipes with a plastic anti-corrosion layer fused onto the inner surface (or both inner and outer surfaces) via spraying, rolling, dipping, or absorption processes. These pipes offer excellent corrosion resistance and low frictional resistance. Epoxy resin coated steel pipes are suitable for conveying media such as water supply and drainage, seawater, warm water, oil, and gases. Polyvinyl chloride (PVC) coated steel pipes are suitable for conveying media like drainage, seawater, oil, and gases.
Technical Specifications
Standard Colors: Black, Grey, Blue, Red, White, Green; Coating Thickness: PE (modified polyethylene) coating thickness: 400um-1000um, EP (epoxy resin) spray thickness: 100um-400um; Coating Method: PE (polyethylene) - hot dipped galvanizing, EP (epoxy resin) - internal and external spraying; Product Specifications: DN15-DN1660; Environmental Temperature: -30℃ to 120℃; Connection Methods: Threaded (DN15-DN100), Groove (DN65-DN400), Flange (suitable for any diameter), Welding, Bimetallic Connection, Socket, Pipe Sections, Seal Connections, etc.
Product Features
Fusion bonded epoxy (FBE) coated steel pipes are products that utilize PE (modified polyethylene) for hot-dip coating or EP (epoxy resin) for internal and external coating, boasting excellent corrosion resistance. The coating itself also offers good electrical insulation, preventing electrolytic erosion. They have low water absorption, high mechanical strength, and a small friction coefficient, ensuring long-term use. Additionally, they effectively prevent damage from plant root systems and soil environmental stress. Easy to connect and maintain.
Product Advantages
1. Suitable for burial and humid environments, with high-temperature resistance up to [specific temperature]. 2. Strong anti-interference capability; when used as cable conduit, it effectively shields against external signal interference. 3. Excellent pressure-bearing strength, up to 6 MPa. 4. Good insulation properties, ensuring no leakage when used as a wire protection tube. 5. Free of burrs and with smooth walls, ideal for installing wires or cables during construction.
