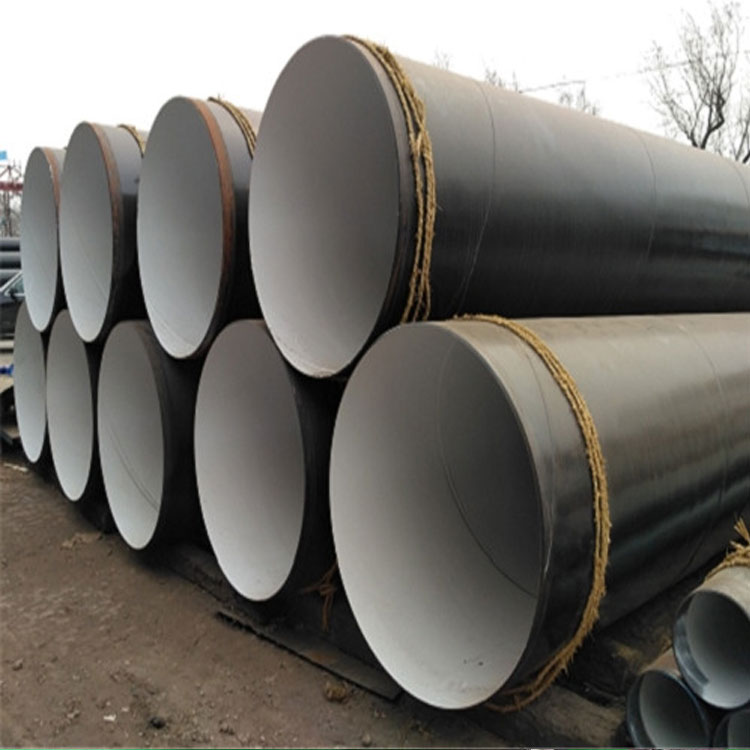

Fusion bonded epoxy coated steel pipe, also known as plastic coated pipe, steel-plastic composite pipe, and fusion bonded plastic coated steel pipe, is a steel pipe-based product that熔接 a layer of plastic corrosion-resistant coating inside the surface of the steel pipe (base pipe) or on both the inner and outer surfaces through spray, roller, immersion, or absorption processes. These pipes offer excellent corrosion resistance and relatively low friction resistance. Fusion bonded epoxy coated steel pipes are suitable for conveying media such as water supply and drainage, seawater, warm water, oil, and gases. Polyvinyl chloride (PVC) coated steel pipes are suitable for conveying media like drainage, seawater, oil, and gases.
Technical Specifications
Standard Colors: Black, Grey, Blue, Red, White, Green; Coating Thickness: PE (modified polyethylene) coating thickness: 400um-1000um, EP (epoxy resin) spraying thickness: 100um-400um; Coating Method: PE (polyethylene) - hot dipped galvanizing, EP (epoxy resin) - internal and external spraying; Product Specifications: DN15-DN1660; Environmental Temperature: -30℃ to 120℃; Connection Methods: Threaded (DN15-DN100), Groove (DN65-DN400), Flange (suitable for any diameter), Welding, Bimetallic Connection, Socket, Pipe Section, Seal Connection, etc.
Product Features
Fusion-bonded epoxy (FBE) coated steel pipes are products that utilize PE (modified polyethylene) for hot-dip coating or EP (epoxy resin) for internal and external coating, boasting excellent corrosion resistance. The coating itself also offers good electrical insulation and prevents electrolytic corrosion. They have low water absorption, high mechanical strength, and a small friction coefficient, ensuring long-term use. They also effectively prevent damage from plant root systems and soil environmental stresses. Easy to connect and simple to maintain.
Product Advantages
1. Suitable for burial and humid environments, with high-temperature resistance up to [specific temperature]. 2. Strong anti-interference capability; when used as cable conduit, plastic-coated steel pipes can effectively shield against external signal interference. 3. Excellent pressure-bearing strength, with a maximum pressure of up to 6 MPa. 4. Good insulation properties ensure no leakage occurs when used as a wire protection tube. 5. Free of burrs and with smooth walls, ideal for installing wires or cables during construction.
