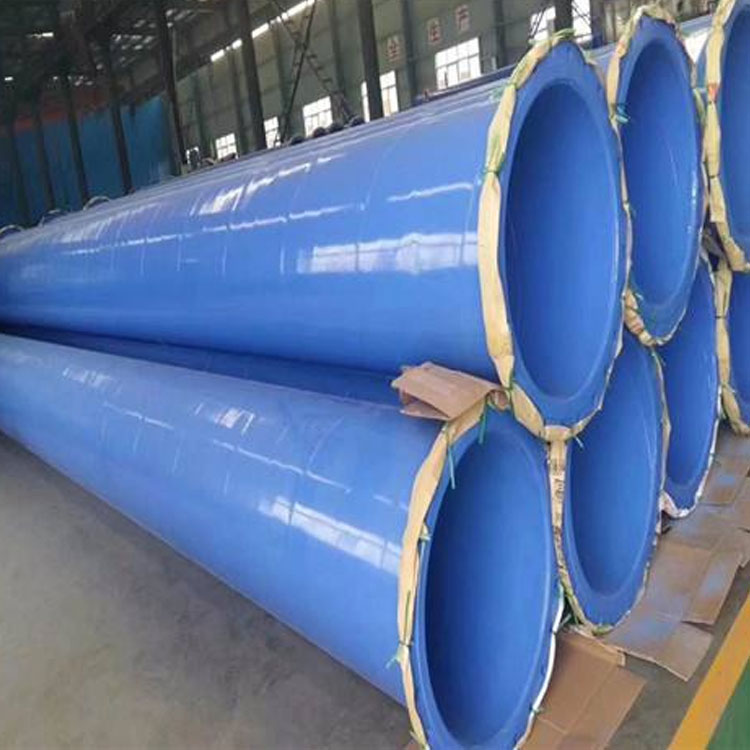

Fusion bonded epoxy coated steel pipe, also known as fusion bonded pipe, steel-plastic composite pipe, and coated steel-plastic composite pipe, is a steel pipe with a plastic corrosion-resistant layer fused onto its inner surface (base pipe) or both inner and outer surfaces using spray, roll, dip, or absorption techniques. These pipes offer excellent corrosion resistance and low frictional resistance. Epoxy resin coated steel pipes are suitable for conveying media such as water supply, seawater, warm water, oil, and gas. Polyvinyl chloride (PVC) coated steel pipes are suitable for conveying media like drainage, seawater, oil, and gas.
Technical Specifications
Standard Colors: Black, Grey, Blue, Red, White, Green; Coating Thickness: PE (modified polyethylene) coating thickness is 400um-1000um, EP (epoxy resin) spray thickness is 100um-400um; Coating Method: PE (polyethylene) is hot dipped galvanized, EP (epoxy resin) is internally and externally sprayed; Product Specifications: DN15-DN1660; Environmental Temperature: -30℃ to 120℃; Connection Methods: Threaded (DN15-DN100), Groove (DN65-DN400), Flange (suitable for any diameter), Welding, Bimetallic Connection, Socket, Pipe Sections, Seal Connections, etc.
Product Features
Fusion bonded epoxy (FBE) coated steel pipes are products treated with PE (modified polyethylene) for hot dip galvanizing or EP (epoxy resin) for internal and external coating, featuring excellent corrosion resistance. The coating itself also boasts good electrical insulation properties, preventing electrolytic erosion. They have low water absorption rates, high mechanical strength, and a low coefficient of friction, ensuring long-term use. They can also effectively prevent damage from plant root systems and soil environmental stresses. Easy to connect and maintain.
Product Advantages
1. Suitable for burial and damp environments, with high-temperature resistance. 2. Strong anti-interference capability; when used as cable conduit, it can effectively shield external signal interference. 3. Excellent pressure-bearing strength, with a maximum pressure of up to 6MPa. 4. Good insulation properties, ensuring no leakage when used as a wire protection tube. 5. Free from burrs and with smooth tube walls, ideal for installing wires or cables during construction.
