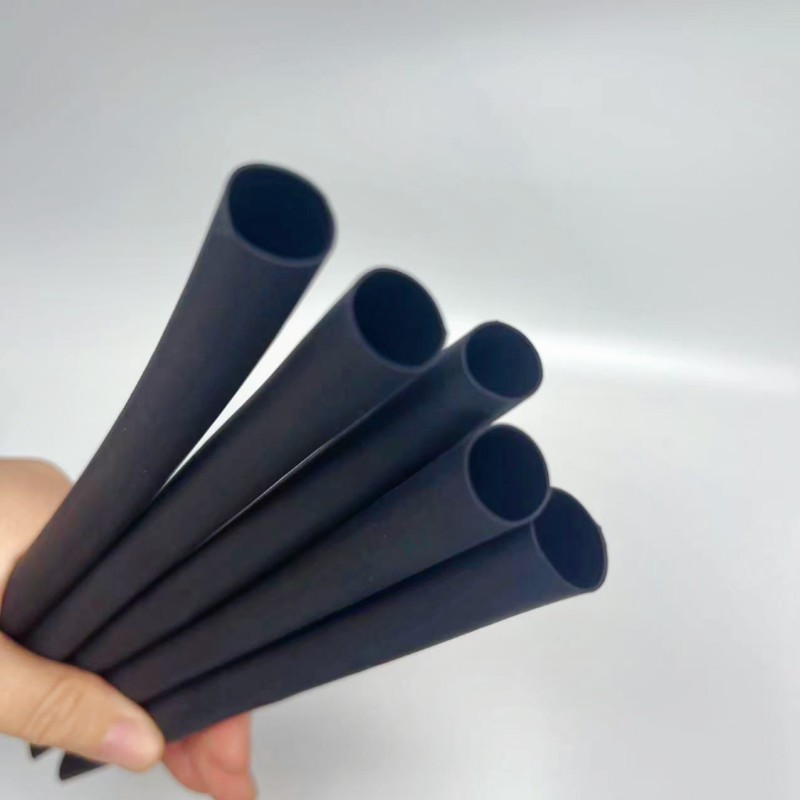

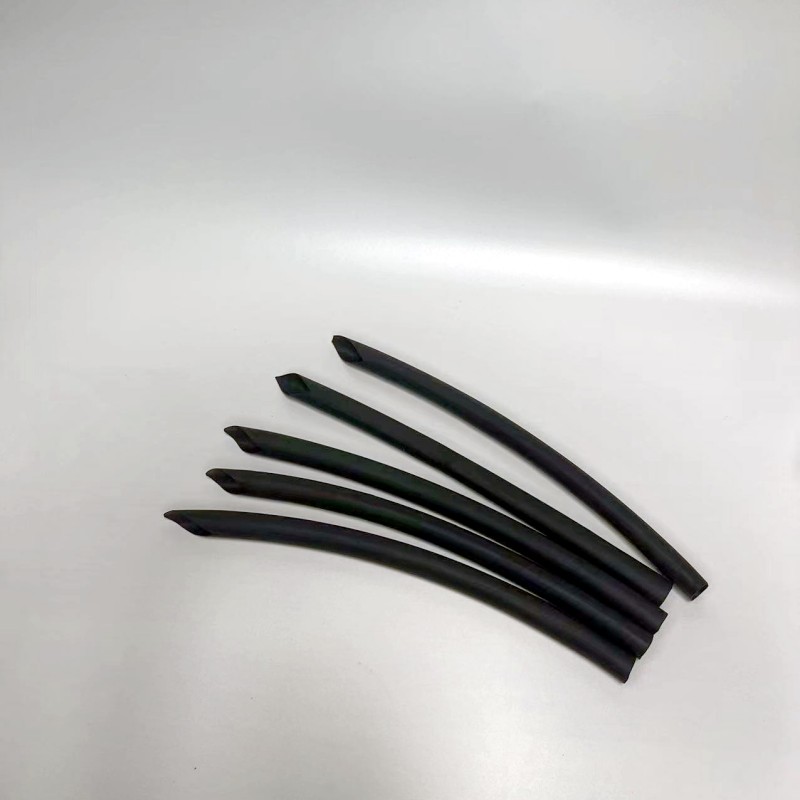

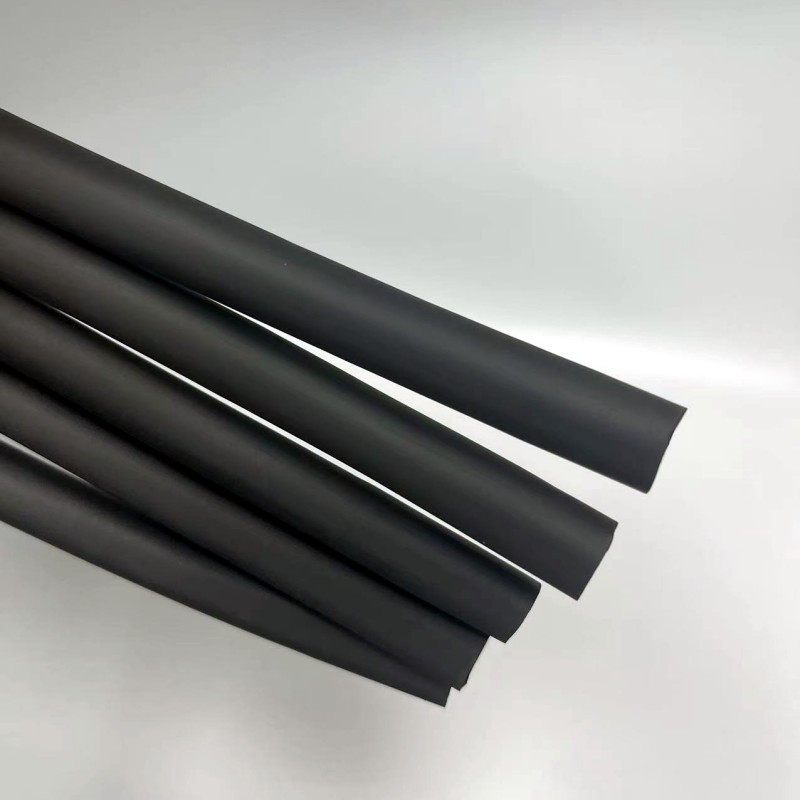

Fluororubber Heat Shrink Tubing
Excellent high and low-temperature resistance, oil and chemical reagent resistance, especially suitable for applications requiring
For applications requiring heat resistance (such as electrical and hydraulic systems near aircraft or car engines or fuel tanks) and environments needing resistance to chemical solvents, suitable for insulating and stress relief of cable harnesses in these conditions, protecting electronic and electrical equipment from damage.
Features/Advantages Shrinkage ratio 2:1
·High-temperature resistant, solvent resistant, chemically corrosion-resistant, radiation-resistantGoodGood oil resistance High flame retardancy
·Chlorine-free compoundsPCBs、PCPsPolybrominated BiphenylsPBBsPolybrominated Oxidized BiphenylsPBBOsPolybrominated diphenyl ethersPBBEs、PBDEsHazardous materials, compliant with European standardsRoHSEnvironmental Regulations &SONY SS00259Standard environmental protection requirements.
Temperature Range Continuous Operating Temperature:-65℃~200℃ Low shrinkage temperature:150℃ Low complete shrinkage temperature:175℃
Features/Standard AMS-DTL-23053/13 Performance Parameters
Features | Project | Specification requirements | Testing Method | Typical Value |
Physical Properties: | Tensile strength | 8.2MPa min. | ASTM D 638 | ≥10.3MPa |
Tensile elongation at break | 250% min. | ASTM D 638 | ≥300% | |
Thermal shock(300℃, 4hour) | No cracks | ASTM D 2671 | Through | |
Low温柔软(-65℃, 4Hour) | Crack-free | ASTM D 2671 | Through | |
Heat aging 250℃, 168Hour | ||||
Tensile strength after aging | 8.2MPa min. | ASTM D 638 | ≥8.2MPa | |
Tensile elongation after aging | 200% min. | ASTM D 638 | ≥200% | |
Electrical Characteristics: | Insulation voltage resistance and breakdown | 2500V, 60sec, Not to penetrate | ASTM D 2671 | Through |
Insulation Strength | 7.9KV/mm min. | ASTM D 2671 | ≥7.9KV/mm | |
Volume resistivity | 109Ω·cm min. | ASTM D 876 | 109Ω·.cm | |
Chemical Properties: | Corrosive(175℃, 16Hour) | Non-corrosive | ASTM D 2671 | Through |
Flame retardant | 15sSelf-extinguishing | ASTM D 2671 | Through | |
Oil-resistant properties: | 23℃，24Hourly (for gasoline, fuel oil, hydraulic oil, lubricating oil, etc.) | |||
Tensile strength | 8.2MPa min. | ASTM D 2671 | ≥8.2MPa | |
Tensile elongation at break | 200% min. | ASTM D 2671 | ≥200% | |
n Specs and dimensions
mm/inch
Specs | Inside Diameter | Wall Thick | Standard Packaging (m/Roll) | |
Before Shrinkingmin.） | After shrinkagemax.） | Shrinkage after use | ||
1/8 | 3.2（0.125） | 1.6（0.062） | 0.76±0.13（0.030±0.005） | 50 |
3/16 | 4.8（0.187） | 2.4（0.093） | 0.89±0.18（0.035±0.007） | 50 |
1/4 | 6.4（0.250） | 3.2（0.125） | 0.89±0.18（0.035±0.007） | 50 |
3/8 | 9.5（0.375） | 4.8（0.187） | 0.89±0.18（0.035±0.007） | 50 |
1/2 | 12.7（0.500） | 6.4（0.250） | 0.89±0.18（0.035±0.007） | 30 |
3/4 | 19.1（0.750） | 9.5（0.375） | 1.07±0.21（0.042±0.008） | 30 |
1 | 25.4（1.000） | 12.7（0.500） | 1.25±0.30（0.049±0.011） | 30 |
1 1/2 | 38.1（1.500） | 19.0（0.750） | 1.40±0.38（0.055±0.015） | 30 |
2 | 50.8（2.000） | 25.4（1.000） | 1.65±0.43（0.055±0.017） | 30 |
n Order Information
·Standard Color: Black-BK）
·Non-standard Sizes: Non-standard specification products available upon request
·Order Instructions: Specify product model, specifications, and color
