KYNAR-150 SoftLinear Low-Density Polyethylene (LLDPE)PVDF)Heat Shrink Tubing
ProductProduct Introduction
KYNAR- 150Model heat shrinkable tube, made of modified poly(vinylidene fluoride)PVDF)Manufactured,Please provide the Chinese content that needs to be translated into American English. CombineSAE-AMS-DTL-23053/18Mil-Spec requirements, the special Western standard makes it simultaneously translucentMing AndBlockCombustible properties, can be150℃Long-term use under high temperatures, with excellent wear resistance, cut resistance, and high durability. Partial oils and chemicals. Widely used in applications exposed to high temperatures, industrial fuels, solvents, and chemical testing.Agent InfringementNo Chinese content provided.Protection of welding points, terminals, and connecting lines, also usable as identification tubes.
Performance Features
SoftSoftHigh transparency, flame retardant, long-term use at 150°C, wear-resistant, anti- CutCut, Resistant to most oils and chemicals
ClosedKey indicators
Contraction Ratio:2：1
Shrink Temperature:100°C~150C
Operating Temperature:-55C~150C
DurablePressure Grade:600V
Safety Certification: 125CVW-1 600V
Flame Retardancy Rating:UL224 VW- 1 EN45545-2 TB3138 DIN5510-2 HarvestCompliant with standardsGJB 7270-2011 GJB 7284-2011
QCR 642-2018 TB3139-2021

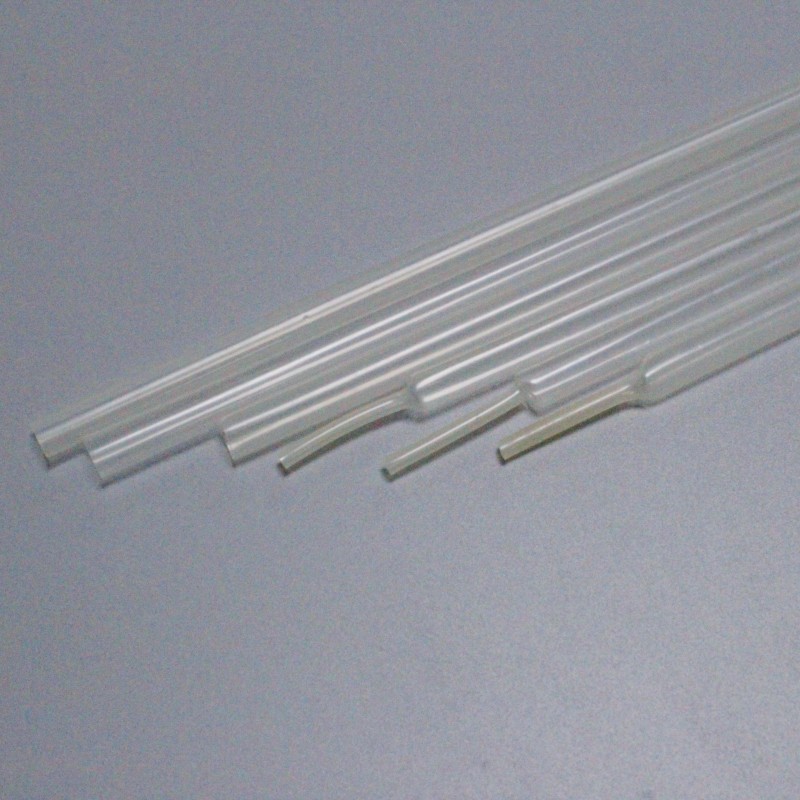

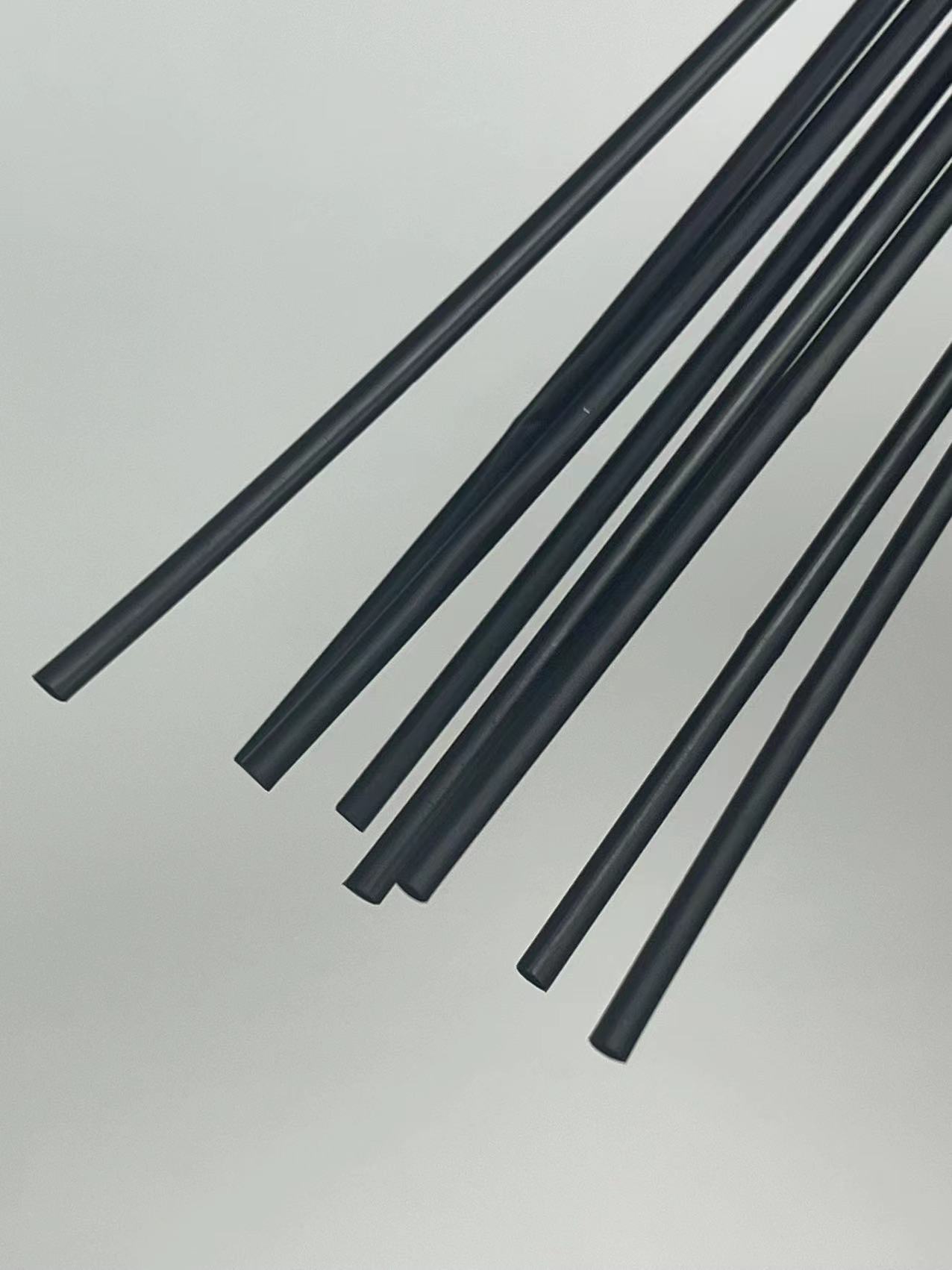

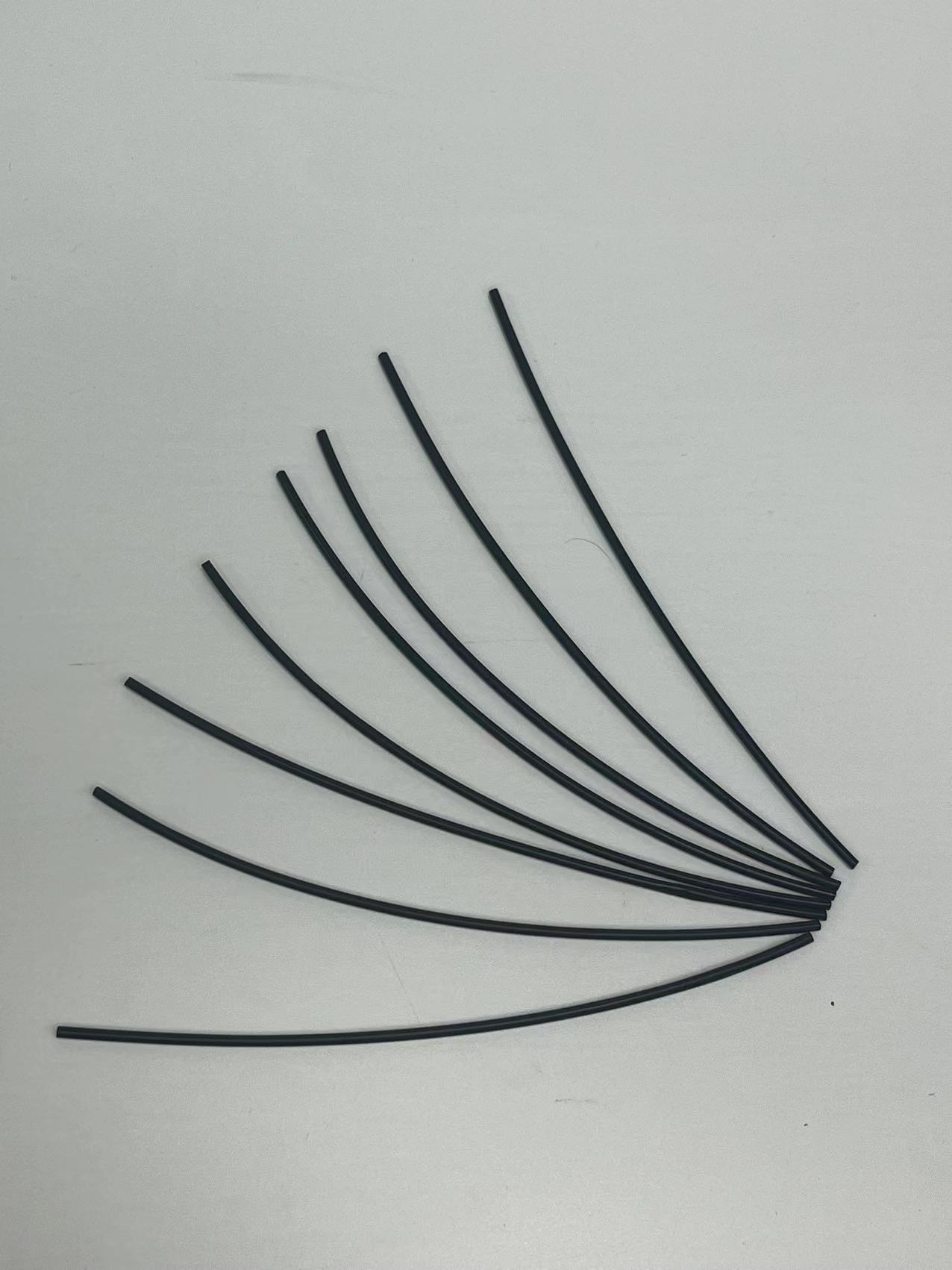

Standard ColorColor: Transparent/Black
Non-standard Colors: Customized as requested
Tech
ProductsProductSpecification (English/Imperial/Metric)
Nominal Specifications | SupplyShould size (mm) | Retracted Sizemm) | PipingType | Standard Length (Rice/Pan) | ||
inch | mm | Inside Diameter(Small value) | Inner Diameter(Large Value) | WallThick(Nominal (Nom.) | ||
3/64 | 1.2 | 1.2 | 0.6 | 0.26 | O | 200 |
1/16 | 1.6 | 1.6 | 0.8 | 0.26 | O | 200 |
3/32 | 2.4 | 2.4 | 1.2 | 0.26 | O | 200 |
1/8 | 3.2 | 3.2 | 1.6 | 0.26 | O | 100 |
3/16 | 4.8 | 4.8 | 2.4 | 0.26 | O | 100 |
1/4 | 6.4 | 6.4 | 3.2 | 0.26 | O | 100 |
3/8 | 9.5 | 9.5 | 4.8 | 0.30 | － | 50 |
1/2 | 12.7 | 12.7 | 6.4 | 0.30 | － | 50 |
3/4 | 19.1 | 19.1 | 9.5 | 0.41 | － | 50 |
1 | 25.4 | 25.4 | 12.7 | 0.41 | － | 50 |
1 1/2 | 38.1 | 38.1 | 19 | 0.51 | － | 30 |
AvailableLot No.O”The product is circular in shape.
