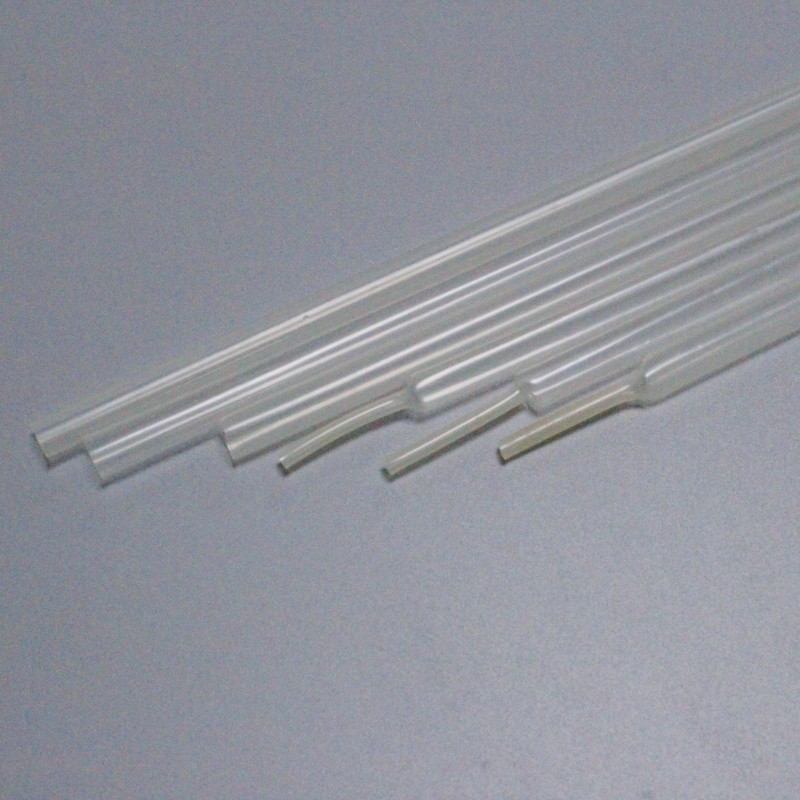

KYNAR-175 Semi-hardLinear Low-Density Polyethylene (LLDPE)PVDF)Shrink Tube
Product Description
Modified poly(vinylidene fluoride) (PVDF)Manufactured, compliantSAE-AMS-DTL-23053/18Mil-Spec requirements; the unique formula grants it both transparency and flame-retardant properties.175℃Long-term use under high temperatures, with wear and cut resistance, and tolerance to most oils and chemicals. Widely used for the protection of welding points, terminals, and connecting lines exposed to high temperatures, industrial fuels, solvents, and chemical reagents.
Performance Features
Semi-hard、Transparent, flame-retardant, for long-term use at 175°C, wear-resistant, cut-resistant. Resistant to most oils and chemicalsProduct
ClosedKeyBenchmark
Contraction Ratio:2 ：1
ReceivedShrinkage temperature:100C~175C
WorkerOperating Temperature:-55C~175C
DurablePressure Grade:600V
Safety Certification: 125CVW-1 600V
Flame Retardant Rating:UL224 VW- 1 EN45545-2 TB3138 DIN5510-2 Adheres to standard: ConformsGJB 7270-2011 GJB 7285-2011 QCR 642-
2018 TB3139-2021

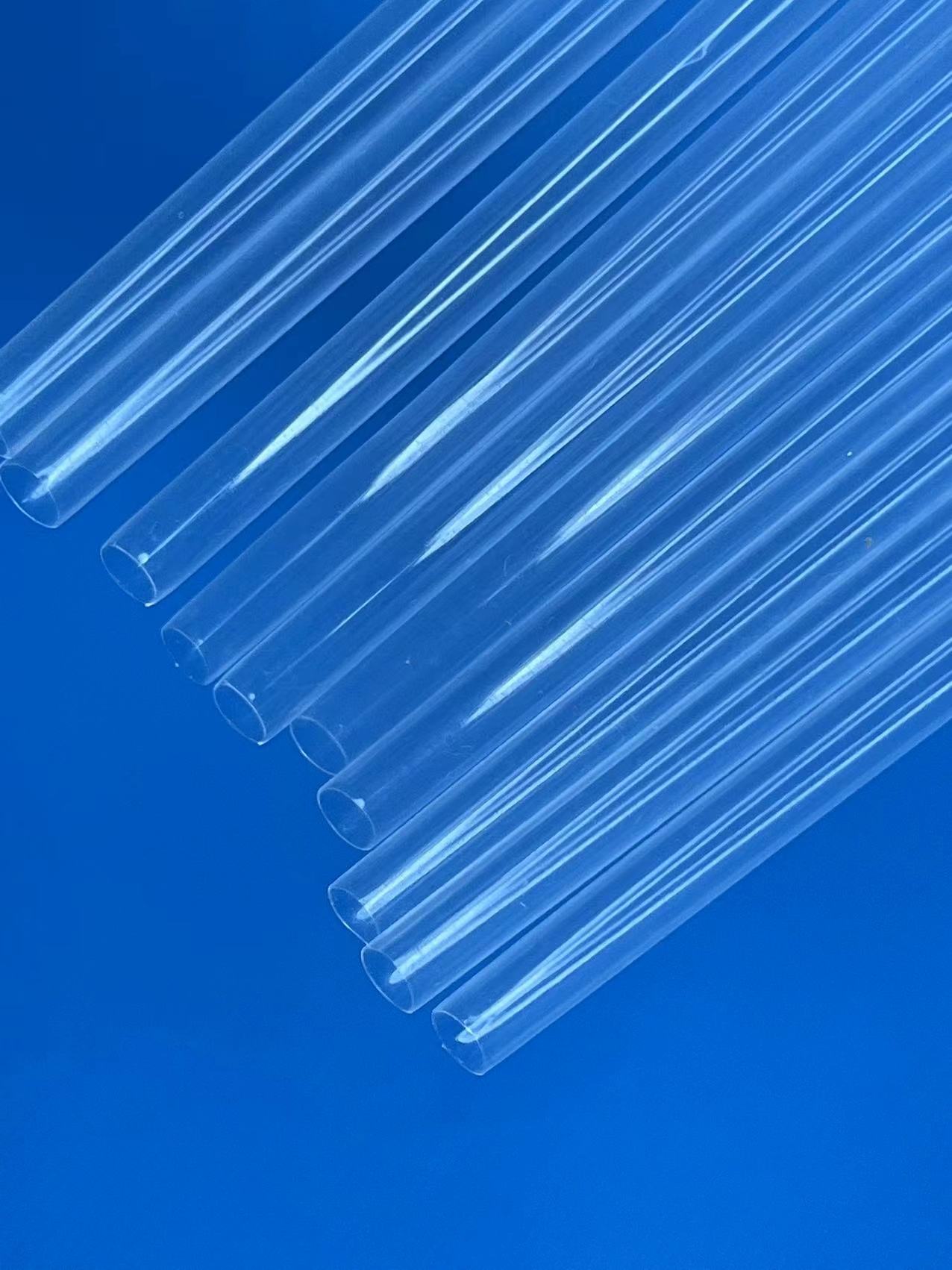

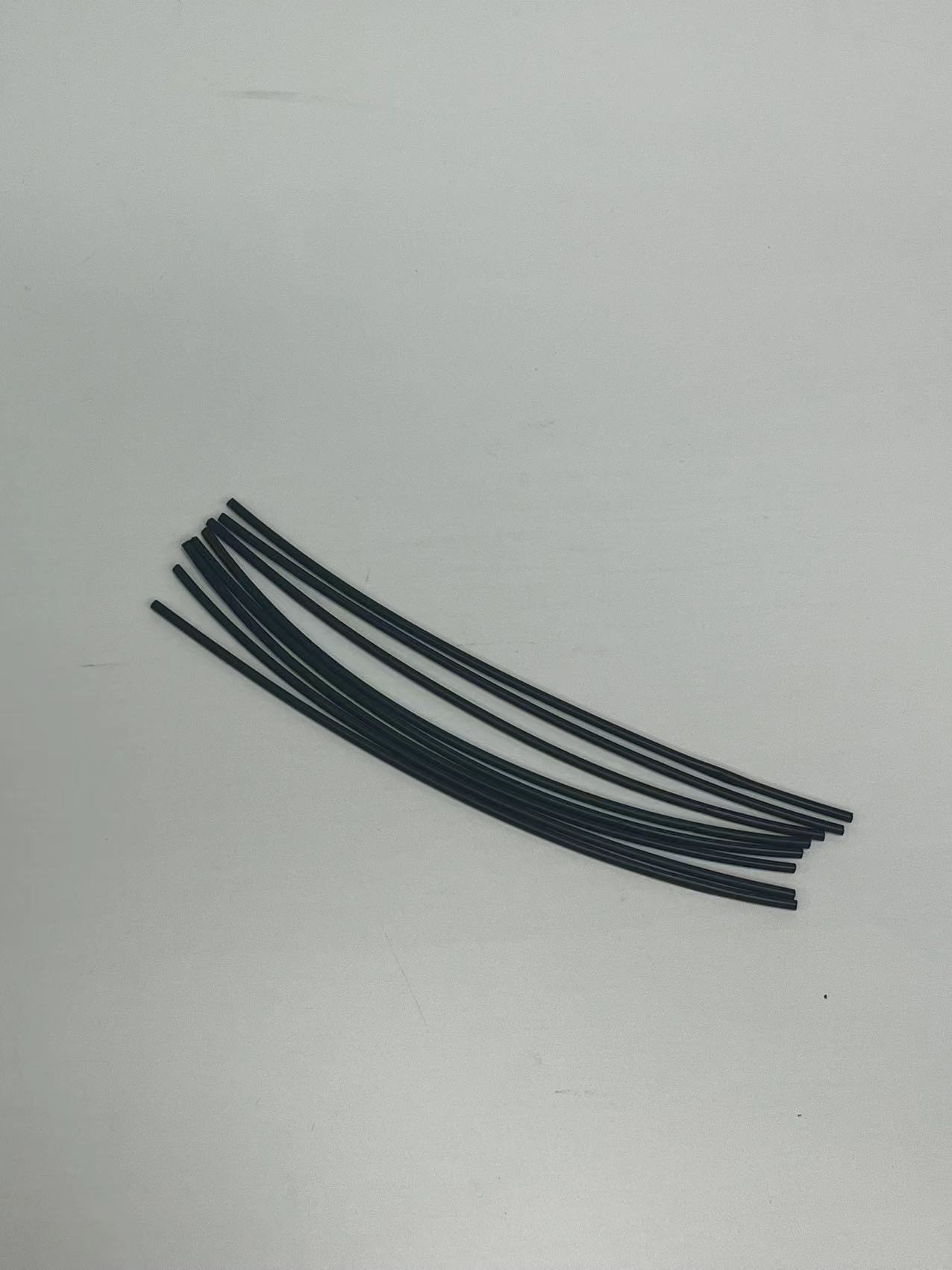

Standard Colors: Transparent/Black
Non-standard Colors: Customized as requested
Technical specificationPlease provide the Chinese content to be translated.
Test Items | Testing Method | Performance specifications |
Working TemperatureDegree | IEC 216 | -55℃ To+175℃ |
StretchedStrength | ASTM D 2671 | ≥34.5MPa |
BreakTensile elongation | ASTM D 2671 | ≥ 150% |
Hot aging tensile elongation at break | 250℃/168hrs. | ≥ 100 |
Thermal shock | 300℃/1hr. | No content provided.Crack |
LowWarm brittleness | -55℃/1hr. | No content provided.Crack |
BlockFlammable | UL VW - 1 | Through |
Volume ElectricityResistance Rate | IEC 93 | ≥ 10 13Ω .cm |
StrikeWear strength | ASTM D 2671 | ≥30kV/mm |
ProductsProductSpecification (Imperial/Metric)
Nominal specificationGrate | SupplyShould size (mm) | ReturnReduced Dimensions (mm) | Standard LengthDegree | ||
inch | mm | Inside Diameter(Small value) | Inner Diameter(High Value) | Wall thickness(Nominal) | |
3/64 | 1.2 | 1.2 | 0.6 | 0.20 | 200Meter/Disc |
1/16 | 1.6 | 1.6 | 0.8 | 0.20 | 200per square meter/disk |
3/32 | 2.4 | 2.4 | 1.2 | 0.23 | 200Meter/Disk |
1/8 | 3.2 | 3.2 | 1.6 | 0.23 | 100per meter/roll |
3/16 | 4.8 | 4.8 | 2.4 | 0.23 | 100Meter/disk |
1/4 | 6.4 | 6.4 | 3.2 | 0.28 | 100Meter/Unit |
3/8 | 9.5 | 9.5 | 4.8 | 0.28 | 1.22Rice |
1/2 | 12.7 | 12.7 | 6.4 | 0.32 | 1.22Rice |
3/4 | 19.1 | 19.1 | 9.5 | 0.36 | 1.22Rice |
1 | 25.4 | 25.4 | 12.7 | 0.41 | 1.22Rice |
