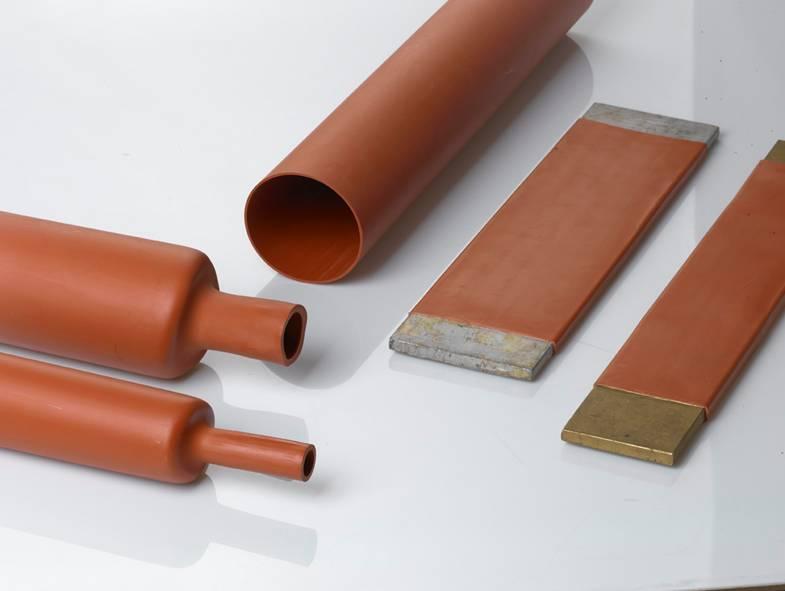

TB135-10KV Insulated heat shrinkable busbarTubing
Product Introduction
Manufactured from radiation-crosslinked polyolefins designed with a special formula, these products are flame-retardant, halogen-free, and do not produce toxic gases or harmful substances when burned. They offer high insulation strength and excellent resistance to electrical tracking. Suitable for24KVInsulation and protective sheathing for the following busbars and other electrical equipment.
Performance Features
Insulation、Flame-retardant, halogen-free, and resistant to electrical carbon tracking
Technical specificationPlease provide the Chinese content you would like translated into American English.
Test Items | Testing Method | Performance specifications |
StretchedStrength | ASTM D 2671 | ≥ 11.8MPa |
BrokenTensile elongation ratio | ASTM D 2671 | ≥700% |
Hot potChemical (120℃/168hrs.) StretchedStrength InterruptedTensile elongation ratio | ASTM D 2671 | ≥ 10Mpa ≥500% |
Please provide the Chinese content you would like to have translated into American English.Towards shrinkage rate | ASTM D 2671 | 0 Please provide the Chinese content to be translated.- 10% |
KnockWear strength | IEC 243 | ≥ 20kV/mm |
Volume ElectricalResistance Rate | IEC 93 | ≥ 10 13Ω .cm |
Flame Retardant (Oxygen Index | ASTM D 2863 | ≥ 25 |
SuctionWaterRate (23°C/14 days) | ISO 62 | <0.5% |
ProductProductSpecification
Nominal specificationPlease provide the Chinese content to be translated. （mm） | SupplyAppropriate size (mm) | Please provide the Chinese content to be translated.Reduced Size (mm) | Tubular | Standard LengthDiameter (meters/diameter) | |
Inside Diameter(Small value) | Internal Diameter(High value) | Wall thickness(Small Value) | |||

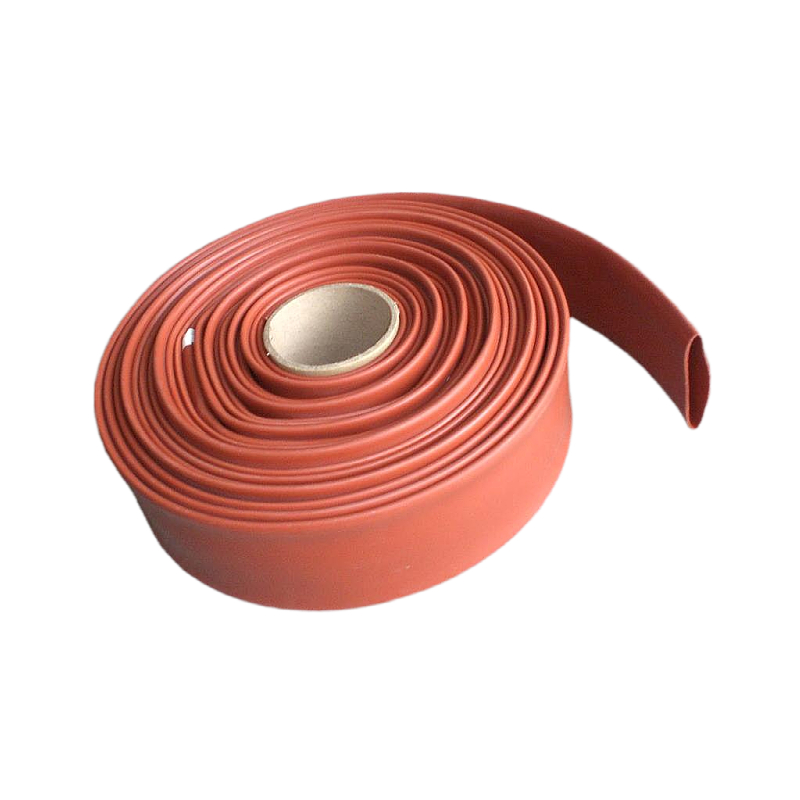

Continuous long products | |||||
25/10 | 25 | 10 | 2.0 | --- | 30 |
30/12 | 30 | 12 | 2.0 | --- | 30 |
35/14 | 35 | 14 | 2.0 | --- | 30 |
40/16 | 40 | 16 | 2.0 | --- | 30 |
50/20 | 50 | 20 | 2.0 | --- | 15 |
65/25 | 65 | 25 | 2.0 | --- | 15 |
75/30 | 75 | 30 | 2.0 | --- | 15 |
100/40 | 100 | 40 | 2.0 | --- | 15 |

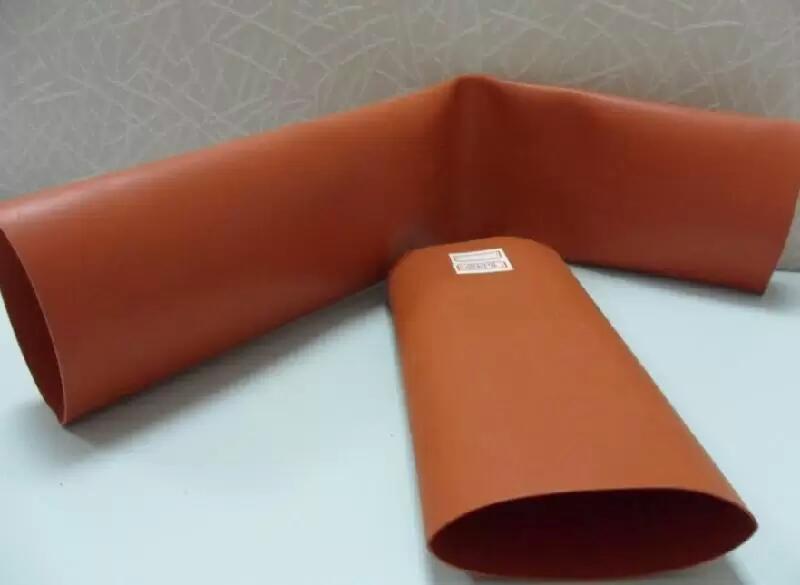

Chopped products | |||||
150/60 | 150 | 60 | 3.0 | --- | 1000mm |
180/70 | 180 | 70 | 3.0 | --- | 1000mm |
205/75 | 205 | 75 | 3.3 | --- | 1000mm |
235/75 | 235 | 75 | 3.3 | --- | 1000mm |
Symbol— ”Product tube shape indicatedFlat-shaped
