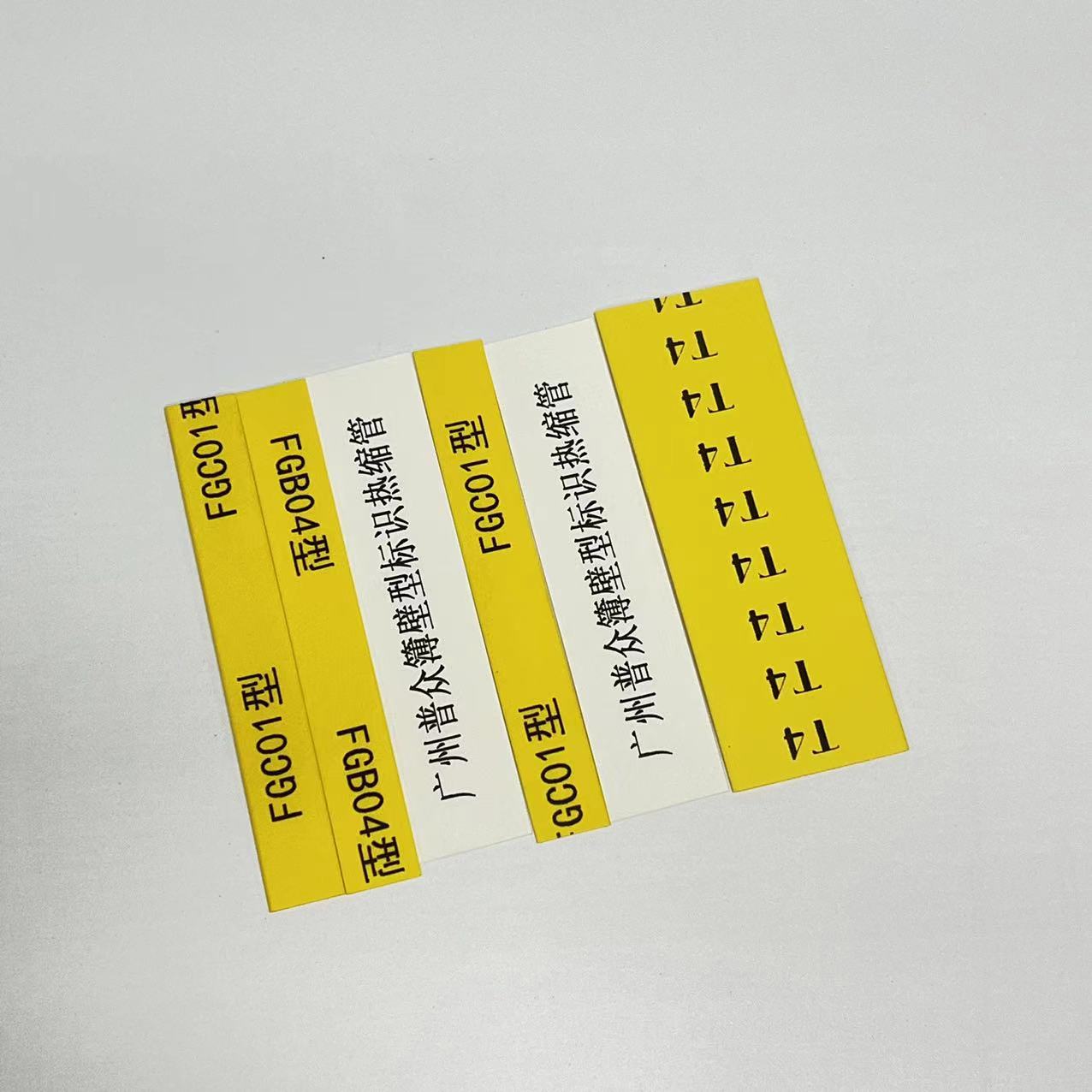

125℃ Heat Shrinkable Label Tubing
Product Features: Product Introduction:
125℃ Heat Shrinkable Label Tubing for Sale | 125℃ Heat Shrinkable Label Tubing Models | 125℃ Heat Shrinkable Label Tubing Production
Application
Heat shrinkable identification sleeves are designed to meet manufacturers' high-performance identification requirements for cables, and are made from durable materials.
Manufactured from high-performance, flame-retardant polyolefin materials, suitable for printing and identification on various types of cables and wires. The marking sleeve can be directly supplied to standard printers for printing. Combined with software, the printer can print various sizes of text and symbols on the marking sleeve, ensuring durable identification upon printing.
n Features/Advantages
The marking tube meets the material performance requirements, including flame retardancy, as specified by MIL-DTL-23053/5.
· Soft, high flame retardant
· Meets the marking characteristics specified in MIL-M-81531
· Immediately Achieves Label Permanence After Printing
· Chlorine-free PCBs, PCPssPolybrominated Biphenyls (PBB)sPolybrominated biphenyls (PBBO)sPolybrominated Biphenyl Ethers (PBBE)s、PBDEsHazardous substances harmful to the environment, compliant with the European ROHS environmental directive.
Temperature Range
· Continuous Operating Temperature: –55℃ to 125℃
·Low shrinkage temperature: 70℃
·Low complete shrinkage temperature: 110℃
Features/Standard
Specification | Internal Diameter | Application Range (mm) | |
Before Shrinking (min.) | Shrinkage (max.) | ||
3/32 | 2.4 | 0.8 | 0.9-2.0 |
1/8 | 3.2 | 1.0 | 1.1-2.7 |
3/16 | 4.8 | 1.6 | 1.8-4.1 |
1/4 | 6.4 | 2.1 | 2.3-5.5 |
3/8 | 9.5 | 3.2 | 3.5-8.0 |
1/2 | 12.7 | 4.2 | 4.7-10.8 |
3/4 | 19.1 | 6.35 | 7.0-16.3 |
1 | 25.4 | 8.5 | 9.3-21.6 |
1 1/2 | 38.1 | 19.1 | 21.0-33.0 |
2 | 50.8 | 25.4 | 27.0-48.0 |
Specs and dimensions mm/inch
Performance Parameters:
Physical Properties: | |
Tensile strength | ≥10.3Mpa |
Tensile elongation at break | ≥200% |
Low temperature softness (-55°C, 4 hrs) | Crack-free |
Thermal shock (250°C, 4 hours) | No cracks, no drips, no leakage |
Printing Performance: | |
UL224 | 50 erasers, identifiable |
MIL-M-81531 | 50 erasers, identifiable |
MIL-STD-202 | 30 double-sided wipes, identifiable |
Electrical Characteristics: | |
Insulation withstand voltage and breakdown, 2500V, 60 seconds | No penetration |
Insulation Strength | ≥19.7KV/mm |
Volume resistivity | ≥1014Ω·cm |
Chemical Properties: | |
Flame Retardant MIL-DTL-23053 | Average burn time less than 1 minute |
Liquid Resistance: 23°C, 24 hours | Printable (MIL-M-81531) |
Hydraulic Oil MIL-H-5606 | |
JP-4 Fuel Oil (MIL-T-5624) | |
Lubricating Oil (MIL-L-7808) | |
Lubricating Oil (MIL-L-23699) | |
Saltwater (5%) | |
Antifreeze (MIL-A-8243) |
n Order Information
Standard Colors: White (-9), Yellow (-4)
Non-standard Colors: Black (-0), Red
