Heat Shrink Cable Terminal
Features:
The inner coated hot melt adhesive ensures reliable sealing.Product Introduction:

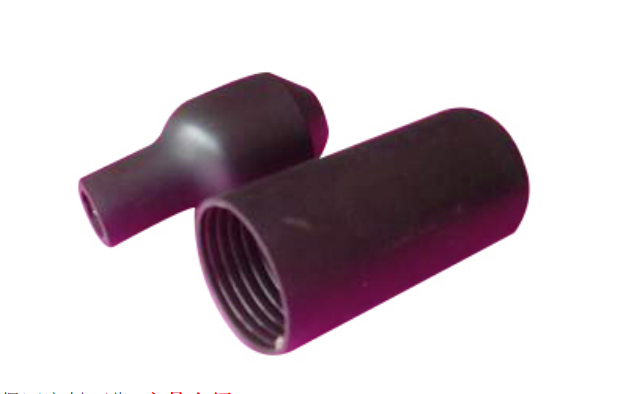

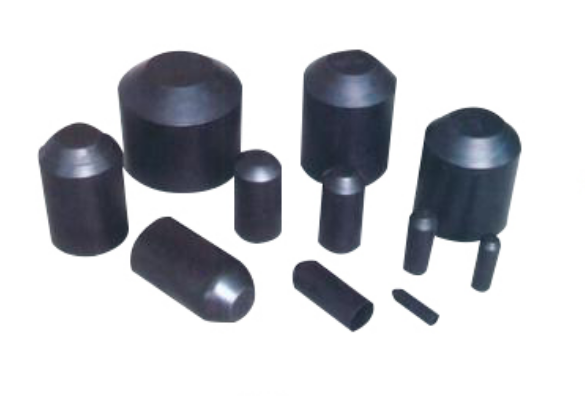

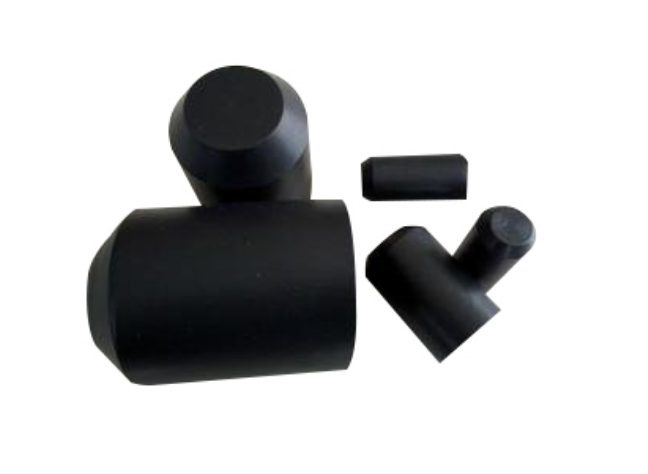

Heat Shrink Cable Seal Caps
Product Description: The inner surface of the product is coated with a spiral layer for sealing and moisture-proofing at the cable end.
Performance Features:
● Used for inflating communication cable ends, non-inflated sealing, and power cable end sealing.
The inner coating of hot-melt adhesive ensures reliable sealing.
● Shrinkable end caps are available in two types: valve and valveless.
Key Indicators: Contraction Temperature: 120℃
Performance Features: Sealed, waterproof and moisture-proof, UV radiation resistance.
Operating Temperature: -55℃ to 110℃; Standard Color: Black;
Technical Specifications:
Measurement Please try. Item Objective | Measurement Please provide the Chinese content you would like translated into American English. Square Please provide the Chinese content that needs to be translated into American English. | Sex Available Point Mark |
Operating Temperature | IEC216 | -55℃～110℃ |
Tensile Strength | ASTM D 2671 | >14MPa |
Tensile elongation at break | ASTM D 2671 | ≥400% |
Tensile elongation at break after aging | 150℃/168 Hour | ＞300% |
Density | ASTM D 792 | 1.05 |
Penetration Strength | IEC 243 | ≥15kV/mm |
Volume resistivity | IEC 93 | ＞1014Ω.cm |
Product Specifications:（mm）
Type Number | Supply Should Inch Inch | Return Please provide the Chinese content you would like translated. Measure N/A | Cable Diameter | |||
Please provide the Chinese content you would like translated into American English. Diameter Small value | Long Degree ±10% | Internal Diameter High Value | Long Degree ±10% | Wall Thick ±5% | ||
Standard Cap Seal | ||||||
105 12/4.0 | 12 | 15 | 4 | 40 | 2.6 | 4-10 |
110 14/5.0 | 14 | 18 | 5 | 45 | 2.2 | 5-12 |
115 20/6.0 | 20 | 25 | 6 | 55 | 2.8 | 8-16 |
120 25/8.5 | 25 | 30 | 8.5 | 68 | 2.8 | 10-20 |
130 35/16 | 35 | 35 | 16 | 83 | 3.3 | 17-30 |
135 40/16 | 40 | 35 | 16 | 90 | 3.3 | 18-32 |
140 55/26 | 55 | 50 | 26 | 103 | 3.5 | 28-48 |
150 75/36 | 75 | 55 | 36 | 120 | 4.0 | 45-68 |
160 100/52 | 100 | 70 | 52 | 140 | 4.0 | 55-90 |
170 120/60 | 120 | 70 | 60 | 150 | 4.0 | 65-110 |
180 145/60 | 145 | 70 | 60 | 150 | 4.0 | 70-130 |
190 160/82 | 160 | 70 | 80 | 150 | 4.2 | 90-150 |
200 200/90 | 200 | 90.0 | 70 | 160 | 4.2 | 100-180 |
Extended Cap | ||||||
110L 14/5 | 14 | 30 | 5 | 55 | 2.2 | 5-12 |
135L 40/15 | 40 | 40 | 15 | 90 | 3.3 | 18-34 |
140L 55/23 | 55 | 70 | 23 | 140 | 3.8 | 25-48 |
145L 62/23 | 62 | 70 | 23 | 140 | 3.8 | 25-55 |
150L 75/36 | 75 | 70 | 36 | 150 | 4.0 | 40-68 |
150XL 75/36 | 75 | 70 | 36 | 150 | 4.0 | 45-68 |
160XL 100/47 | 100 | 65 | 47 | 155 | 4.0 | 50-90 |
