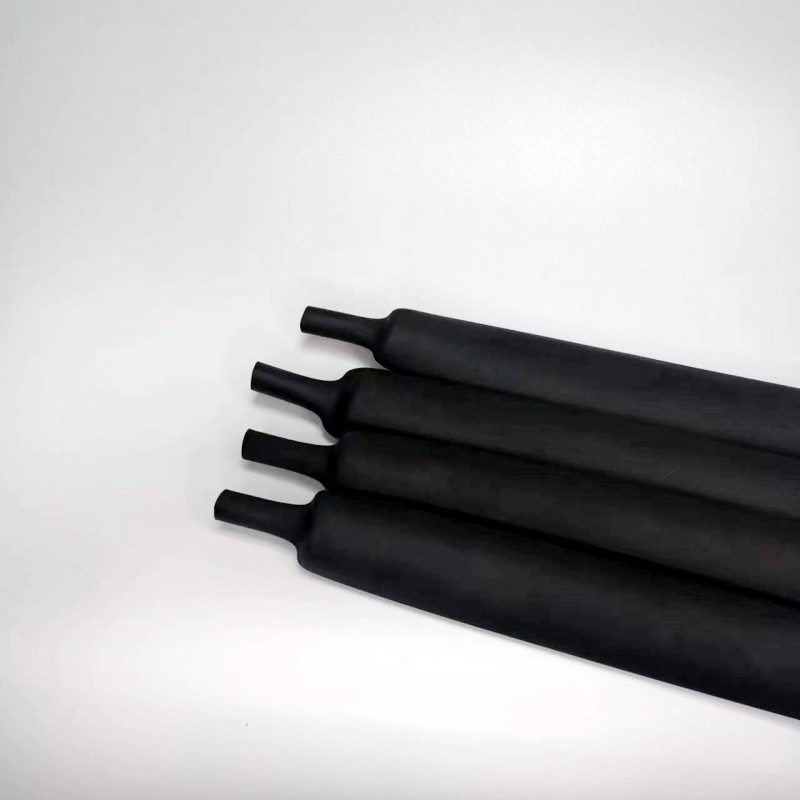

Mil-Spec double-walled rubber-insulated heat shrinkable sleeve
Product Features: Product Introduction:
Mil-Spec Double-Wall Solderbump Heat Shrink Tubing for Sale | Mil-Spec Double-Wall Solderbump Heat Shrink Tubing Brand | Guangdong Mil-Spec Double-Wall Solderbump Heat Shrink Tubing
Mil-Spec double-walled rubber-insulated heat shrinkable sleeveManufactured from high-quality polyolefins and hot-melt adhesives co-extrusion, it boasts excellent physical, chemical, and electrical properties. It can accomplish moisture-proof sealing, insulation, and mechanical protection all in one.

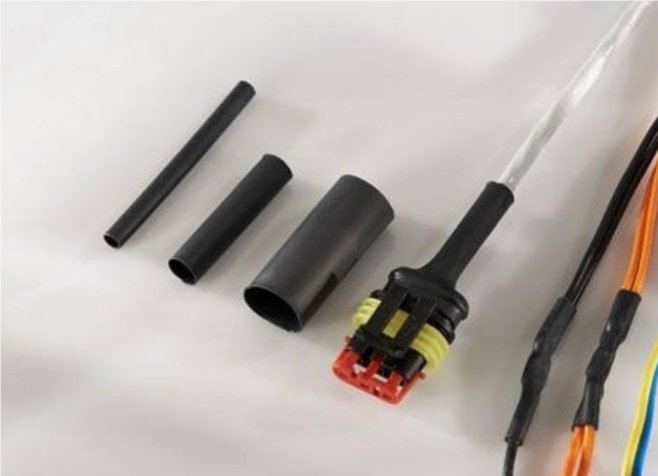

Insulation protection for cables, wiring, and connectors requiring sealed, waterproof, and moisture-proofing. The hot melt adhesive offers excellent bonding properties with plastics, rubber, and metals, and its high shrink ratio effectively shields the plug base.
Meets U.S. military specifications AMS-DTL-23053/4 Grade3Requirements can be well applied to many industries, such as aerospace, military, electronics, appliances, automotive, and communication.
High shrinkage ratio3:1、4:1
Superior hot melt adhesive and high shrink ratio provide excellent sealing
Hot melt adhesives offer excellent bonding properties with plastics, rubber, and metal.
In complianceRoHS、REACHAwaiting environmental protection regulations
Continuous Operating Temperature Range:-55℃
Lowest full shrink temperature:110℃
Meets standards
Sex | Specification requirements | Typical Value | ≤10% | ASTM D 2671 | ≤5% |
Tensile strength | 200% min. | ASTM D 638 | ≥400% | ||
Ultimate elongation after aging 175℃，168Hour) | 100baifen min. | ASTM D 638 | ≥300% | ||
Thermal shock | ASTM D 2671 | Crack-free | ASTM D 2671 | No cracks | 2500V,60sec,No penetration |
Volume resistivity1014Ω·cm min. | ASTM D 876 | Non-corrosive | |||
Flame retardant | UL224 | Through Specification Before Shrinkage (mm) After Shrinkage (mm) Standard Packaging 3:1 (inch, mm) 1/8 (3/1) 3.0 1.0 1.00 ±0.28 0.50 1.22 3/16 (4.8/1.6) 4.8 1.6 1.00 ±0.28 0.50 1.22 1/4 (6/2) 6.0 2.0 1.00 ±0.28 0.50 1.22 3/8 (9/3) 9.0 3.0 1.40 ±0.28 0.60 1.22 1/2 (12/4) 12.0 4.0 1.78 ±0.38 0.76 1.22 3/4 (18/6) 18.0 6.0 2.25 ±0.55 0.76 1.22 1 (24/8) 24.0 8.0 2.54 ±0.55 1.02 1.22 1 1/2 (39/13) 39.0 13.0 2.54 ±0.55 1.02 1.22 4:1 (mm) 4/14 14.0 1.0 1.00 ±0.28 0.50 1.22 8/28 28.0 2.0 1.00 ±0.28 0.50 1.22 12/312 312.0 3.0 1.40 ±0.28 0.60 1.22 16/416 16.0 4.0 1.78 ±0.38 0.76 1.22 24/624 24.0 6.0 2.25 ±0.55 0.76 1.22 32/832 32.0 8.0 2.54 ±0.55 1.02 1.22 52/135 52.0 13.0 2.54 ±0.55 1.02 1.22 *Wall thickness includes adhesive thickness. Color Other colors available upon request. |
