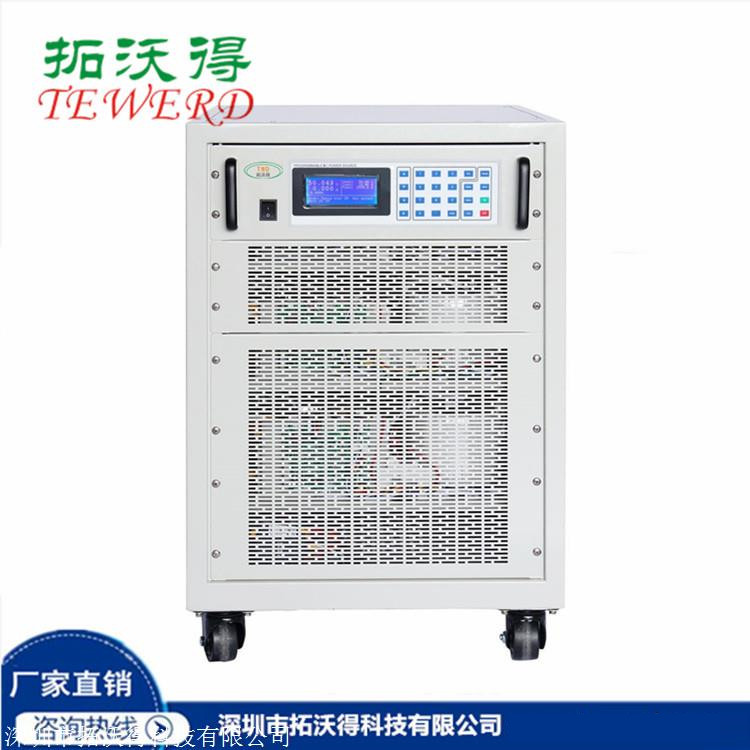

The TDC2000 series switch-mode programmable DC power supply is a high-frequency switch-mode DC power supply utilizing PWM technology. It features a modular design and employs DSP digital control technology. It offers constant voltage, constant current, and constant power output modes, capable of automatic cross-conversion while maintaining both control and protection characteristics. It ensures high precision, low ripple, and fast dynamic response to voltage and current, with an efficiency of up to 93%. Compared to traditional thyristor power supplies, the high-frequency switch-mode DC power supply boasts smaller size, lighter weight, lower ripple, higher power factor, and better stability. Particularly, the high-voltage output stability is particularly evident. The product is primarily aimed at the electronic power production, battery industry, PCB manufacturing industry, as well as communication, PLC power supply, electromechanical aging tests, DC motor testing, automatic test system integration, battery charging and simulation, hybrid electric vehicle and photovoltaic inverter testing and research units, and laboratories requiring high-precision DC power supplies. It is used to replace imported medium to high-power DC power supply products.

Product Features

◇ Utilizes high-speed DSP for PID calculations, directly outputs PWM, modular design, high power density, compact size, significantly reduces failure rate.

◇ The control circuit employs a high-speed CPU with high voltage stability and minimal ripple.

◇ Utilizes a 16-bit high-speed ADC for rapid and accurate measurement of voltage and current values;

◇ Features constant pressure, constant current, and constant power output modes, capable of automatic cross transformation, maintaining a balance between control and protection.

◇ Features overvoltage, overcurrent, overtemperature, and short-circuit protection. In the system, overvoltage (OVP) and overcurrent (OCP) can be set, and the values can be modified.

◇ Features 9 memory groups, allowing for the setting of commonly used parameters (voltage, current) for easy recall during use. It can execute 30 different voltage, current, power, rise time, and operating time settings at once, and can perform a continuous loop test up to 999,999 times. Operating time can be set to 1ms.

◇ Offer embedded intelligent PC-based monitoring systems with RS232, (RS485) communication interfaces; analog control.

Digital keypad for voltage, current, and time settings

◇ Features line voltage drop compensation function;

Input/Output Isolation

Support for multi-string and parallel connections; (optional)

◇ Analog Signal: Selectable analog output signal with a range of 0 ~ 5V, 0 ~ 10V, or 4 ~ 20mA; Power output signal reading (optional)

◇Polarity Switching: Output positive and negative polarity switching with customizable timing (optional)

Constant Voltage and Constant Current Switching Instructions: Under rated power, voltage, and current output, the desired settings can be freely combined; the output modes are Constant Voltage (CV) and Constant Current (CC), depending on the power supply's output voltage, the set current value, and the size of the load resistance. As shown in the figure: Curve 1 and Curve represent loads with different resistances. When Curve 1 intersects with Iset, the power supply operates in CC mode. When Curve 2 intersects with Vset, the power supply operates in CV mode.

You can determine the load's status through a simple calculation:

Here, Vset = the set voltage value, Iset = the set current value.

Rset = Vset / Iset;

If we have an actual load value RL = Vo/Io,

When RL > Rset, the power supply operates in constant voltage mode.

When RL < Rset, the power supply operates in constant current mode.

Product Application

LED, energy-saving lamp, and other lighting testing and aging

Switching Power Supply, Power Adaptor

Photovoltaic, inverter testing and aging

Electric vehicle motors, controllers, DC motor testing, and aging

Capacitors, resistors, relays, transistors, sensors, and other electronic components

Electrolytic, electroplating, corrosion aluminum foil processing, etc. LCD screens, touch screens, and other displays

Semiconductor Testing Equipment

DC/DC, DC/AC Testing

Switch/Connector Testing

MOCVD Power Supply

Passive Component Testing

Electroplating, Sputtering, Surface Coating

Chemical Treatment

Water Treatment

Heat Treatment

Battery Charging and Discharging Test

Automotive and electric vehicle electrical components testing

LED Test Power Supply

◇ Lighting Equipment Testing

Telecommunications and IT Industry

Automated Test Equipment (ATE)

Factory Automation

Quality Inspection

Line Power Supply
