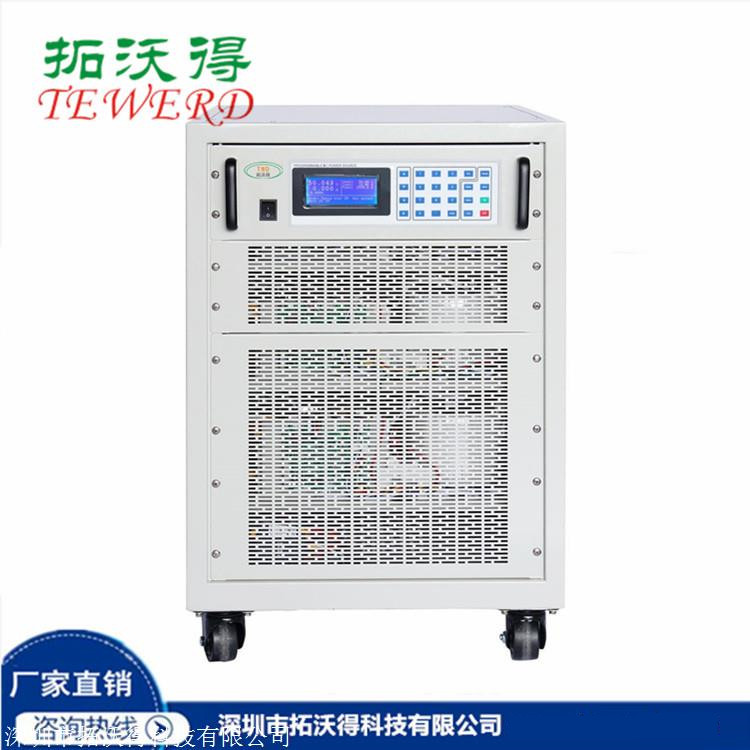

The TDC2000 series of programmable DC power supplies are high-frequency switching DC power supplies using PWM technology, featuring a modular design and DSP digital control technology. They offer constant voltage, constant current, and constant power output modes, capable of automatic crossover transformation while maintaining both control and protection characteristics. This ensures high precision, low ripple, and fast dynamic response to voltage and current, with an efficiency of up to 93%. Compared to traditional SCR power supplies, these high-frequency switching DC power supplies have advantages such as smaller size, lighter weight, lower ripple, higher power factor, and better stability, especially evident in the stability of high-voltage output. The product is primarily aimed at the electronic power production, battery industry, PCB manufacturing industry, as well as communication, PLC power supply, electromechanical aging tests, DC motor testing, automated test system integration, battery charging and simulation, hybrid electric vehicle and photovoltaic inverter testing and research units, and laboratories with a demand for high-precision DC power supplies. They are used to replace imported medium and high-power DC power supply products.

Product Features

◇ Utilizes high-speed DSP for PID calculations, directly outputs PWM, modular design, high power density, compact size, significantly reduces failure rate.

◇ The control circuit employs a high-speed CPU with high voltage stability and low ripple.

◇ Utilizes a 16-bit high-speed ADC for rapid and accurate measurement of voltage and current values.

◇ Features constant pressure, constant current, and constant power output modes, capable of automatic crossover transformation, maintaining a balance between control and protection characteristics.

◇ Features overvoltage, overcurrent, overtemperature, and short-circuit protection. In the system, overvoltage (OVP) and overcurrent (OCP) can be set, and values can be modified.

◇ Features 9 memory groups, allowing for the setting of commonly used parameters (voltage, current) for easy access during use. It can execute 30 different voltage, current, power, rise time, and run time settings at once, and can perform a continuous cycle test up to 999,999 times. The run time can be set to 1ms.

◇ Offer embedded intelligent PC-based monitoring systems with RS232, (RS485) communication interfaces; analog control.

Digital keypad for voltage, current, and time settings

◇ Features line voltage drop compensation function;

Input/Output Isolation

◇ Supports multi-unit series and parallel connections; (optional)

◇ Analog Signal: Optional analog output signal of 0 ~ 5V, 0 ~ 10V, or 4 ~ 20mA; optional to read power output signal.

◇ Polarization Switch: Output positive and negative polarity switching with customizable time change (optional)

Constant Voltage (CV) to Constant Current (CC) Switching Instructions: Under rated power, voltage, and current output, the desired settings can be freely combined; the output mode is either Constant Voltage (CV) or Constant Current (CC), depending on the power supply's output voltage, the set current value, and the size of the load resistance. As shown in the diagram: Curve 1 and Curve represent loads with different resistances. When Curve 1 intersects with Iset, the power supply operates in CC mode. When Curve 2 intersects with Vset, the power supply operates in CV mode.

You can determine the load's status through a simple calculation:

Here, Vset = set voltage value, Iset = set current value.

The set load value Rset is obtained as Rset = Vset / Iset.

If we have an actual load value RL = Vo/Io,

When RL > Rset, the power supply operates in constant voltage mode.

When RL < Rset, the power supply operates in constant current mode.

Product Application

LED, energy-saving lamps, and other lighting fixtures testing and aging

Switched Power Supplies, Power Adapters

Photovoltaic, inverter testing and aging

Electric vehicle motors, controllers, DC motor testing and aging

Capacitors, resistors, relays, transistors, sensors, and other electronic components

Aluminum foil processing for electrolysis, electroplating, corrosion, etc., as well as liquid crystal displays (LCDs), touch screens, and other monitors

Semiconductor Testing Equipment

◇ DC/DC, DC/AC Testing

Switch/Connector Testing

MOCVD Power Supply

Passive Component Testing

Electroplating, Sputtering, Surface Coating

Chemical Treatment

Water Treatment

Heat Treatment

Battery charge/discharge testing

Automotive and Electric Vehicle Electrical Components Testing

LED Test Power Supply

◇ Lighting Equipment Testing

Telecommunications and IT Industry

Automated Test Equipment (ATE)

Factory Automation

◇ Quality Inspection

Line power supply
