Product Summary
Shenzhen Tuoweide Technology Co., Ltd. offers customizable AC constant current sources in various specifications.
The TCV8000 series AC constant current source utilizes SPWM high-frequency pulse width modulation, with IGBT achieving the output. It can modulate the output current and frequency, offering fast response and high constant current accuracy, ensuring long-term stable operation. Additionally, it can overcome current changes caused by fluctuations in grid voltage, changes in circuit resistance, and product internal resistance, unaffected by human factors. It is compact, high-efficient, and has a significant advantage in reliability and maintenance costs compared to traditional voltage regulators. It is mainly used in specific product current thermal effect testing and applications, such as circuit breakers, fuses, thermal relays, magnetic starters, and other protective switches, as well as various transformers that require setting and testing of rated current, operating current, and short-circuit current thermal effects. It is also used by low-voltage electrical appliance manufacturing enterprises, electrical testing institutions, electrical research units, and university training bases. It includes test and verification equipment for time-delay characteristics of molded-case circuit breakers, instantaneous characteristics of molded-case circuit breakers, and instantaneous characteristics of small circuit breakers, as well as lean production inspection lines.
Product Features
◇ Constant current, adjustable range: Continuous adjustment from 0 to rated value.
◇ Pressure-tight; pressure adjustment range: continuously adjustable from 0 to rated value.
Variable frequency, frequency adjustment range: 47Hz-63Hz adjustable, fixed steps at 50Hz, 60Hz, 100Hz, 120Hz, 200Hz, 240Hz, 400Hz.
◇ During constant current or constant voltage operation, it can automatically switch, maintaining both control and protection characteristics.
◇Offer measurements of root mean square voltage, root mean square current, active power, frequency, etc.
◇ Protection Modes: Overvoltage, overcurrent, overload, short circuit, current limiting, etc.
Input/Output Isolation
Guangzhou Exchange Constant Current Source - TCV8000 Programmable AC Constant Current Source, Tuowode Manufacturer
◇ Circuit Breakers, Contactors, Transformers
Corrosion of electrolyte in Wuhan's AC Constant Current Source - TCV8000 Programmable AC Constant Current Source from Tuowode Manufacturer
Electrical Testing Institution
◇ Mechanical Switches, Electronic Switches
Low-voltage electrical appliance manufacturing enterprise
◇Current thermal effect tests for specific products, mainly used for detecting thermal relays, molded case circuit breakers, miniature circuit breakers, and those requiring settings for rated current, operating current, and short-circuit protection current.
Product Specifications

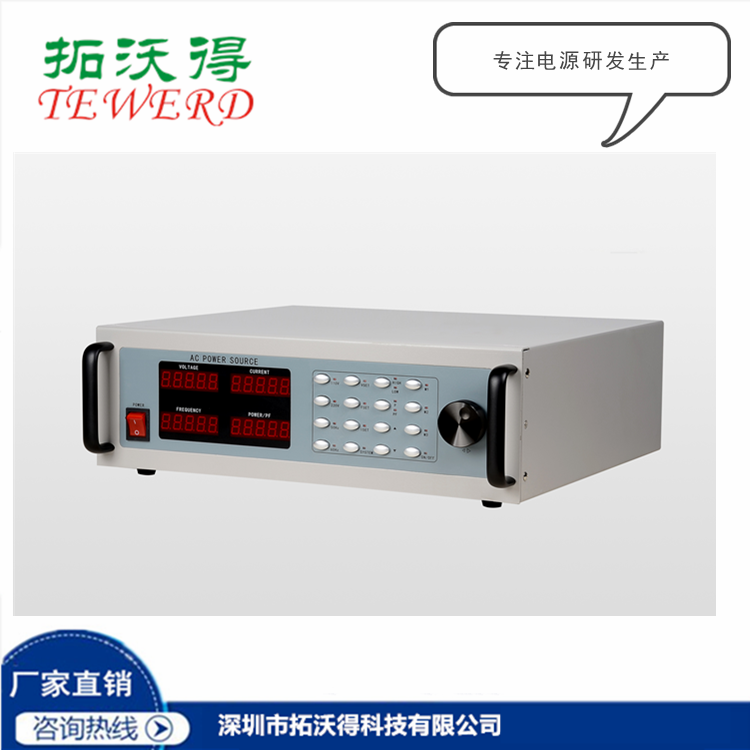

Wuhan TuoWoDe Manufacturer's TCV8000 Programmable AC Constant Current Source

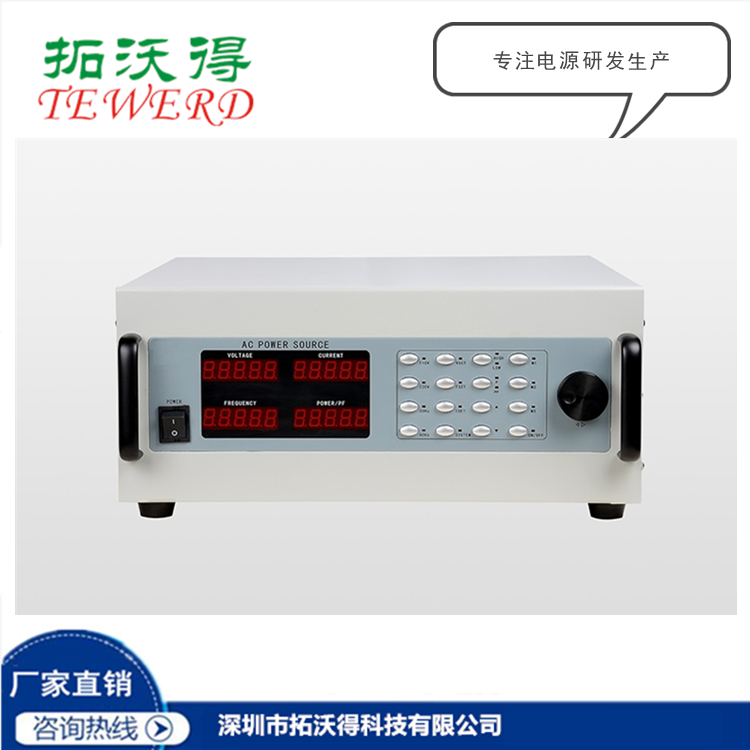

Shenzhen Tuowode Manufacturer Discusses AC Constant Current Source - TCV8000 AC Constant Current Source, Constant Voltage Constant Current Source Factory

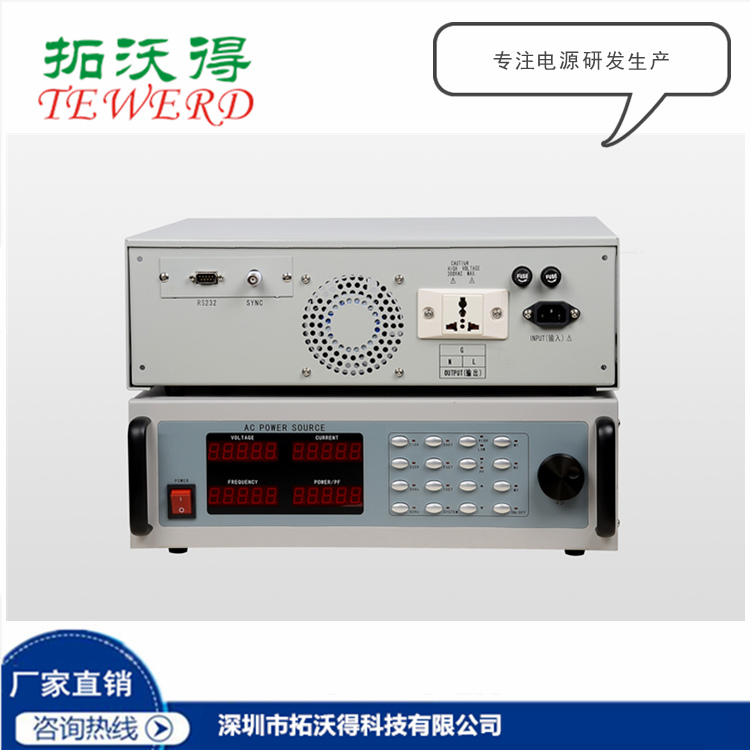

High-Precision AC Constant-Current Source - Programmable AC Constant-Current Source by Tuowode Manufacturer
10V 200A AC Constant Current Source - Custom Programmable AC Constant Current Source by Tuowode Manufacturer
| Model | TCV8000 | TCV8000 | TCV8000 | TCV8000 | TCV8000 | TCV8000 | TCV8000 | TCV8015S | TCV8030S | |
| Capacity | 500 VA | 1 KVA | 2 KVA | 3 KVA | 5 KVA | 10 KVA | 10 KVA | 15 KVA | 30 KVA | |
| Manufacturing Process | SPWM (Sinusoidal Pulse Width Modulation) | |||||||||
| Input | Number of Phases | 1φ2W with PE, Single-phase Two-wire plus Ground Wire | 3φ4W+PE, 3-phase 4-wire plus earth wire | |||||||
| Voltage | 220 V±10 % | 380V±15% | ||||||||
| Frequency | 47 Hz – 63 Hz | |||||||||
| Output | Number of Phases | 1φ2W + PE Single-phase Two-Wire + Ground Wire | 3φ4W with PE, 3-phase 4-wire plus earth wire | |||||||
| Frequency | 47-63 Hz adjustable (fixed steps at 50Hz, 60Hz, 100Hz, 120Hz, 200Hz, 240Hz, 400Hz) | |||||||||
| Voltage | Voltage | |||||||||
| 10VAC | 0-50A | 0-100A | 0-200A | 0-300A | 0-500A | 0-1000A | 0-334A | 0-500A | 0-1000A | |
| 30VAC | 0-17A | 0-34A | 0-68A | 0-102A | 0-170A | 0-340A | 0-110A | 0-170A | 0-340A | |
| 100VAC | 0-5A | 0-10A | 0-20A | 0-30A | 0-50A | 0-100A | 0-34A | 0-50A | 0-100A | |
| 300VAC | 0-1.7A | 0-3.4A | 0-6.8A | 0-10.2A | 0-17A | 0-34A | 0-11A | 0-17A | 0-34A | |
| LED Display | Voltage Vrms, Current Arms, Frequency Fre, Power Wattage | |||||||||
| Linear Regulation of Power Supply | 0 . 1 % | |||||||||
| Load Regulation | 1 % | |||||||||
| Waveform Distortionnic THD | 2% (Pure resistive load) | |||||||||
| Frequency Stability | 0 . 01 % | |||||||||
| Voltage Resolution | 0 . 1 V | |||||||||
| Frequency Resolution | 0 . 01 Hz | |||||||||
| Current Resolution | Output Io < 10 A: Resolution 0.001 A; Output 100 A > Io ≥ 10 A: Resolution 0.01 A; Output 1000 A > Io ≥ 100 A: Resolution 0.1 A; Output Io ≥ 1000 A: Resolution 1 A; | |||||||||
| Measurement | Voltage | 0 . 5 % FS+ 5 dgt | ||||||||
| Current | 0 . 5 % FS+ 5 dgt | |||||||||
| Wattage | 0 . 5 % FS+ 5 dgt | |||||||||
| Frequency | 0 . 01 % FS+ 5 dgt | |||||||||
| Set specifications | Voltage | 1 % FS | ||||||||
| Frequency: Current | 0 . 1 % FS | |||||||||
| Flow Rate Setting I-LIM Set | O-Max Current | |||||||||
| Protection | Over Current, Over Temp, Over Load, Short Circuit | |||||||||
| Cooling Method | Forced fan cooling | |||||||||
| Weight (Kg) | 15 | 20 | 30 | 35 | 50 | 80 | 80 | 120 | 300 | |
| Volume: W x H x D (mm) | 430×133×370 | 430×177×460 | 430×430 ×450
| 430×765 ×550
| 430×765×550 | 610×1030 ×1050
| ||||
| Operating Environment | 0 – 40℃ (Outdoor -20℃ – 50℃ upon customization) 20-90%RH Beijing Tuowode AC Constant Current Source - TCV8000 Programmable AC Constant Current Source Manufacturer Direct Supply
| |||||||||
