Xiamen Rongchang Mold Training is a comprehensive mold training company specializing in mold design, CNC programming, mold flow analysis, and product design. Located in Tong'an Industrial Zone, one of the Xiamen mold production bases, it is conveniently connected to the Xike Industrial Zone and the Chengdong Industrial Zone. It is an ideal place for learning and employment.

Factory instructors personally guide trainees through teaching that adheres to pure corporate standards, following the actual workflow of the company's R&D department in a practical, hands-on manner. Trainees can participate in external design projects of the company, achieving both learning and experience in one step, and are ready for employment upon graduation. Lifetime technical support is provided. Real-world case studies are presented, with one-on-one tutoring. Programs developed by trainees are reviewed by instructors before being scheduled for machine processing to validate program and process rationality. Practical teaching, not just theoretical discussions!

Course Overview

Numerical Control Programming:

UG programming involves the use of Siemens' professional 3D software NXUG to create digital programs for CNC machine tools. CNC machines cannot operate without programs. Professionals need to utilize specialized software tools to write programs based on the product's shape. UG programming refers to the process of programming CNC machines.

Below is an introduction to our UG Programming Syllabus:

I. Basic Course:

1. UG Sketch Example Explanation

2. Basic UG Modeling Commands

3. UG Curve Application

4. UG Solid Modeling

5. UG Face Milling Technique

6. Product Example Explanation

7. UG Machining Module and Engineering Drawing Explanation

8. Assembly and Automatic Molding

Section 2: Basic Applications of UG Machining Module

1. Face Milling: Know the application of face milling, cutting method, and the setting of main parameters

2. Flat Milling: Know the application scenarios, classifications, cutting methods for different workpieces, setting of main parameters, and mastery

3. Cavity Milling: Commonly used for roughing out workpieces, learn to choose tools reasonably when the workpieces vary in size. Cavity milling generally uses a following-the-perimeter cutting method; setting and mastering the main parameters.

4. Re-clearing corners with the cavity milling: Primarily for processing the excess material left after roughing with the top tool; setting and mastering the main parameters.

5. Constant Contour Milling: Often used for precise finishing of workpiece sides. When selecting the tool, choose a reasonable one based on the size of the R-angle at the bottom of the workpiece. Main parameter settings and mastery. Example explanation combined with topic exercises.

6. Curved Face Milling: Often used for precision finishing of workpiece surfaces, typically using ball-end mills for curved face milling. Focus on setting and mastering the main parameters. Example problems explained and combined with practical exercises.

7. Hole Machining: Applications of G81 and G83.

Section 3: Factory Example:

1. Electrode Processing: Through multiple electrode instance demonstrations and practice, master the electrode processing and fixture procedures. Pay attention to the key points for special electrode processing, such as ultra-high and ultra-thin electrodes.

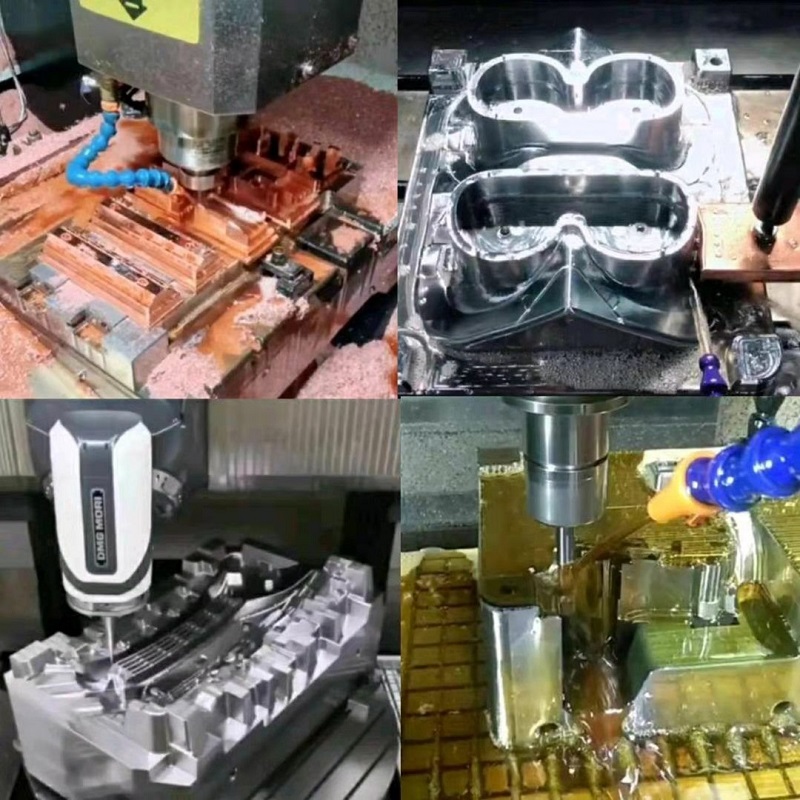

2. Mold Frame Machining: Proficient in mold frame machining processes, experienced in handling large-scale mold frame machining.

3. Mold Core Machining: Understanding of common mold core materials, knowledge of mold heat treatment processes, control of stock allowance before heat treatment for mold cores, and precautions when machining the mating surfaces of front and rear mold cores.

4. Full Mold Machining: Mastering the precautions for the full mold machining process, integrating the common mold processing flow of the factory and the processing department.

5. Product Processing: Craft and parameter settings during product processing.

Mold Design:

Capable of independently completing medium to high difficulty injection molds, metal molds, silicone molds, die casting molds... Mold quotations, demolding reports, 2D layout, 3D parting, toolpath programming, electrode dismantling, assembly drawings, part drawings. A complete set of molds follows the actual factory process flow, is proficient in full 3D parting and drafting, and is familiar with HASCO, DME, MISUMI, and other export mold design standards. Graduates can become familiar with the factory design process and achieve 2-3 years of mold design experience at the factory. The focus is on cultivating design concepts and design thinking, determining design parameters, imparting machining experience, and passing on trial molding experience...

Teaching Method

1. One computer per person, learn at your own pace, no time limit.

2. Mentorship, full-time tutoring, integrating with the factory, and intensive training.

3. Tailor-made teaching plans for each student, ensuring every exercise is approved by a master before passing, guaranteeing students can work independently from their first day on the job.

Target Audience

Individuals with junior or senior high school education or above; or workers in the mold and machinery industry with CNC operating, milling, lathe, and fitting skills, as well as graduates from technical schools.

【Educational Objectives】

Upon completing our course, you will be very familiar with the factory's operational procedures, possess 2-3 years of experience, and be capable of independently programming mold designs. You are qualified for positions such as mold design, mold project management, and mold business operations.

【Teaching Advantages】

Xiamen Rongchang Mold Training has been established for 10 years. Initially, it mainly handled mold design and programming outsourcing orders, collaborating with mold factories in Fujian and Guangdong provinces. It boasts extensive mold experience and a wide network of contacts, enabling direct job introductions.

Xiamen Rongchang Mold Training has cultivated a large number of professional technical talents for the mold and machinery industries in recent years, many of whom have successfully started their own businesses, earning excellent reputations among the students. We also thank everyone for their trust and support. Rongchang Training will continue to strive to nurture valuable talents for enterprises and society!
