Product Description

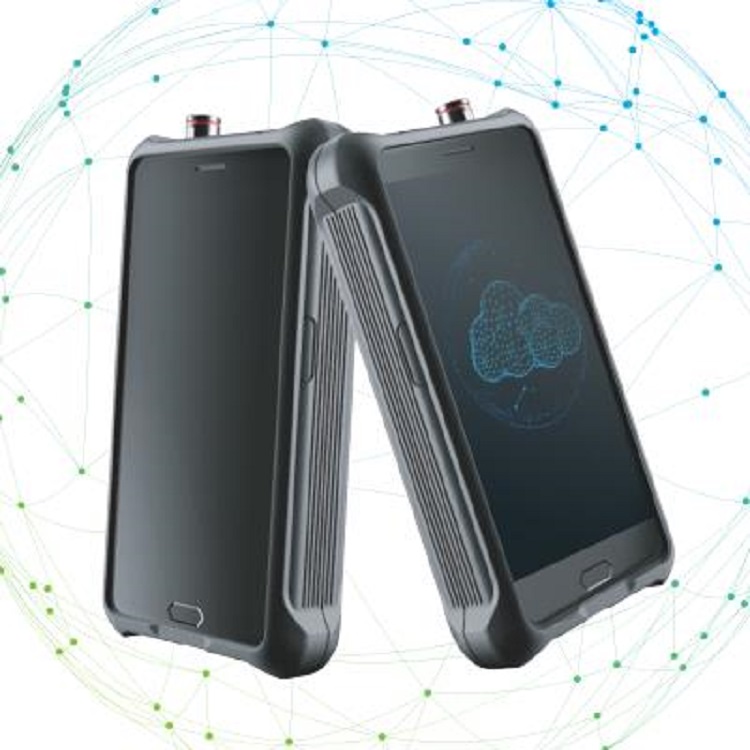

This product utilizes an advanced "cloud-network-end" architecture as its foundation, leveraging powerful cloud intelligence to break through the limitations of traditional products. It elevates the product design and user experience of portable detection terminals to a new level, addressing the shortcomings of existing market products in multiple aspects, and bringing a groundbreaking new product to the Raman detection market.

* Rapid Testing: Smart time control for detection, automatic signal-to-noise ratio determination, analysis time of 2-3 seconds

* Cloud-based AI Management Platform: Deep learning identification algorithms, intelligent analysis and control platform, multi-tenant private deployment.

Mixed Ratio Analysis: Rapid identification of mixtures, obtain composition ratios, error below 5%.

Dual Domain Isolation: Personal domain is the flagship terminal, detection domain is professional instruments, with multiple security protections.

*Application Scenarios: Hazardous Chemical Detection, Safety Analysis, Unknown Solid/Powder/Liquid Analysis

Technical Specifications

1. Laser Wavelength: 785nm ± 0.02nm

2. Resolution: 8-11cm^-1;

3. Laser Power: Continuously adjustable from 1 to 500 mW

4. Spectral Range: 200-1800cm^-1.

Battery Capacity: 5700mAh (Continuous use for 10 hours)

6. Testing Duration: <3s (Methanol, Ethanol, Acetone, etc.)

7. Network Connection: 4G/Wi-Fi/Bluetooth

8. Location: GPS

9. Screen: 5.7-inch capacitive touch screen, 2K resolution display

Camera: 8MP + 16MP

11. Volume Weight: 159*79*27.5 mm, 410 g

12. False reporting and omission rate <1%; detection limit ≤5% (Ethanol)

13. Mixed Substance Identification: 3 Types
