BAIC New Energy Charging Poles-Bull New Energy Charging Poles - Secure and Fast - New Energy Charging Poles for Collaborative Station Building:The charging桩 functions similarly toGas stationThe fuel dispensers inside can be mounted on the ground or walls, installed in public buildings (such as office buildings, malls, public parking lots, etc.) and residential community parking lots or charging stations. They can be used for various types of connectors to charge electric vehicles at different voltage levels. Charging stations typically offer both conventional and rapid charging options. Users can swipe specific charging cards on the human-machine interaction interface provided by the charging station to perform operations such as selecting charging methods, setting charging times, and printing cost data. The charging station display can show data such as the amount of charge, cost, and charging time.

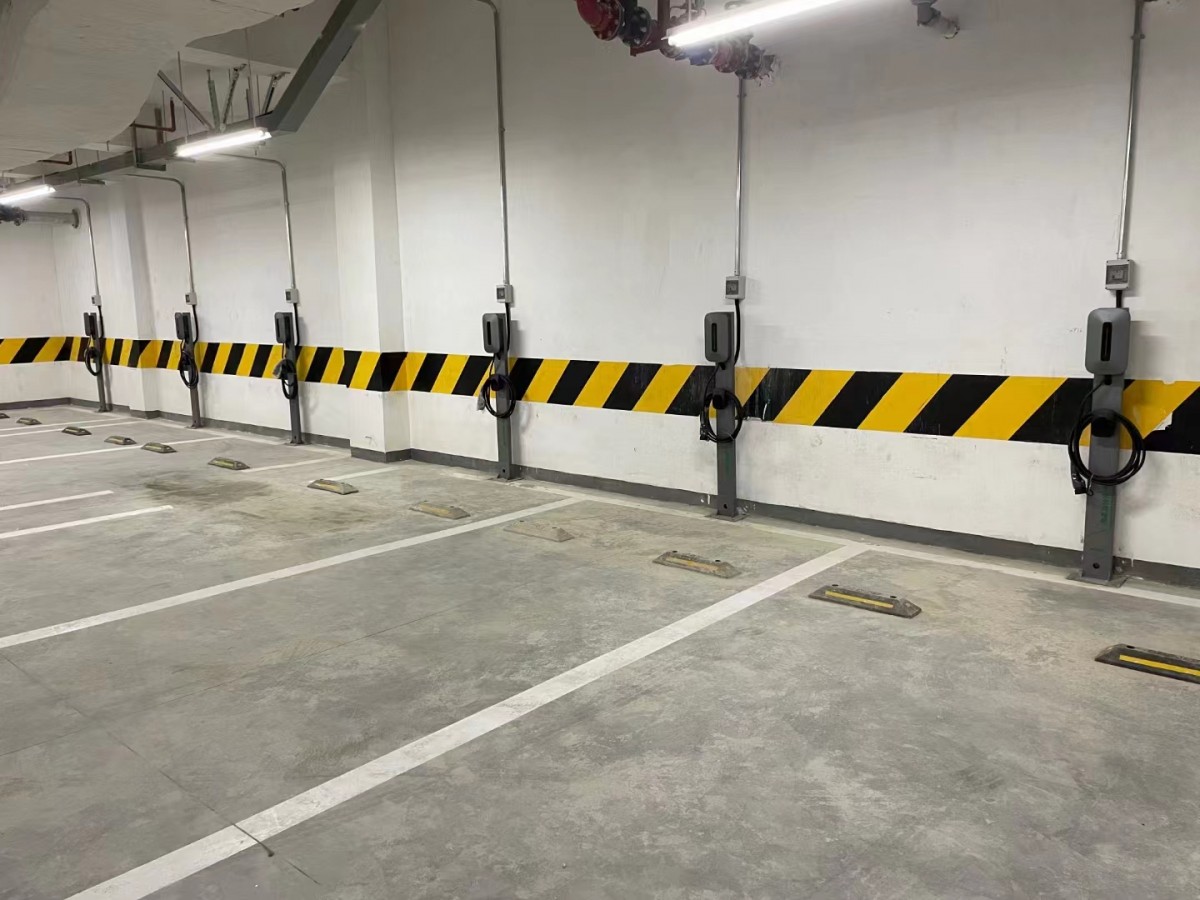

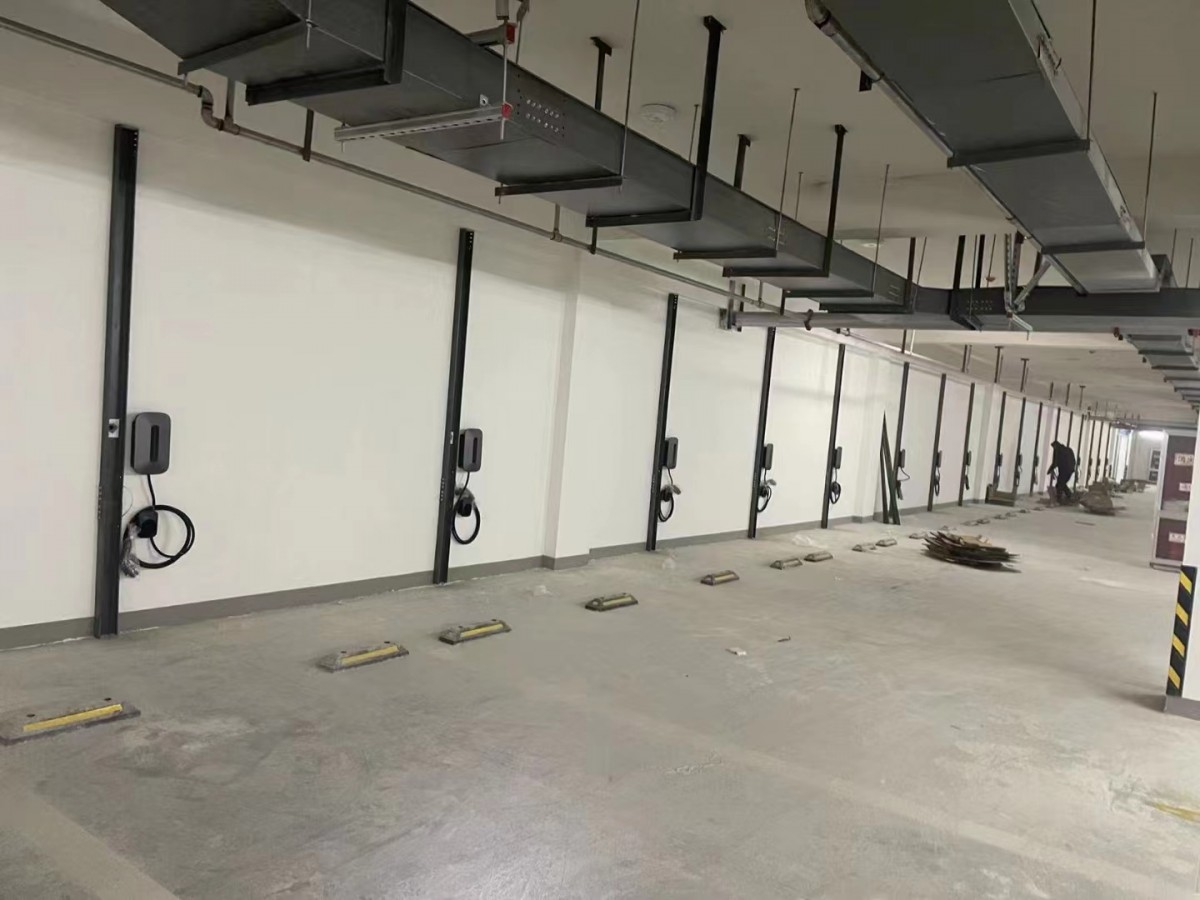

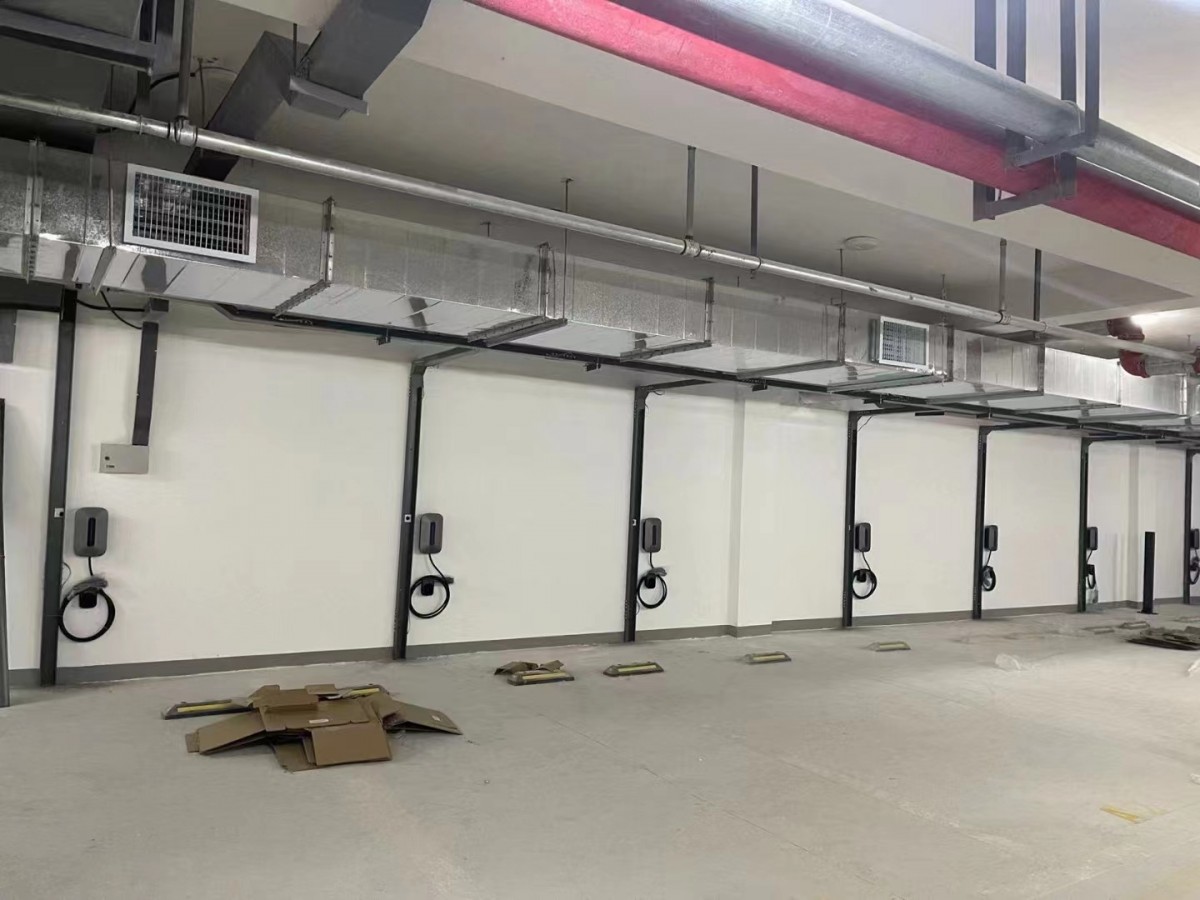

BAIC New Energy Charging Poles-Bull New Energy Charging Poles: Safe & Fast - Collaborative Site Building for New Energy Charging Poles:By installation location, they can be categorized into public charging stations andPersonalCharging stations. Public charging stations are installed at public parking lots (garages) in conjunction with parking spaces, providing public charging services for social vehicles. PersonalThe charging桩 is a facility owned by the construction unit (company) for their own parking lot (garage), intended for use by the unit's (company's) internal personnel. Self-use charging stations are installed in personal parking spaces (garages) to provide charging services for private users. Charging stations are typically integrated with parking lot (garage) parking spaces. The protection level of outdoor charging stations should not be lower thanIP54. Indoor charging桩 installations should have a protection level no lower than IP32.
Beiqi New Energy Charging Poles-Bull New Energy Charging Poles - Safe and Fast - Collaborative Site Construction for New Energy Charging Poles:Ground charging station power supply solution, featuring a rectifier capable of converting AC input to DC and a regulator for adjusting the DC power output.Power ConverterComposition: By inserting the wired plug into the matching socket on the electric vehicle, direct current power is supplied.Battery PackCharge it. The charger is equipped with a locking lever for easy insertion and removal of the plug, while the lever also provides a signal confirming the secure lock for safety. Through communication between the charger and the vehicle's battery management system, the power converter can adjust the DC charging power online. Additionally, the charger displays the charging voltage, current, charge amount, and cost. This is just the basic principle of the charging station; many details should be continuously improved in practical application to achieve a convenient usage solution.
